Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 15, 2016, 08:55 AM

  • B 0601A_B 0601_04152016_Manual.mp4

Date
04/15/2016
W/O
0552359
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00105
PipeID
P09173
Time
1:55 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6690
Sewer Name
B JOINT OUTFALL B - UNIT 8B
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
16
Purpose
Routine Assessment
Project
20160413MDM_JOINT_OUTFALL_B_UNIT_8B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
B 0601A
Downstream MH
B 0601
Dir. of Survey
Downstream
Length Surveyed
99.5 ft.
Total Length
99.5 ft.
Structural Index
2
Structural Quick
2C00
Structural Rating
40
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
40
Pipe schematic from manhole B 0601A to B 0601
MH: B 0601AMH: B 0601downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - MH CONN OPEN 3:000 ft. AMH - Upstream Manhole, Survey Begins - 2:20AM0 ft. MWM - Water Mark, 30 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING LAITANCE COAT UNDER MAG COAT2 ft. MGO - General Observation - MAG COAT 70% START 8:00 TO 4:0011.6 ft. MGP - General Photograph25.6 ft. MWL - Water Level, 20 %of cross sectional area25.6 ft. MWM - Water Mark, 40 %of cross sectional area58 ft. SSS - Surface Spalling, from 01 to 03 o'clock, within 8 inches of joint: YES88.1 ft. MGO - General Observation - ZOOM 11'99 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - PEELING LAITANCE COAT UNDER MAG COAT99 ft. MGO - General Observation - MAG COAT 70% FINISH99.5 ft. AMH - Downstream Manhole, Survey Ends - 2:35AM

Observation photos (6)

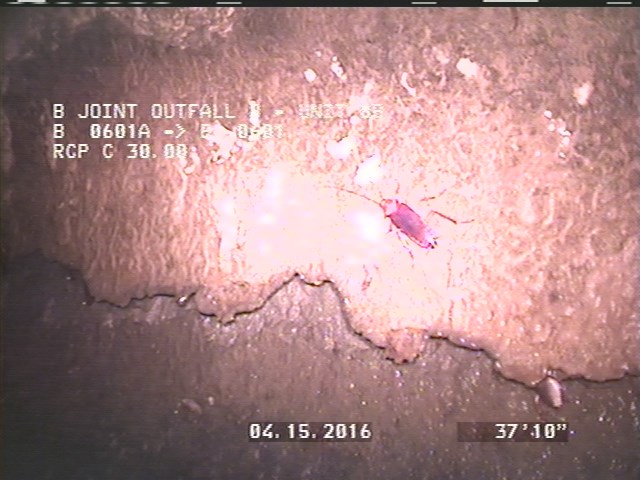

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING LAITANCE COAT UNDER MAG COAT

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - PEELING LAITANCE COAT UNDER MAG COAT

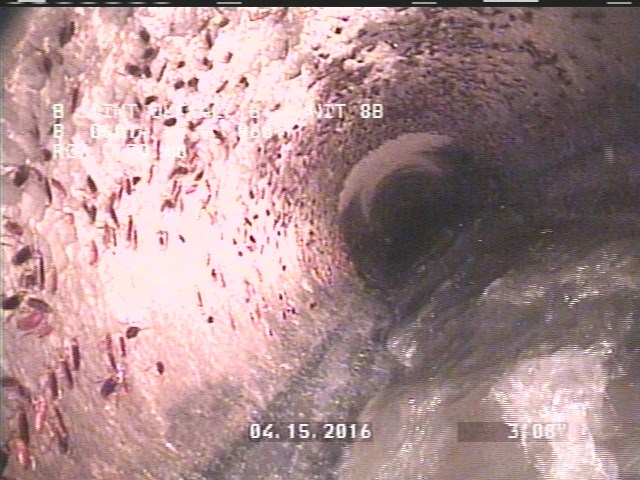

  • General Observation - MAG COAT 70% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 70% START 8:00 TO 4:00

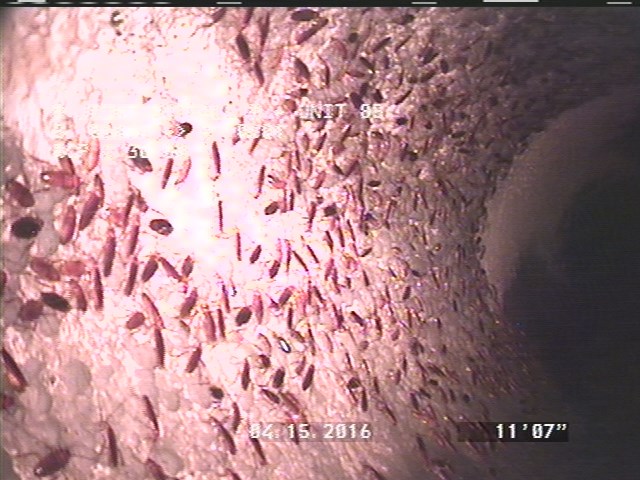

  • General Photograph

    11.6 ft. - General Photograph

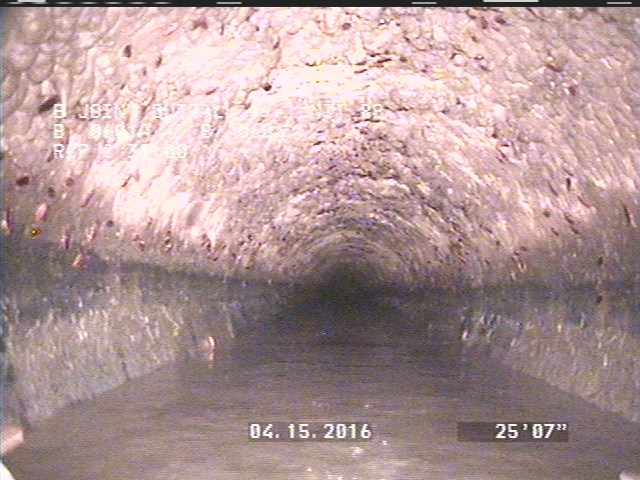

  • Water Mark, 40 %of cross sectional area

    25.6 ft. - Water Mark, 40 %of cross sectional area

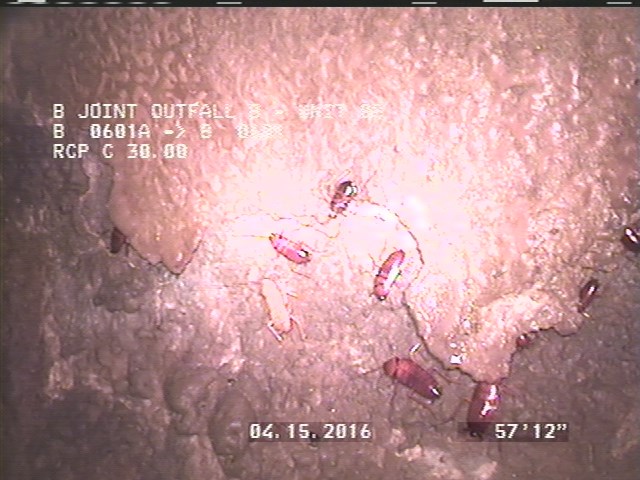

  • Surface Spalling, from 01 to 03 o'clock, within 8 inches of joint: YES

    58 ft. - Surface Spalling, from 01 to 03 o'clock, within 8 inches of joint: YES

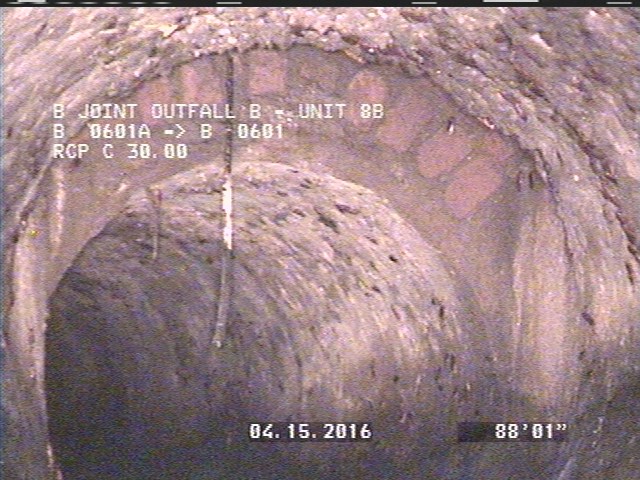

  • General Observation - ZOOM 11'

    88.1 ft. - General Observation - ZOOM 11'

All inspections of P09173Work order 0552359

Observations (14)

DistanceCodeObservation
0MWL—
99SSSPEELING LAITANCE COAT UNDER MAG COAT
2SSSPEELING LAITANCE COAT UNDER MAG COAT
0MGOMH CONN OPEN 3:00
0AMH2:20AM
99.5AMH2:35AM
58SSS—
25.6MWL—
11.6MGP—
99MGOMAG COAT 70% FINISH
88.1MGOZOOM 11'
2MGOMAG COAT 70% START 8:00 TO 4:00
25.6MWM—
0MWM—

Properties (6)

custom_field_three
PEELING LAITANCE COAT-70% MAG COAT
custom_field_two
4
customer
LACSD
datetime
2016-04-15T01:55:29-07:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
