Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 11, 2016, 09:15 AM

  • 05 1065_05 1064_04112016_Manual.mp4

Date
04/11/2016
W/O
0557603
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P06299
Time
2:15 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6684
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
20160408MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 1065
Downstream MH
05 1064
Dir. of Survey
Downstream
Length Surveyed
432.6 ft.
Total Length
432.6 ft.
Structural Index
2
Structural Quick
2A12
Structural Rating
22
O&M Index
2
O&M Quick
412Q
O&M Rating
180
Overall Index
2
Overall Quick
—
Overall Rating
202
Pipe schematic from manhole 05 1065 to 05 1064
MH: 05 1065MH: 05 1064downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:50AM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - MH CONN ACTIVE 3:000 ft. MGO - General Observation - MH CONN ACTIVE 9:002 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start38.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES38.5 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES75.5 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6" - 90% ROOTS78.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - HAIRLINE111 ft. CC - Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES111 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES124.5 ft. MGO - General Observation - 24" VCP143.7 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES164.1 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES172.4 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT190.3 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, at 07 o'clock, , within 8 inches of joint: YES - ROCKS235.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN241.2 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES295.2 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES324.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES340.6 ft. CC - Crack Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES352.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB432.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish432.6 ft. AMH - Downstream Manhole, Survey Ends - 5:20AM

Observation photos (2)

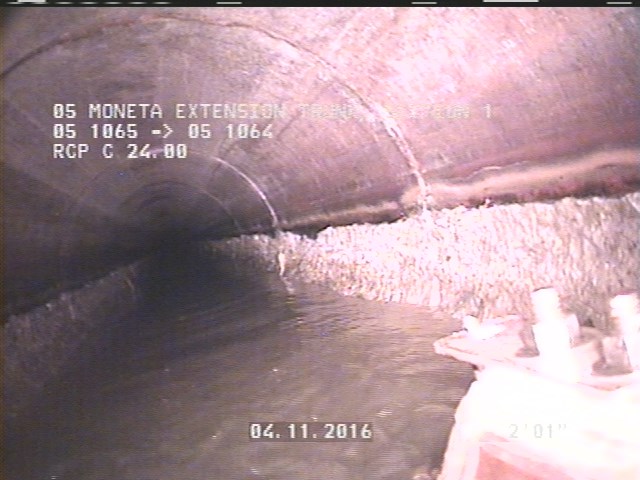

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

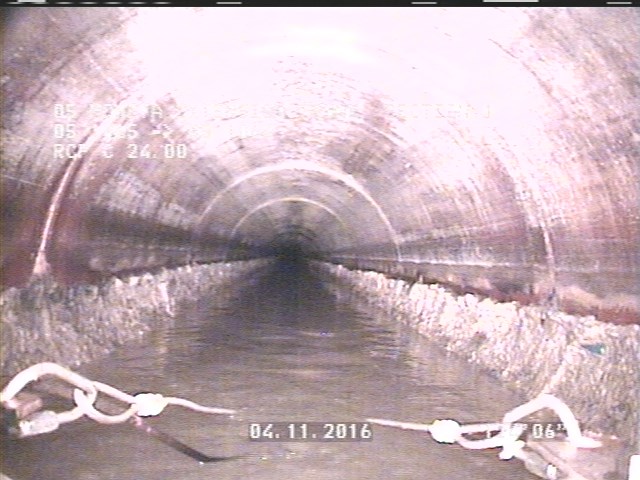

  • General Observation - 24" VCP

    124.5 ft. - General Observation - 24" VCP

All inspections of P06299Work order 0557603

Observations (25)

DistanceCodeObservation
190.3DSGVROCKS
164.1CL—
143.7CL—
172.4FCSLIGHT
78.1FCHAIRLINE
241.2CL—
124.5MGO24" VCP
2DAGS—
295.2CL—
340.6CC—
235.4TFOPEN
352.8TFCSTUB
38.5CL—
0AMH4:50AM
0MWL—
0MWM—
432.6AMH5:20AM
324.5CL—
0MGOMH CONN ACTIVE 3:00
111CC—
111CL—
38.5CL—
0MGOMH CONN ACTIVE 9:00
432.1DAGS—
75.5TFD90% ROOTS

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2016-04-11T02:15:54-07:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
