Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 11, 2016, 09:14 AM

  • 05 1066_05 1065_04112016_Manual.mp4

Date
04/11/2016
W/O
0557603
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P06300
Time
2:14 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6684
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
20160408MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 1066
Downstream MH
05 1065
Dir. of Survey
Downstream
Length Surveyed
436.3 ft.
Total Length
436.3 ft.
Structural Index
2
Structural Quick
2313
Structural Rating
9
O&M Index
2
O&M Quick
412P
O&M Rating
178
Overall Index
2
Overall Quick
—
Overall Rating
187
Pipe schematic from manhole 05 1066 to 05 1065
MH: 05 1066MH: 05 1065downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:10AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start0 ft. MWM - Water Mark, 60 %of cross sectional area25.6 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE59.8 ft. CC - Crack Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES81.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN162.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN308.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE316.2 ft. CC - Crack Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES340.5 ft. CC - Crack Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES364.7 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES364.7 ft. MGO - General Observation - 24" VCP406.1 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES410.1 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES410.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB436 ft. MGO - General Observation - MH CONN ACTIVE 3:00436 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish436 ft. MGO - General Observation - MH CONN ACTIVE 9:00436.3 ft. AMH - Downstream Manhole, Survey Ends - 4:40AM

Observation photos (2)

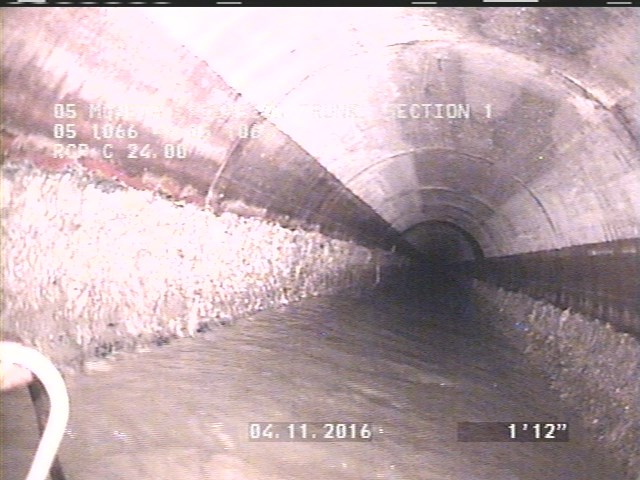

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

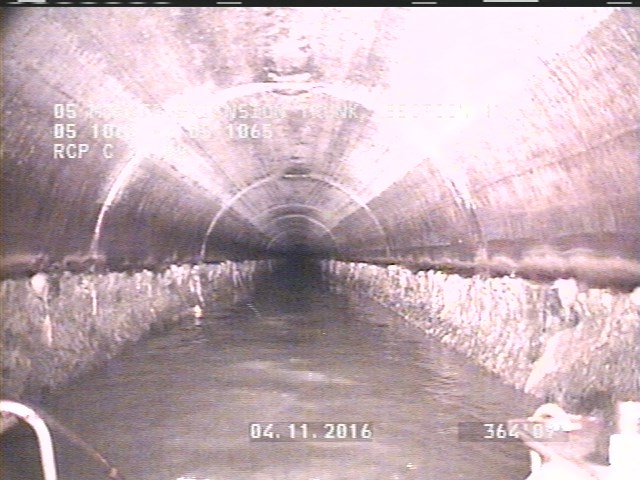

  • General Observation - 24" VCP

    364.7 ft. - General Observation - 24" VCP

All inspections of P06300Work order 0557603

Observations (20)

DistanceCodeObservation
364.7CL—
436.3AMH4:40AM
0AMH4:10AM
25.6TBACTIVE
0MWL—
436MGOMH CONN ACTIVE 3:00
308.8TFACTIVE
316.2CC—
81.6TBOPEN
59.8CC—
436DAGS—
0DAGS—
340.5CC—
410.8TFCSTUB
162.2TFOPEN
406.1CL—
0MWM—
364.7MGO24" VCP
410.1CL—
436MGOMH CONN ACTIVE 9:00

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2016-04-11T02:14:39-07:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
