Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 8, 2016, 10:16 AM

  • 05 1069_05 1068_04082016_Manual.mp4

Date
04/08/2016
W/O
0557603
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P06303
Time
3:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6681
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
20160408MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 1069
Downstream MH
05 1068
Dir. of Survey
Downstream
Length Surveyed
329.8 ft.
Total Length
329.8 ft.
Structural Index
2
Structural Quick
3127
Structural Rating
21
O&M Index
2
O&M Quick
412L
O&M Rating
136
Overall Index
2
Overall Quick
—
Overall Rating
157
Pipe schematic from manhole 05 1069 to 05 1068
MH: 05 1069MH: 05 1068downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - MH CONN OPEN 8:000 ft. AMH - Upstream Manhole, Survey Begins - 3:45AM0 ft. MGO - General Observation - MH CONN ACTIVE 3:000 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MGO - General Observation - MH CONN OPEN 9:002 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start45.9 ft. MGO - General Observation - 24" VCP46.7 ft. CC - Crack Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES96.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN114.5 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES139.9 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - SLIGHT184.2 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE192.8 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - HAIRLINE193.9 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES193.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE204.3 ft. CC - Crack Circumferential, from 10 to 11 o'clock, within 8 inches of joint: YES211.9 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES237.3 ft. CC - Crack Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES265.1 ft. CC - Crack Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES265.1 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - HAIRLINE274 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES304.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE329.1 ft. MGO - General Observation - MH CONN STUB 3:00329.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish329.8 ft. AMH - Downstream Manhole, Survey Ends - 4:15AM

Observation photos (2)

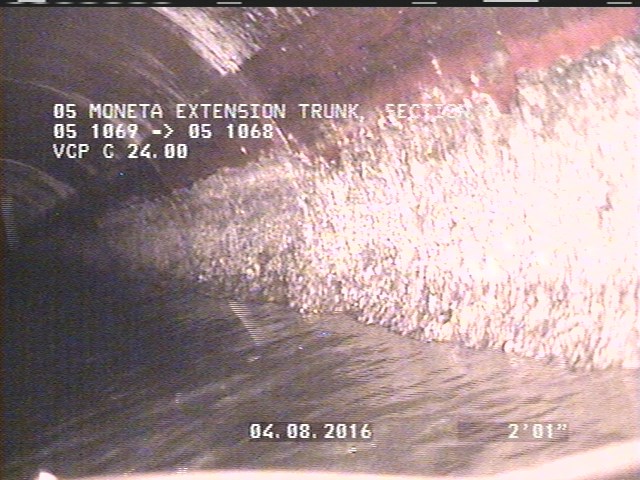

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

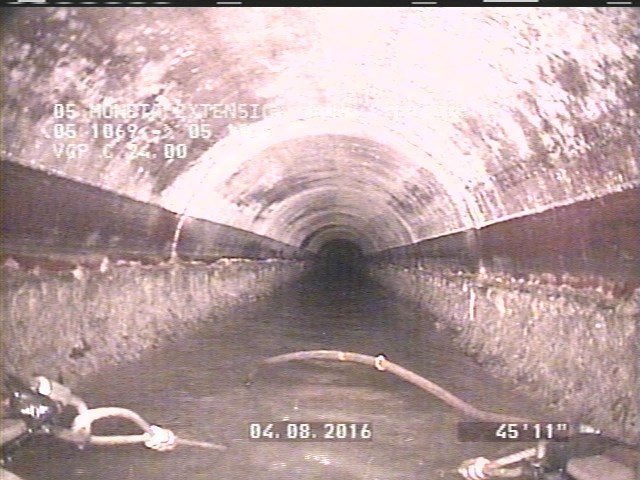

  • General Observation - 24" VCP

    45.9 ft. - General Observation - 24" VCP

All inspections of P06303Work order 0557603

Observations (26)

DistanceCodeObservation
0MWL—
2DAGS—
304.1FCHAIRLINE
265.1CC—
204.3CC—
192.8FCHAIRLINE
265.1FLHAIRLINE
184.2FCHAIRLINE
96.6TFOPEN
274CL—
46.7CC—
329.1MGOMH CONN STUB 3:00
45.9MGO24" VCP
0MGOMH CONN OPEN 8:00
211.9CL—
329.8AMH4:15AM
0AMH3:45AM
0MGOMH CONN ACTIVE 3:00
0MWM—
193.9DAGS—
139.9FCSLIGHT
0MGOMH CONN OPEN 9:00
329.1DAGS—
237.3CC—
193.9TFACTIVE
114.5CL—

Properties (6)

custom_field_three
1 SLIGHT FRACTURE
custom_field_two
4
customer
LACSD
datetime
2016-04-08T03:16:44-07:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
