Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 7, 2016, 08:15 AM

  • 05 0037_05 0036_04072016_Manual.mp4

Date
04/07/2016
W/O
0552270
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00431
PipeID
P05322
Time
1:15 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6681
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
TORANCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
24
Purpose
Routine Assessment
Project
20160406MDM_DISTRICT_5_MAIN_TRUNK
Material
RCP-CTL
Shape
Circular
Height
48 in.
Upstream MH
05 0037
Downstream MH
05 0036
Dir. of Survey
Downstream
Length Surveyed
445.6 ft.
Total Length
445.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
412Q
O&M Rating
184
Overall Index
2
Overall Quick
—
Overall Rating
184
Pipe schematic from manhole 05 0037 to 05 0036
MH: 05 0037MH: 05 0036downstream0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MGO - General Observation - HOT OILY FLOW STEAM PROBLEM FOR CAMERA0 ft. AMH - Upstream Manhole, Survey Begins - 2:50AM2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start176.1 ft. MGO - General Observation - 48" RCP-CTL FR POLY337.4 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO445 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish445.6 ft. AMH - Downstream Manhole, Survey Ends - 3:15AM

Observation photos (4)

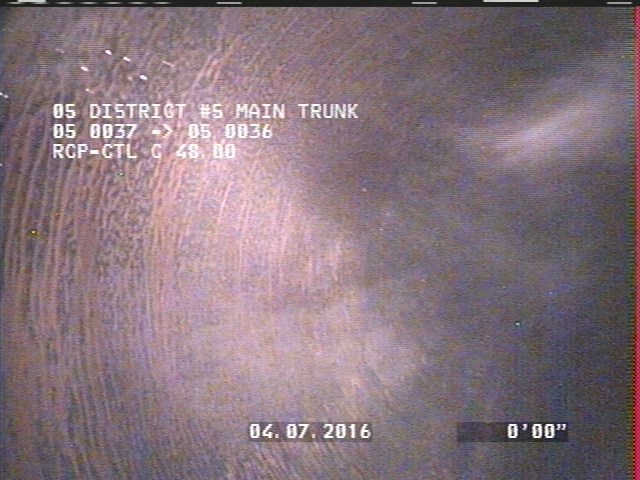

  • General Observation - HOT OILY FLOW STEAM PROBLEM FOR CAMERA

    0 ft. - General Observation - HOT OILY FLOW STEAM PROBLEM FOR CAMERA

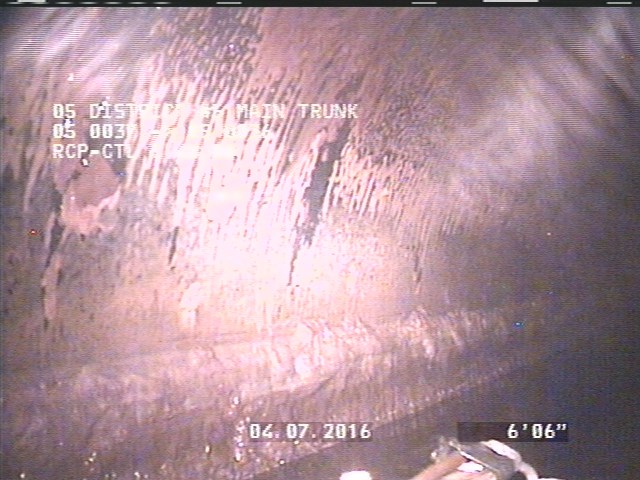

  • Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

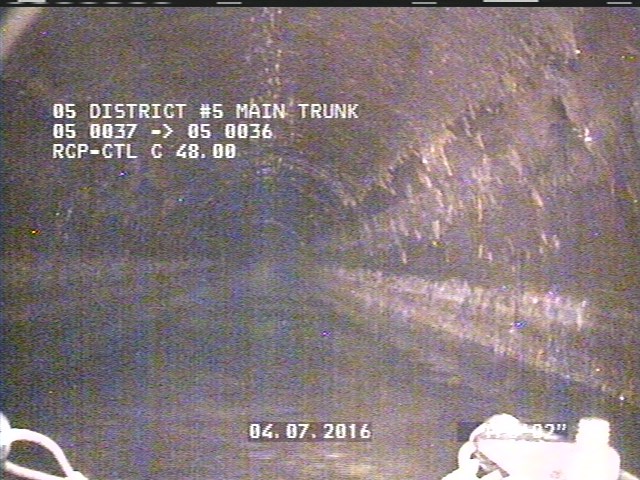

  • General Observation - 48" RCP-CTL FR POLY

    176.1 ft. - General Observation - 48" RCP-CTL FR POLY

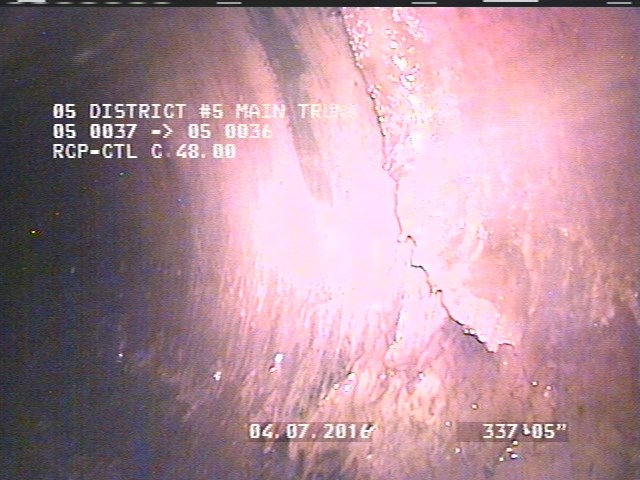

  • Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO

    337.4 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO

All inspections of P05322Work order 0552270

Observations (9)

DistanceCodeObservation
0MWL—
0MWM—
445DAGS—
2DAGS—
445.6AMH3:15AM
176.1MGO48" RCP-CTL FR POLY
0MGOHOT OILY FLOW STEAM PROBLEM FOR CAMERA
0AMH2:50AM
337.4DAGS—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2016-04-07T01:15:35-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
