Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 5, 2016, 09:16 AM

  • 05 1072_05 1071_04052016_Manual.mp4

Date
04/05/2016
W/O
0557603
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00488
PipeID
P06306
Time
2:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6677
Sewer Name
05 MONETA EXTENSION TRUNK, SECTION 1
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
20160405MDM_MONETA_EXTENSION_TRUNK_SECTION_1
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
05 1072
Downstream MH
05 1071
Dir. of Survey
Downstream
Length Surveyed
194.7 ft.
Total Length
194.7 ft.
Structural Index
1
Structural Quick
2112
Structural Rating
4
O&M Index
2
O&M Quick
412G
O&M Rating
80
Overall Index
2
Overall Quick
—
Overall Rating
84
Pipe schematic from manhole 05 1072 to 05 1071
MH: 05 1072MH: 05 1071downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - MH CONN ACTIVE 8:000 ft. MGO - General Observation - MH CONN STUB 9:002 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start25.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB98.1 ft. MGO - General Observation - 24" VCP125.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - STUB159.6 ft. CC - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES179.4 ft. CC - Crack Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES187.5 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES194.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish194.4 ft. MGO - General Observation - MH CONN ACTIVE 9:00194.7 ft. AMH - Downstream Manhole, Survey Ends - 5:30AM

Observation photos (2)

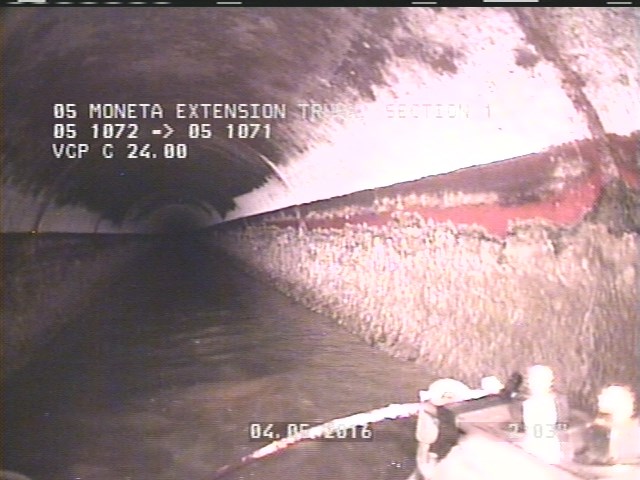

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

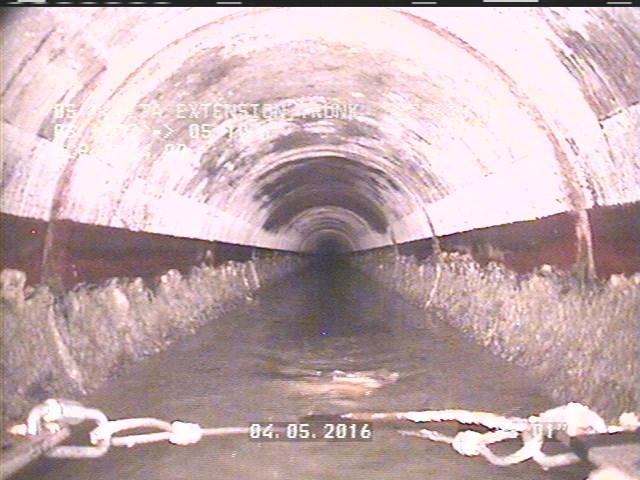

  • General Observation - 24" VCP

    98.1 ft. - General Observation - 24" VCP

All inspections of P06306Work order 0557603

Observations (15)

DistanceCodeObservation
125.4TFCSTUB
0MWL—
0AMH5:10AM
0MWM—
25.3TFCSTUB
98.1MGO24" VCP
0MGOMH CONN ACTIVE 8:00
187.5CL—
179.4CC—
159.6CC—
194.4DAGS—
194.7AMH5:30AM
2DAGS—
0MGOMH CONN STUB 9:00
194.4MGOMH CONN ACTIVE 9:00

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2016-04-05T02:16:32-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
