Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 26, 2017, 11:35 PM

  • 17 0023_17 0022 _02072017_234050.mp4

Date
01/26/2017
W/O
618954
Weather
Light Rain
Operator/Surveyor
JUAN B
Sewer ID
Z00668
PipeID
P13747
Time
3:35 PM
Certificate
U-7152-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4234
Sewer Name
17 DISTRICT #17 MAIN TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 17
Page No.
06
Purpose
Routine Assessment
Project
WO_618954_TV17003_FEB2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
17 0023
Downstream MH
17 0022
Dir. of Survey
Downstream
Length Surveyed
362.1 ft.
Total Length
362.1 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
213
O&M Index
2
O&M Quick
322N
O&M Rating
153
Overall Index
2
Overall Quick
—
Overall Rating
366
Pipe schematic from manhole 17 0023 to 17 0022
MH: 17 0023MH: 17 0022downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 17 00230 ft. MWM - Water Mark, 15 %of cross sectional area2.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start15.2 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 4"43.2 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 4"98.1 ft. RML - Roots Medium Lateral, at 03 o'clock, 15 %, within 8 inches of joint: NO98.8 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 4"159.1 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"182.6 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 4"211.1 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"234.7 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 4"254.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"290.3 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"305.9 ft. RML - Roots Medium Lateral, at 09 o'clock, 10 %, within 8 inches of joint: NO306.2 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 4"330.2 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 4"332.5 ft. RFJ - Roots Fine Joint, from 12 to 05 o'clock, within 8 inches of joint: YESR355.6 ft. TBC - Tap Break-In Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"362.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish362.1 ft. AMH - Downstream Manhole, Survey Ends - 17 0022362.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (2)

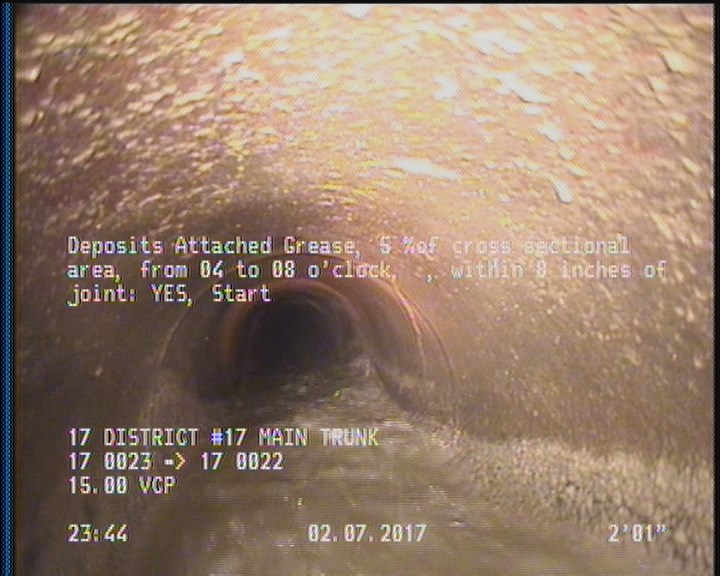

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

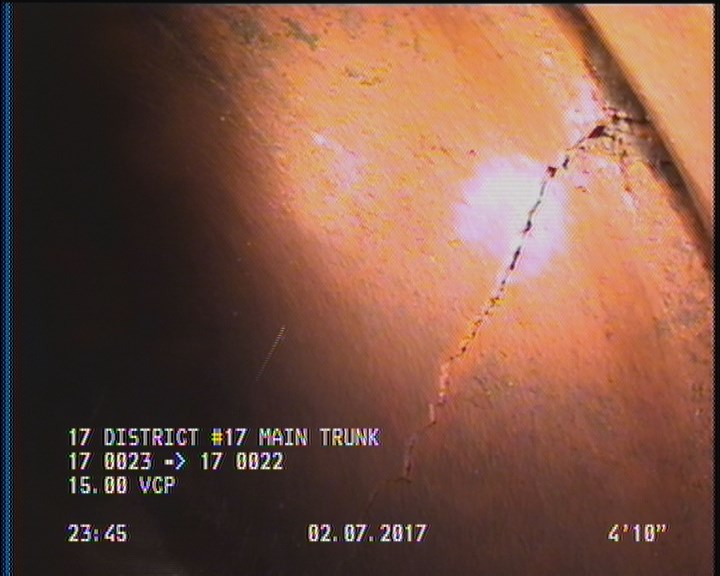

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13747Work order 618954

Observations (23)

DistanceCodeObservation
182.6TB—
211.1TB—
98.8TB—
305.9RML—
254.9TF—
0MWL—
0AMH17 0023
234.7TB—
362.1CM—
362.1AMH17 0022
15.2TB—
2.1DAGS—
43.2TB—
332.5RFJ—
290.3TB—
4.8CM—
330.2TB—
98.1RML—
159.1TB—
306.2TB—
0MWM—
362.1DAGS—
355.6TBC—

Properties (6)

additional_info
SC306736
custom_field_two
3
customer
LACSD
datetime
2017-01-26T15:35:46-08:00
documentation
PROPIPE
is_lateral_inspection
false
