Wastewater/Activity/PacpInspection/1.0Feb 6, 2017, 09:54 AM
02 0003_02 0002 _06022017_015514.mp4
- Date
- 02/06/2017
- W/O
- 618895
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00269
- PipeID
- P04713
- Time
- 1:54 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4143
- Sewer Name
- 02 GRIDLEY ROAD P.P. FORCE MAIN
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Routine Assessment
- Project
- WO_618895_TV02066_FEB2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 02 0003
- Downstream MH
- 02 0002
- Dir. of Survey
- Downstream
- Length Surveyed
- 420.7 ft.
- Total Length
- 420.7 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (3)

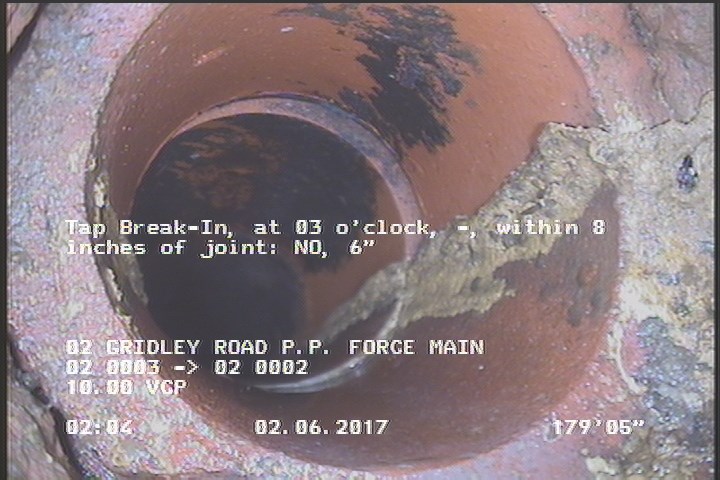

179.4 ft. - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 6"

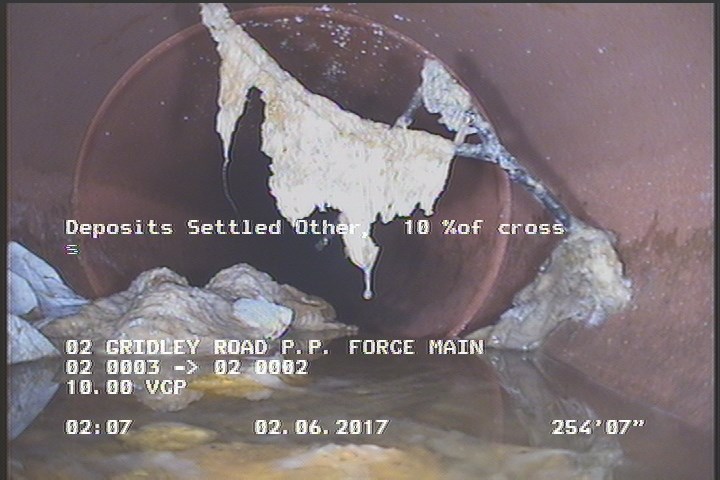

254.6 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO

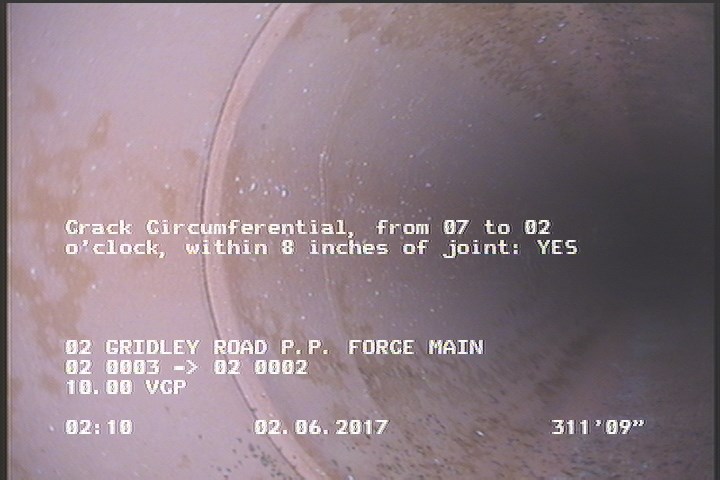

311.8 ft. - Crack Circumferential, from 07 to 02 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 311.8 | CC | — |
| 0 | AMH | 02 0003 |
| 0 | MWL | — |
| 0 | MWM | — |
| 179.4 | TB | — |
| 254.6 | DSZ | — |
| 420.7 | MGO | LATERAL AT MH 3 O'CLOCK |
| 420.7 | AMH | 02 0002 |
| 0 | MGO | LATERAL AT MH 3 O'CLOCK |
Properties (6)
- additional_info
- SC306499
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-02-06T01:54:56-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
