Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 26, 2016, 08:32 AM

  • E 0033_E 0031_20161026_014733.mp4

Date
10/26/2016
W/O
597393
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00028
PipeID
P11259
Time
1:32 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3863
Sewer Name
E JOINT OUTFALL E - UNIT 2
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
19
Purpose
V
Project
WO_597393_TV01124_OCT2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Upstream MH
E 0031
Downstream MH
E 0033
Dir. of Survey
Upstream
Length Surveyed
50.4 ft.
Total Length
50.4 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
4
O&M Quick
4131
O&M Rating
7
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole E 0031 to E 0033
MH: E 0031MH: E 0033upstream0 ft. OBN - Obstacles Construction Debris, 15 %of cross sectional area, from 04 to 08 o'clock, Finish - NOT VISIBLE0 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - MAGNESIUM COATING FINISH0 ft. OBN - Obstacles Construction Debris, 25 %of cross sectional area, from 04 to 08 o'clock - NOT VISIBLE0 ft. MSA - Survey Abandoned - SEVERE DEBRIS 25%48.4 ft. OBN - Obstacles Construction Debris, 15 %of cross sectional area, from 04 to 08 o'clock, Start - NOT VISIBLE48.4 ft. MGO - General Observation - MAGNESIUM COATING START48.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start50.4 ft. MGO - Reversal Inspection50.4 ft. MWL - Water Level, 15 %of cross sectional area50.4 ft. AMH - Downstream Manhole, Survey Begins - E 003150.4 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (2)

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

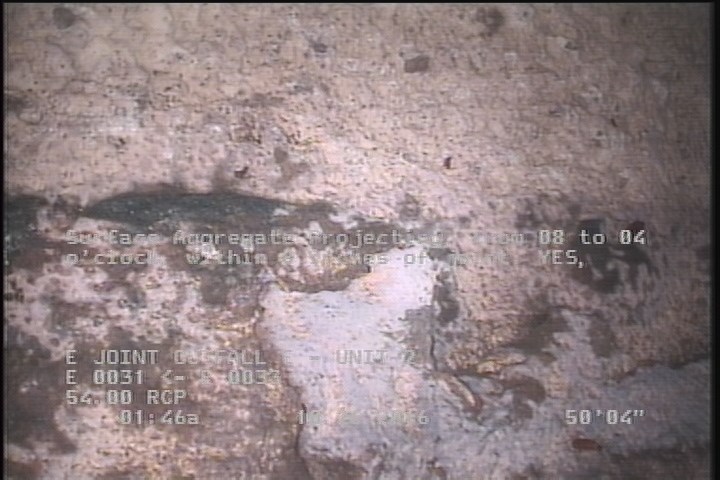

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    50.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P11259Work order 597393

Observations (12)

DistanceCodeObservation
2OBNNOT VISIBLE
50.4OBNNOT VISIBLE
50.4SAP—
0MGO—
2MGOMAGNESIUM COATING START
0MWL—
50.4MGOMAGNESIUM COATING FINISH
2SAP—
50.4OBNNOT VISIBLE
0AMHE 0031
0MWM—
50.4MSASEVERE DEBRIS 25%

Properties (6)

additional_info
SC301942
custom_field_two
4
customer
LACSD
datetime
2016-10-26T01:32:44-07:00
documentation
PRO PIPE
is_lateral_inspection
false
