Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 21, 2016, 07:11 AM

  • E 0054_E 0053_20161021_021123.mp4

Date
10/21/2016
W/O
597393
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00028
PipeID
P11282
Time
12:11 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3860
Sewer Name
E JOINT OUTFALL E - UNIT 2
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_597393_TV01124_OCT2016
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
54 in.
Width
54 in.
Upstream MH
E 0054
Downstream MH
E 0053
Dir. of Survey
Downstream
Length Surveyed
596.6 ft.
Total Length
596.6 ft.
Structural Index
3
Structural Quick
3W00
Structural Rating
354
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
354
Pipe schematic from manhole E 0054 to E 0053
MH: E 0054MH: E 0053downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - E 00541.7 ft. MGO - General Observation - Magnesium hydroxide coating start1.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start74.1 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"217.6 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"591.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish591.8 ft. MGO - General Observation - Magnesium hydroxide coating finish596.6 ft. AMH - Downstream Manhole, Survey Ends - E 0053

Observation photos (4)

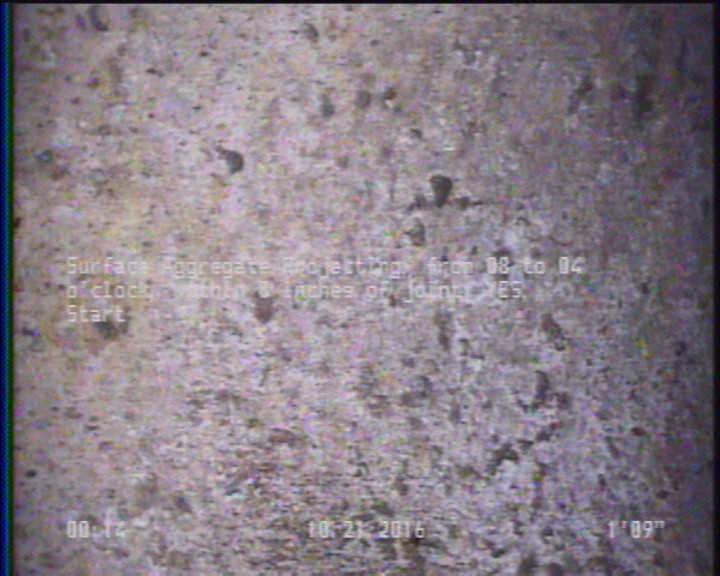

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    1.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

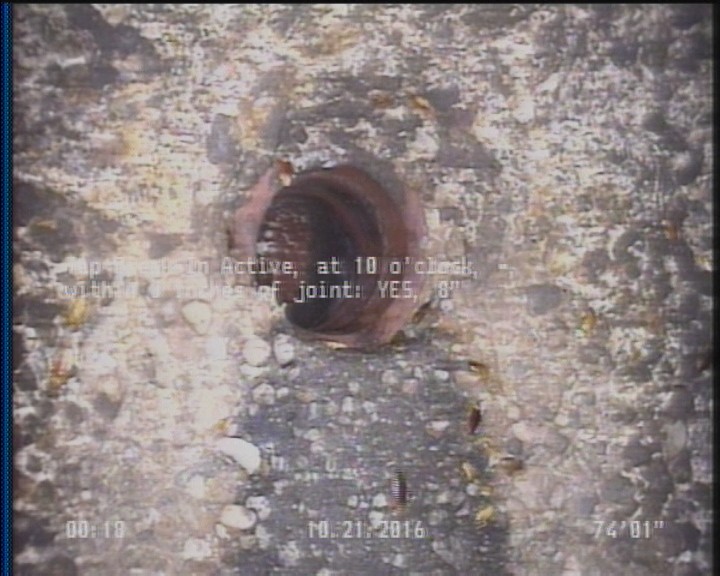

  • Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"

    74.1 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"

  • Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"

    217.6 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: YES, 8"

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

    591.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

All inspections of P11282Work order 597393

Observations (10)

DistanceCodeObservation
217.6TBA—
0MWL—
596.6AMHE 0053
591.8SAP—
0MWM—
74.1TBA—
1.7MGOMagnesium hydroxide coating start
1.7SAP—
0AMHE 0054
591.8MGOMagnesium hydroxide coating finish

Properties (6)

additional_info
SC301939
custom_field_two
4
customer
LACSD
datetime
2016-10-21T00:11:04-07:00
documentation
PRO PIPE
is_lateral_inspection
false
