Wastewater/Activity/PacpInspection/1.0Mar 18, 2016, 09:55 AM
18 0417_18 0416_20160318_030917.mp4
- Date
- 03/18/2016
- W/O
- 557858
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00699
- PipeID
- P14252
- Time
- 2:55 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3228
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- WHITTIER, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_557858_TV18044_2016MAR
- Sewer Type
- SIPHON
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 18 0417
- Downstream MH
- 18 0416
- Dir. of Survey
- Downstream
- Length Surveyed
- 316.4 ft.
- Total Length
- 316.4 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 189
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 197
Observation photos (4)
0 ft. - Water Mark, 55 %of cross sectional area

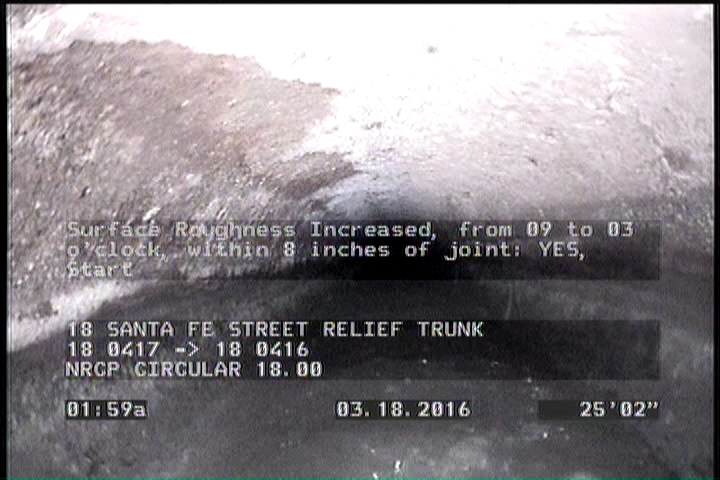

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
5.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
35.3 ft. - Surface Aggregate Projecting, from 08 to 11 o'clock, within 8 inches of joint: NO
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 312.6 | DAGS | — |
| 2 | MGO | MAGNEZIUM H.O. START 20% |
| 178.2 | TFA | — |
| 2 | SAV | — |
| 316.4 | AMH | 18 0416 |
| 114.5 | TFA | — |
| 0 | MWL | — |
| 316.4 | MGO | LATERAL AT MH 9 OCLOCK |
| 35.3 | SAP | — |
| 314 | SAV | — |
| 0 | MWM | — |
| 5.4 | DAGS | — |
| 271.9 | TFA | — |
| 53.2 | TFA | — |
| 0 | AMH | 18 0417 |
Properties (6)
- additional_info
- SC305319
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-18T02:55:08-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
