Wastewater/Activity/PacpInspection/1.0Mar 21, 2016, 09:30 AM
18 0406_18 0405_20160321_024640.mp4
- Date
- 03/21/2016
- W/O
- 557858
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00699
- PipeID
- P14241
- Time
- 2:30 AM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3229
- Sewer Name
- 18 SANTA FE STREET RELIEF TRUNK
- City
- WHITTIER, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_557858_TV18044_2016MAR
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 18 0406
- Downstream MH
- 18 0405
- Dir. of Survey
- Downstream
- Length Surveyed
- 255.7 ft.
- Total Length
- 255.7 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 412I
- O&M Rating
- 102
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 108
Observation photos (3)

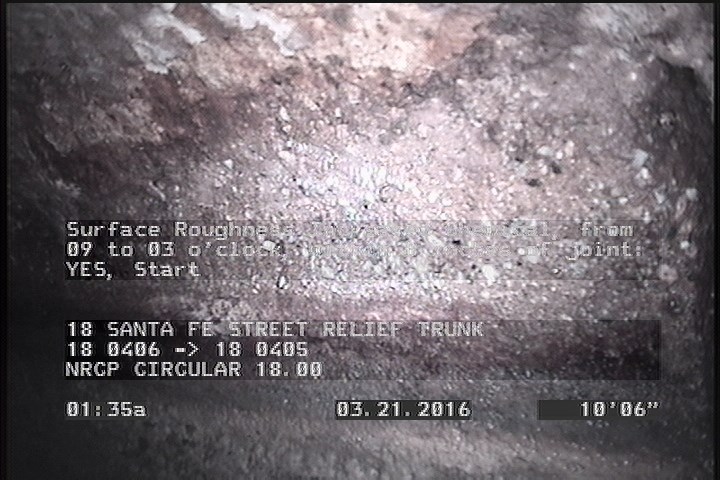

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

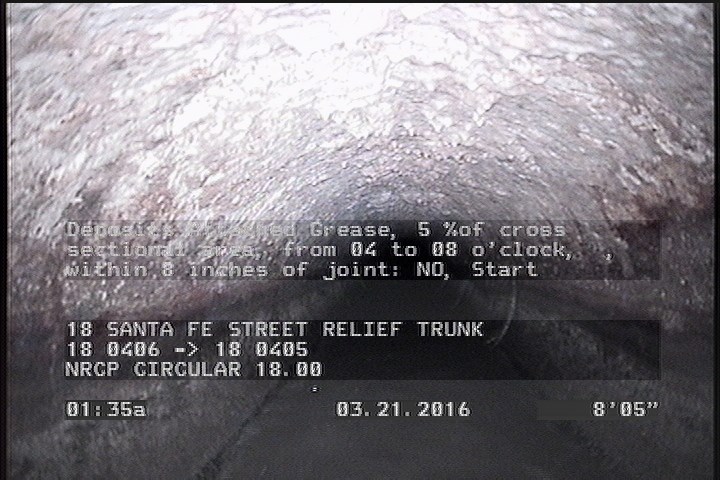

8.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

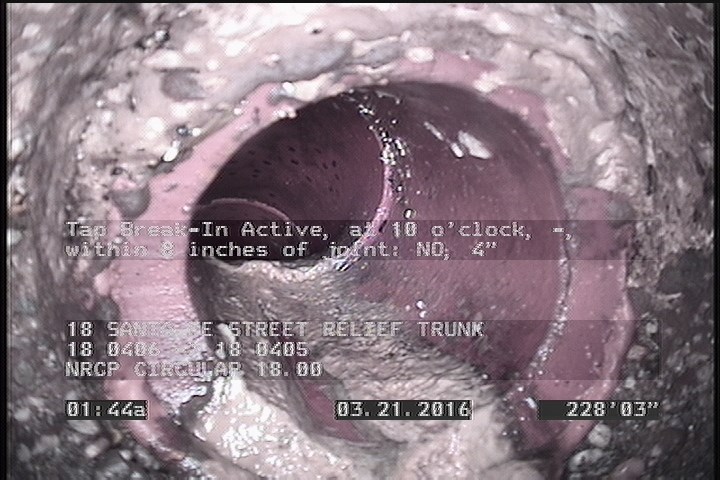

228.3 ft. - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 18 0406 |
| 255.7 | AMH | 18 0405 |
| 0 | MWL | — |
| 2 | MGO | MAGNEZIUM H.O. START 40% |
| 0 | MWM | — |
| 2 | SAV | — |
| 8.4 | DAGS | — |
| 252 | SAV | — |
| 228.3 | TBA | — |
| 252.6 | DAGS | — |
Properties (6)
- additional_info
- SC305320
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-21T02:30:17-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
