Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 21, 2016, 10:05 AM

  • 18 0411_18 0410_20160321_031804.mp4

Date
03/21/2016
W/O
557858
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00699
PipeID
P14246
Time
3:05 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3229
Sewer Name
18 SANTA FE STREET RELIEF TRUNK
City
WHITTIER, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_557858_TV18044_2016MAR
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
18 0410
Downstream MH
18 0411
Dir. of Survey
Upstream
Length Surveyed
134.5 ft.
Total Length
134.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 18 0410 to 18 0411
MH: 18 0410MH: 18 0411upstream0 ft. AMH - Upstream Manhole, Survey Ends - 18 04113.5 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish127 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start127.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start132.5 ft. MGO - General Observation - MAGNEZIUM H.O. START 50%134.5 ft. MWL - Water Level, 35 %of cross sectional area134.5 ft. AMH - Downstream Manhole, Survey Begins - 18 0410134.5 ft. MWM - Water Mark, 55 %of cross sectional area

Observation photos (3)

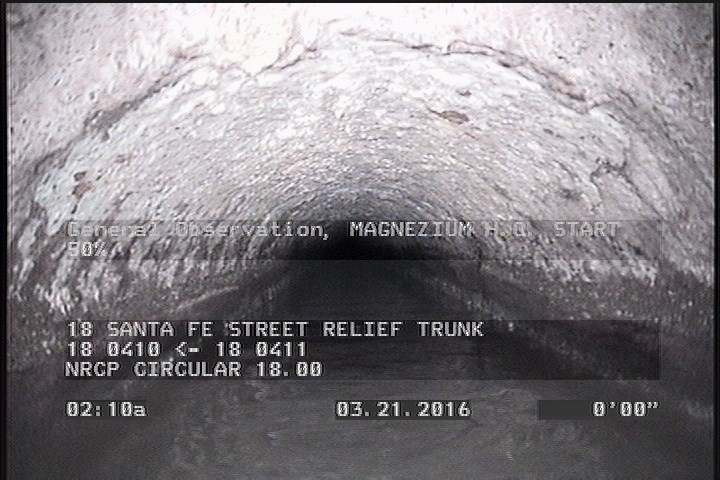

  • General Observation - MAGNEZIUM H.O. START 50%

    2 ft. - General Observation - MAGNEZIUM H.O. START 50%

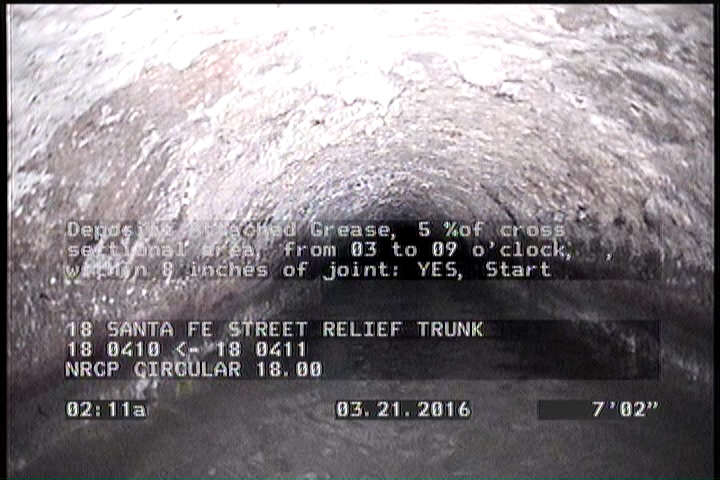

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    7.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

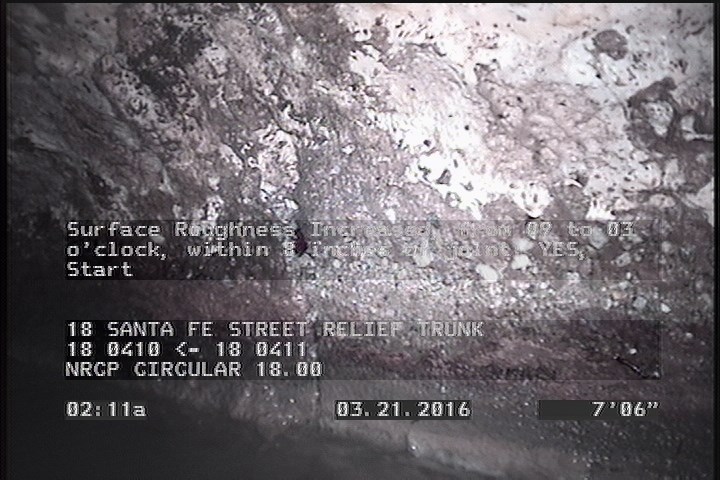

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    7.5 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P14246Work order 557858

Observations (9)

DistanceCodeObservation
0MWL—
0AMH18 0410
134.5AMH18 0411
2MGOMAGNEZIUM H.O. START 50%
128.5DAGS—
7.1DAGS—
131SAV—
0MWM—
7.5SAV—

Properties (6)

additional_info
SC305320
custom_field_two
3
customer
LACSD
datetime
2016-03-21T03:05:53-07:00
documentation
PRO-PIPE
is_lateral_inspection
false
