Wastewater/Activity/PacpInspection/1.0Jan 28, 2016, 07:19 AM
01 1083_01 1082_20160127_231842.mp4
- Date
- 01/27/2016
- W/O
- 552639
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00210
- PipeID
- P01932
- Time
- 11:19 PM
- Certificate
- U-507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3129
- Sewer Name
- 01 HUNTINGTON PARK TRUNK
- City
- SOUTH GATE, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- RFIR_WO_552639_TV01246_FEB2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 01 1083
- Downstream MH
- 01 1082
- Dir. of Survey
- Downstream
- Length Surveyed
- 135.6 ft.
- Total Length
- 135.6 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (3)

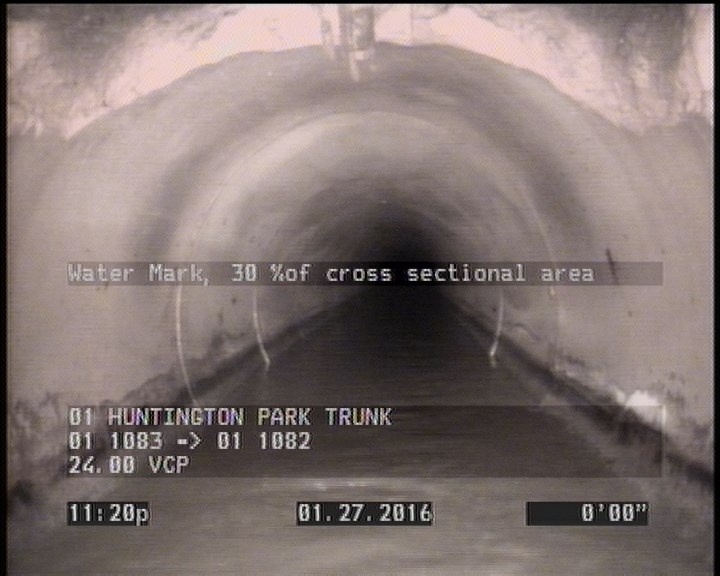

0 ft. - Water Mark, 30 %of cross sectional area

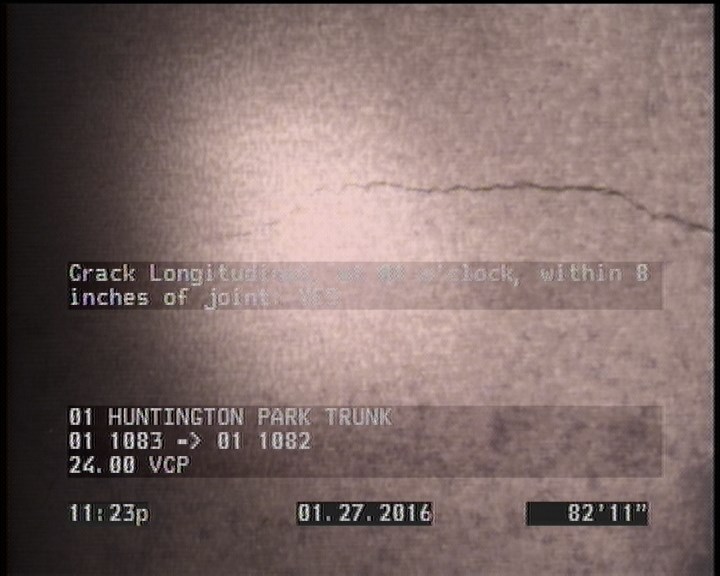

82.9 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

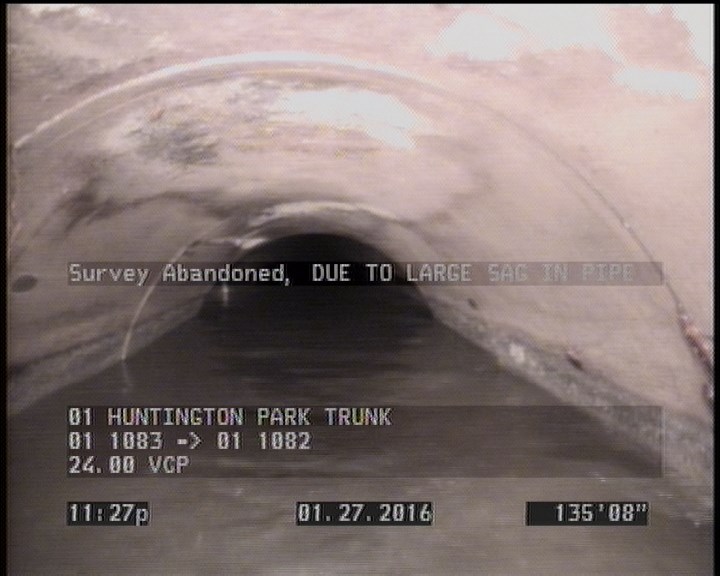

135.6 ft. - Survey Abandoned - DUE TO LARGE SAG IN PIPE
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 135.6 | MSA | DUE TO LARGE SAG IN PIPE |
| 134.2 | MWLS | — |
| 0 | AMH | 01 1083 |
| 82.9 | CL | — |
| 0 | MWL | — |
| 0 | VC | — |
Properties (6)
- additional_info
- SC225516
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2016-01-27T23:19:00-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
