Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 28, 2016, 07:02 AM

  • 01 1084_01 1083_20160127_230138.mp4

Date
01/27/2016
W/O
552639
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00210
PipeID
P01933
Time
11:02 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3129
Sewer Name
01 HUNTINGTON PARK TRUNK
City
SOUTH GATE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
RFIR_WO_552639_TV01246_FEB2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
24 in.
Upstream MH
01 1084
Downstream MH
01 1083
Dir. of Survey
Downstream
Length Surveyed
390.1 ft.
Total Length
390.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2N13
O&M Rating
155
Overall Index
2
Overall Quick
—
Overall Rating
160
Pipe schematic from manhole 01 1084 to 01 1083
MH: 01 1084MH: 01 1083downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 10830 ft. VC - Vermin Cockroach6.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start172.2 ft. CM - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES261.7 ft. VC - Vermin Cockroach332.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES387.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish390 ft. VC - Vermin Cockroach390.1 ft. AMH - Downstream Manhole, Survey Ends - 01 1083

Observation photos (2)

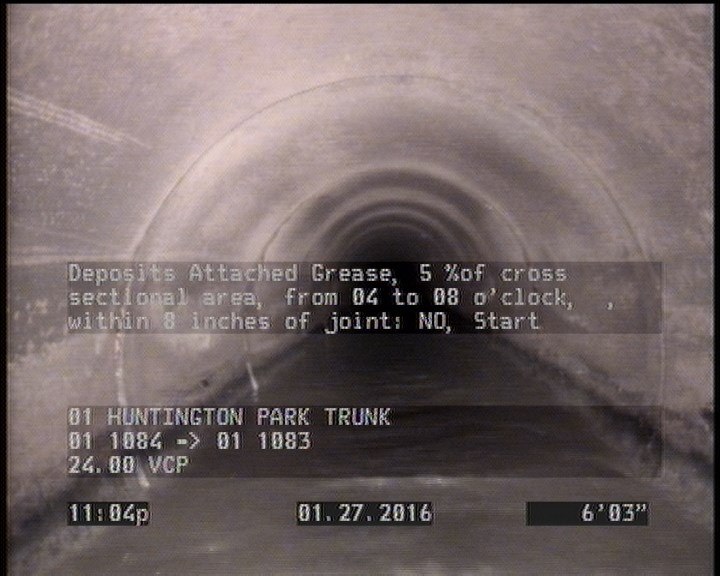

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    6.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

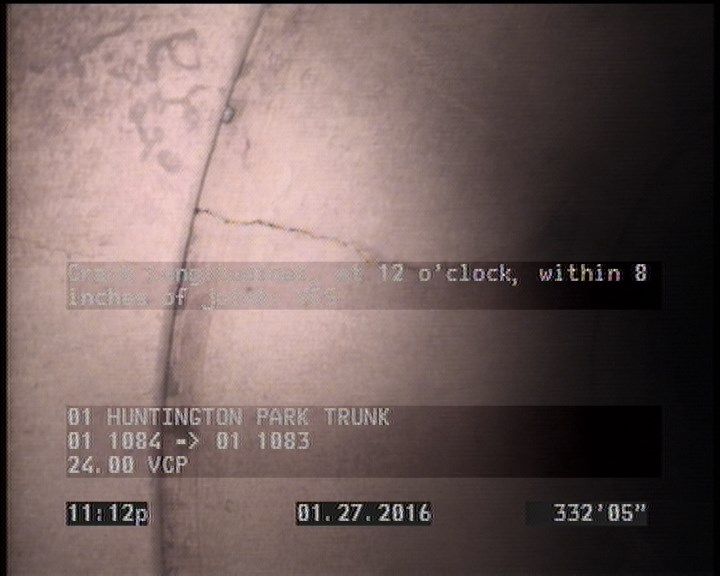

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    332.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P01933Work order 552639

Observations (11)

DistanceCodeObservation
0MWM—
172.2CM—
390.1AMH01 1083
387.3DAGS—
0MWL—
332.4CL—
390VC—
0AMH01 1083
6.3DAGS—
261.7VC—
0VC—

Properties (6)

additional_info
SC225516
custom_field_two
3
customer
LACSD
datetime
2016-01-27T23:02:00-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
