Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 28, 2016, 12:26 PM

  • 01 1126_01 1125_20160128_042610.mp4

Date
01/28/2016
W/O
552639
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00210
PipeID
P01978
Time
4:26 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3129
Sewer Name
01 HUNTINGTON PARK TRUNK
City
SOUTH GATE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
04
Purpose
Routine Assessment
Project
RFIR_WO_552639_TV01246_FEB2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
15 in.
Upstream MH
01 1126
Downstream MH
01 1125
Dir. of Survey
Downstream
Length Surveyed
279.5 ft.
Total Length
279.5 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
2
O&M Quick
312J
O&M Rating
114
Overall Index
2
Overall Quick
—
Overall Rating
124
Pipe schematic from manhole 01 1126 to 01 1125
MH: 01 1126MH: 01 1125downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 11260 ft. MWL - Water Level, 5 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 10 %of cross sectional area5.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start21 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"62 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"66.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"100.9 ft. CS - Crack Spiral, from 01 to 05 o'clock, within 8 inches of joint: YES105.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"113 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"143.5 ft. HVV - Hole Void Visible, at 01 o'clock, within 8 inches of joint: YES143.5 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: NO, 4"149.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"174.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"195.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"218.2 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"218.2 ft. RFL - Roots Fine Lateral, at 10 o'clock236.8 ft. CM - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES241.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"246.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"276.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish279.5 ft. VC - Vermin Cockroach279.5 ft. AMH - Downstream Manhole, Survey Ends - 01 1125

Observation photos (5)

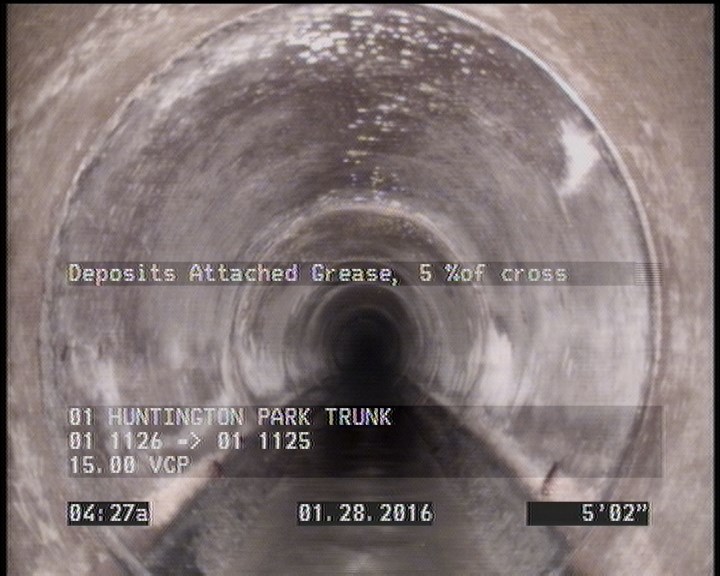

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    5.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

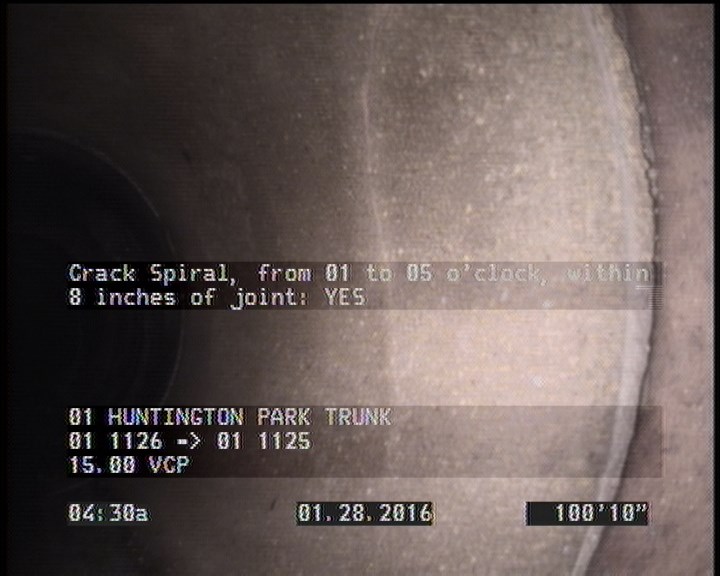

  • Crack Spiral, from 01 to 05 o'clock, within 8 inches of joint: YES

    100.9 ft. - Crack Spiral, from 01 to 05 o'clock, within 8 inches of joint: YES

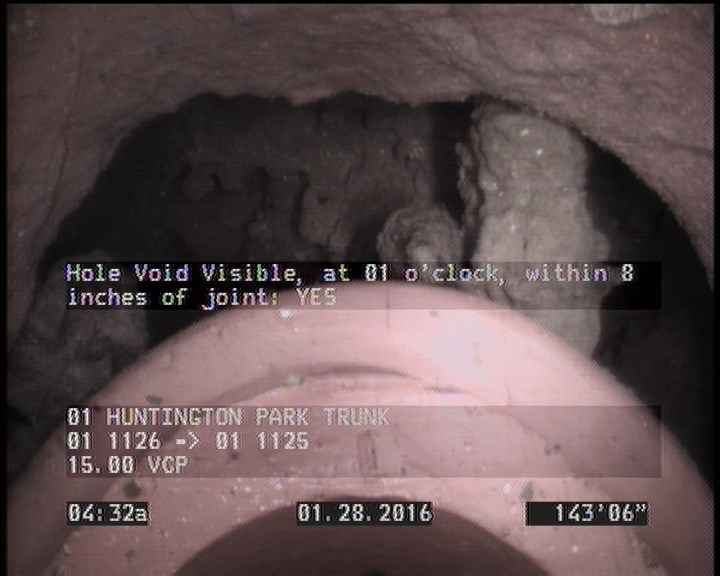

  • Hole Void Visible, at 01 o'clock, within 8 inches of joint: YES

    143.5 ft. - Hole Void Visible, at 01 o'clock, within 8 inches of joint: YES

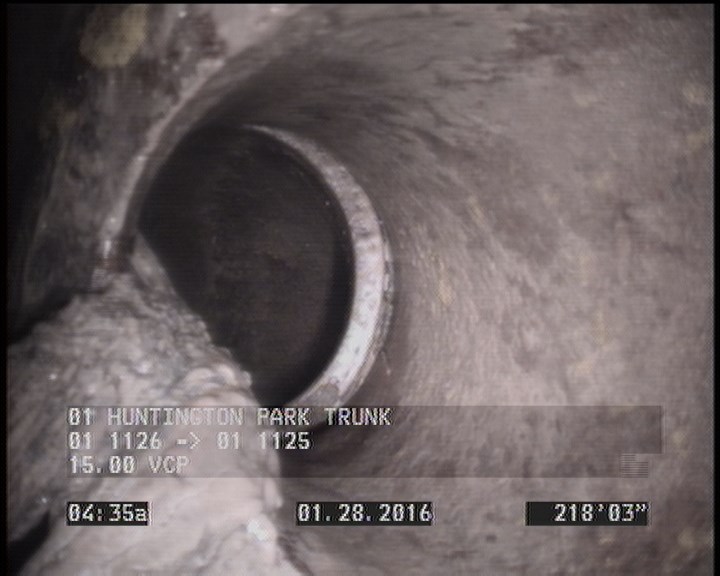

  • Roots Fine Lateral, at 10 o'clock

    218.2 ft. - Roots Fine Lateral, at 10 o'clock

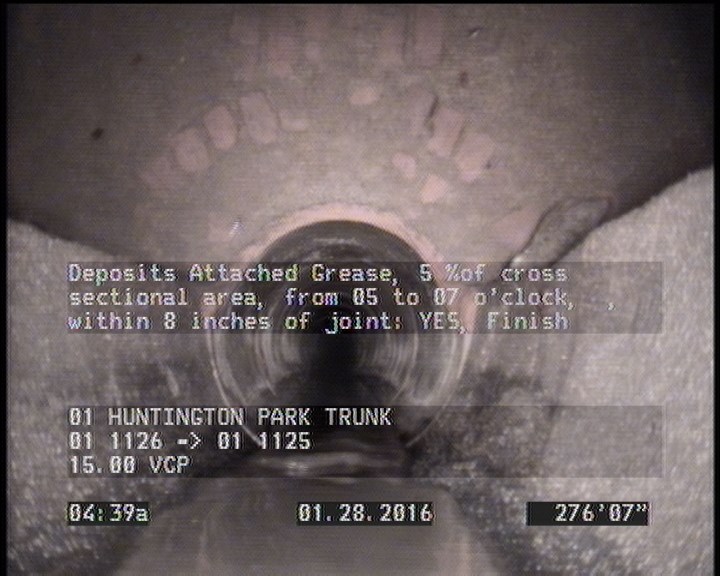

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish

    276.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish

All inspections of P01978Work order 552639

Observations (24)

DistanceCodeObservation
218.2TFA—
105.3TFA—
0AMH01 1126
21TFA—
0MWL—
174.8TFA—
195.2TFA—
143.5HVV—
279.5VC—
66.8TFA—
0VC—
276.6DAGS—
149.3TFA—
246.4TFA—
100.9CS—
241.1TFA—
113TFA—
62TFA—
279.5AMH01 1125
5.2DAGS—
143.5TBA—
218.2RFL—
236.8CM—
0MWM—

Properties (6)

additional_info
SC225516
custom_field_two
2
customer
LACSD
datetime
2016-01-28T04:26:00-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
