Wastewater/Activity/PacpInspection/1.0Mar 2, 2016, 07:51 AM
H 0983_H 0982_20020101_031337.mp4
- Date
- 03/01/2016
- W/O
- 552580
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z01005
- PipeID
- P15396
- Time
- 11:51 PM
- Certificate
- U507033386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3213
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- RFIR_WO_552580_TV21087_FEB2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- H 0983
- Downstream MH
- H 0982
- Dir. of Survey
- Downstream
- Length Surveyed
- 330.1 ft.
- Total Length
- 330.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 122
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 124
Observation photos (4)

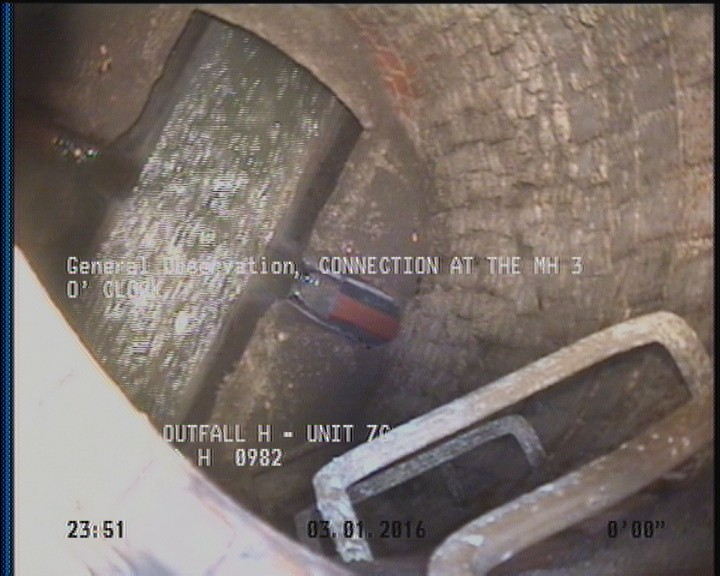

0 ft. - General Observation - CONNECTION AT THE MH 3 O' CLOCK

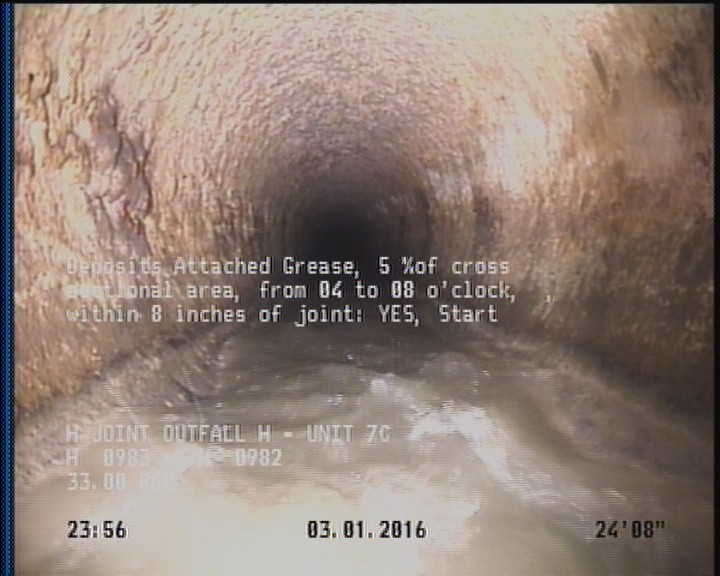

24.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

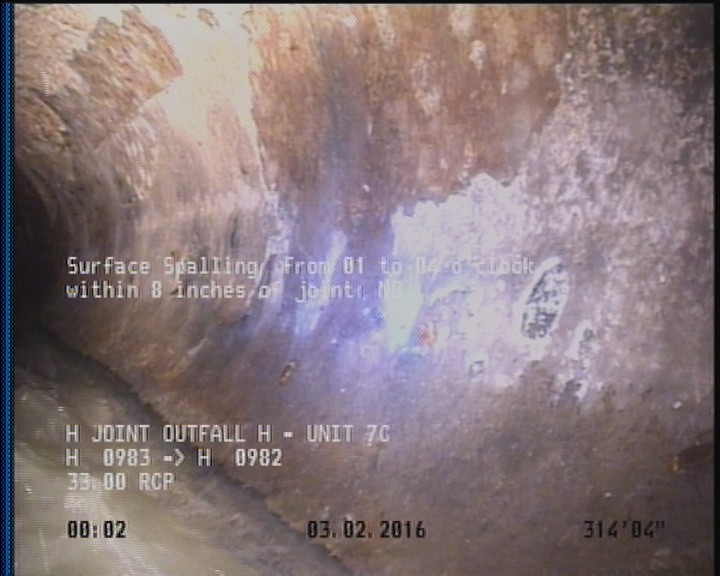

314.3 ft. - Surface Spalling, from 01 to 04 o'clock, within 8 inches of joint: NO

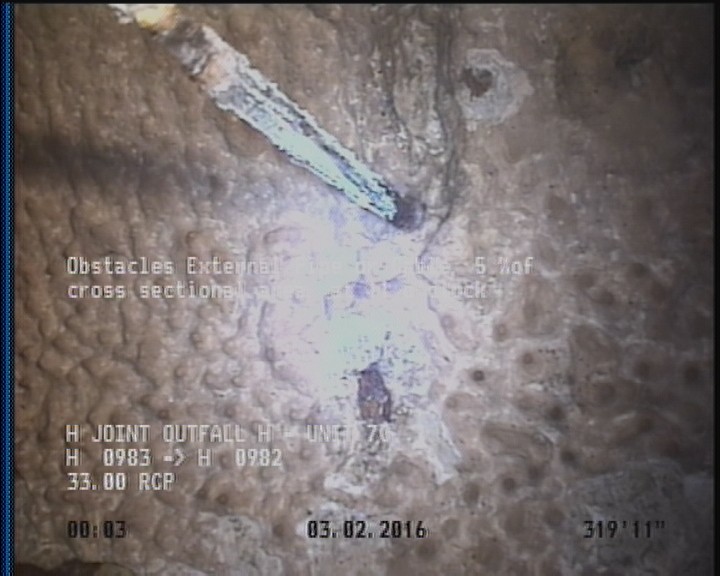

319.9 ft. - Obstacles External Pipe or Cable, 5 %of cross sectional area, at 11 o'clock
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 319.9 | OBP | — |
| 314.3 | SSS | — |
| 0 | AMH | H 0983 |
| 2 | MGO | Magnesium hydroxide coating start |
| 330.1 | AMH | H 0982 |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT THE MH 9 O' CLOCK |
| 0 | MWM | — |
| 24.6 | DAGS | — |
| 325.4 | DAGS | — |
| 0 | MGO | CONNECTION AT THE MH 3 O' CLOCK |
Properties (6)
- additional_info
- SC305302
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-01T23:51:00-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
