Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 27, 2016, 11:09 AM

  • G 0138_G 0137_20160127_042719_.mp4

Date
01/27/2016
W/O
547569
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01180
PipeID
P01461
Time
3:09 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3128
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
19
Purpose
Routine Assessment
Project
RFIR_WO_547569_TV01236_JAN2016
Sewer Type
GRAVITY
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0138
Downstream MH
G 0137
Dir. of Survey
Downstream
Length Surveyed
102.4 ft.
Total Length
102.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
513C
O&M Rating
65
Overall Index
3
Overall Quick
—
Overall Rating
65
Pipe schematic from manhole G 0138 to G 0137
MH: G 0138MH: G 0137downstream0 ft. MWL - Water Level, 50 %of cross sectional area0 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. AMH - Upstream Manhole, Survey Begins - G 01382 ft. MGO - General Observation - MAGNESIUM H.O. START2 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start102.4 ft. MGO - General Observation - FLOW TOO SLOW TO PULL CAMERA THROUGH PIPE102.4 ft. MSA - Survey Abandoned - DUE TO FLOW TOO SLOW TO PULL CAMERA THROUGH PIPE102.4 ft. DAGS - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (2)

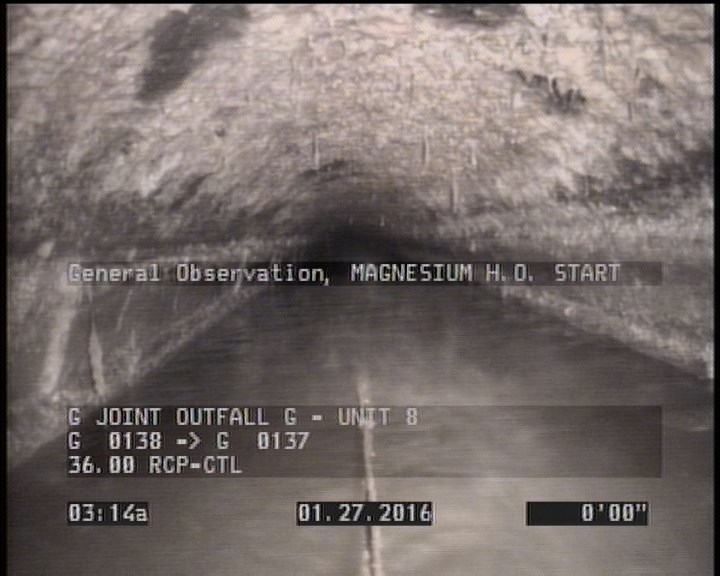

  • General Observation - MAGNESIUM H.O. START

    2 ft. - General Observation - MAGNESIUM H.O. START

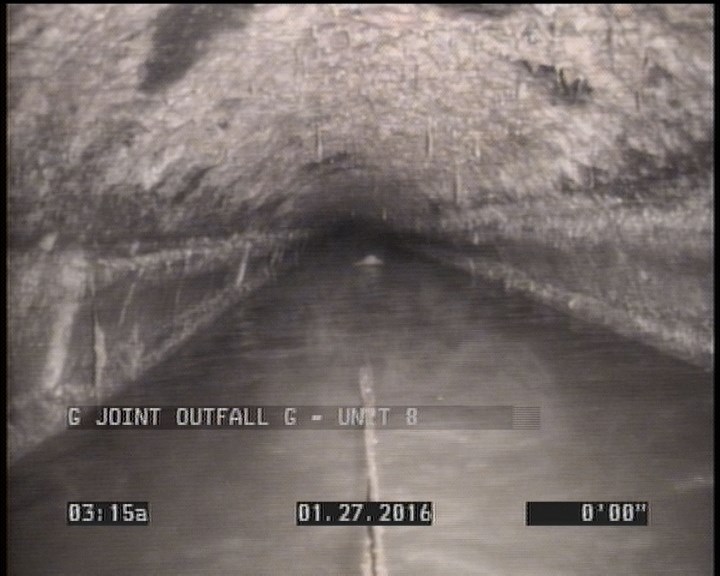

  • Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 20 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P01461Work order 547569

Observations (9)

DistanceCodeObservation
102.4MGOFLOW TOO SLOW TO PULL CAMERA THROUGH PIPE
2MGOMAGNESIUM H.O. START
0MWL—
0MWM—
102.4MSADUE TO FLOW TOO SLOW TO PULL CAMERA THROUGH PIPE
0MGOLATERAL AT MH 9 OCLOCK
0AMHG 0138
102.4DAGS—
2DAGS—

Properties (6)

additional_info
SC225515
custom_field_two
5
customer
LACSD
datetime
2016-01-27T03:09:43-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
