Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 7, 2016, 01:09 PM

  • 19 0067_C 0373_20160307_062848.mp4

Date
03/07/2016
W/O
557873
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00724
PipeID
P15099
Time
5:09 AM
Certificate
U507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3217
Sewer Name
19 ELAINE AVENUE TRUNK
City
LAKEWOOD, CA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
06
Purpose
Routine Assessment
Project
WO_557873_TV19004_2016MAR
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
19 0067
Downstream MH
C 0373
Dir. of Survey
Downstream
Length Surveyed
306.9 ft.
Total Length
306.9 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2K00
O&M Rating
124
Overall Index
2
Overall Quick
—
Overall Rating
130
Pipe schematic from manhole 19 0067 to C 0373
MH: 19 0067MH: C 0373downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 19 00677.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start24.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"28.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"50.6 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: NO73.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"76.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"122.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4", 4"125.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"142.4 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES171.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"173.9 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4", 4"222.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"225.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"265.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"268.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"274.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"303.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 02 o'clock, , within 8 inches of joint: YES306.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish306.9 ft. AMH - Downstream Manhole, Survey Ends - C 0373

Observation photos (3)

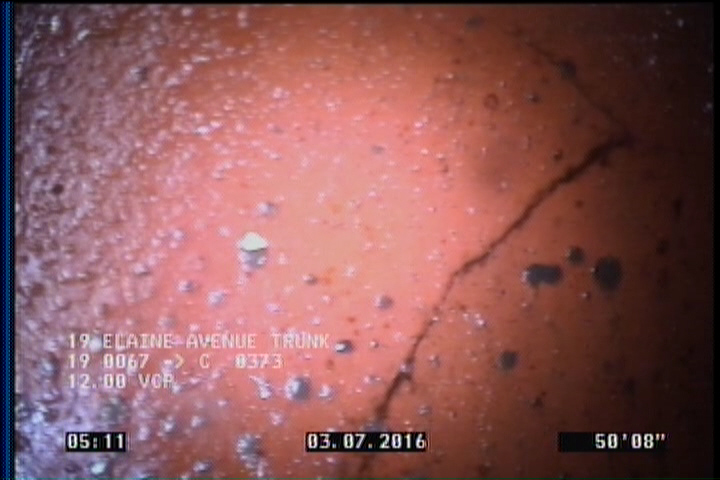

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: NO

    50.6 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: NO

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    142.4 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 02 o'clock, , within 8 inches of joint: YES

    303.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 02 o'clock, , within 8 inches of joint: YES

All inspections of P15099Work order 557873

Observations (22)

DistanceCodeObservation
173.9TBC—
73.7TFC—
125.6TFC—
24.9TFC—
225.6TFC—
0MWL—
0MWM—
7.4DAGS—
222.5TFC—
265.1TFC—
28.1TFC—
274.8TFC—
268.2TFC—
306.9AMHC 0373
0AMH19 0067
142.4CM—
303.1DAE—
50.6CM—
122.6TFA—
306.5DAGS—
76.7TFC—
171.4TFC—

Properties (6)

additional_info
SC305307
custom_field_two
3
customer
LACSD
datetime
2016-03-07T05:09:30-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
