Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 25, 2017, 10:06 AM

  • 18 0382_18 0381_5252017_035800.mp4

Date
05/25/2017
W/O
0630165
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00690
PipeID
P14216
Time
3:06 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0536
Sewer Name
18 NORTH NORWALK TRUNK
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
25
Purpose
Capital Improvement Program Assesment
Project
20170522MDM_NORTH_NORWALK_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
18 0381
Downstream MH
18 0382
Dir. of Survey
Upstream
Length Surveyed
250.8 ft.
Total Length
250.8 ft.
Structural Index
2
Structural Quick
4132
Structural Rating
30
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
30
Pipe schematic from manhole 18 0381 to 18 0382
MH: 18 0381MH: 18 0382upstream0 ft. AMH - Upstream Manhole, Survey Ends - 4:40AM0.5 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% HAIRLINE AT JOINTS0.5 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 30% HAIRLINE AT JOINTS0.5 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Finish - 30% SLIGHT AT JOINTS0.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0.5 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% SLIGHT AT JOINTS85 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL224.8 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS224.8 ft. MGO - General Observation - 12" VCP224.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS224.8 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS224.8 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS227.4 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL227.4 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - H230.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL230.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL233.7 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL236.9 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE242.8 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - SLIGHT242.8 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT250.8 ft. AMH - Downstream Manhole, Survey Begins - 3:55AM250.8 ft. MWL - Water Level, 10 %of cross sectional area250.8 ft. MWM - Water Mark, 30 %of cross sectional area250.8 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active

Observation photos (2)

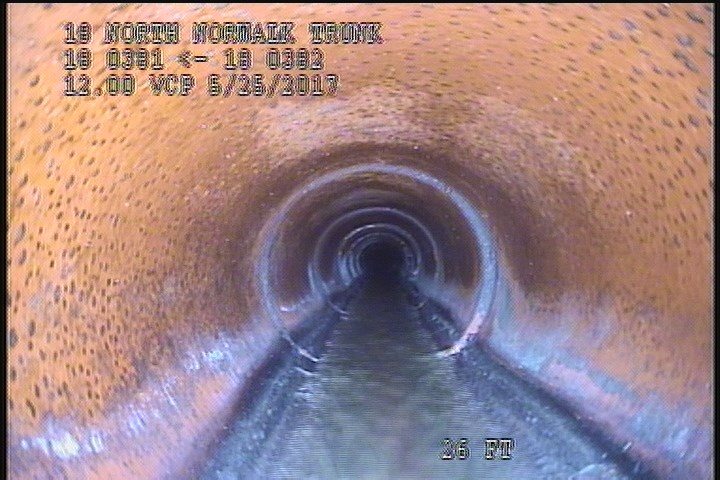

  • General Observation - 12" VCP

    26 ft. - General Observation - 12" VCP

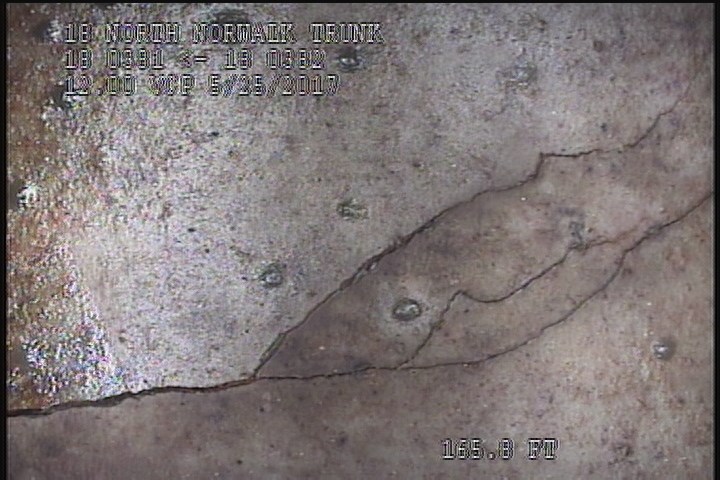

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

    165.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

All inspections of P14216Work order 0630165

Observations (24)

DistanceCodeObservation
26FLSLIGHT AT JOINTS
250.3FC60% HAIRLINE AT JOINTS
250.3FL30% HAIRLINE AT JOINTS
0AMH3:55AM
17.1FCSL
8FCSLIGHT
0MWL—
250.3FL30% SLIGHT AT JOINTS
26MGO12" VCP
250.8AMH4:40AM
13.9FCHAIRLINE
26FCSLIGHT AT JOINTS
26FCHAIRLINE AT JOINTS
23.4FCSL
165.8FMSL
0MWM—
250.3MGOConn. @ Mh, 9 O' Clock. Active
0MGOConn. @ Mh, 9 O' Clock. Active
20.1FCSL
8FCSLIGHT
20.1FCSL
250.3FC80% SLIGHT AT JOINTS
26FLHAIRLINE AT JOINTS
23.4FCH

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2017-05-25T03:06:36-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
