Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 2, 2016, 12:12 PM

  • 29 0356_29 0355_20020101_073245.mp4

Date
03/02/2016
W/O
557696
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01017
PipeID
P24376
Time
4:12 AM
Certificate
U507033386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3215
Sewer Name
29 PACIFIC COAST HIGHWAY SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_557696_TV29045_2016MAR
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0356
Downstream MH
29 0355
Dir. of Survey
Downstream
Length Surveyed
315.6 ft.
Total Length
315.6 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole 29 0356 to 29 0355
MH: 29 0356MH: 29 0355downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 03560 ft. MWL - Water Level, 5 %of cross sectional area172.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"205.8 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"236.6 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 4"285.1 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: NO, 4"303.7 ft. MWLS - Water Level, Sag in pipe, 15 %of cross sectional area, Start311.5 ft. FS - Fracture Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES315.6 ft. MWLS - Water Level, Sag in pipe, 15 %of cross sectional area, Finish315.6 ft. AMH - Downstream Manhole, Survey Ends - 29 0355

Observation photos (2)

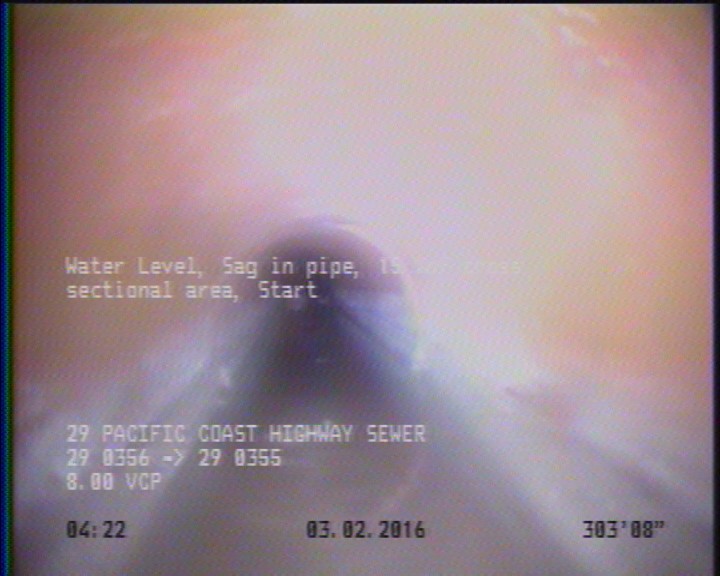

  • Water Level, Sag in pipe, 15 %of cross sectional area, Start

    303.7 ft. - Water Level, Sag in pipe, 15 %of cross sectional area, Start

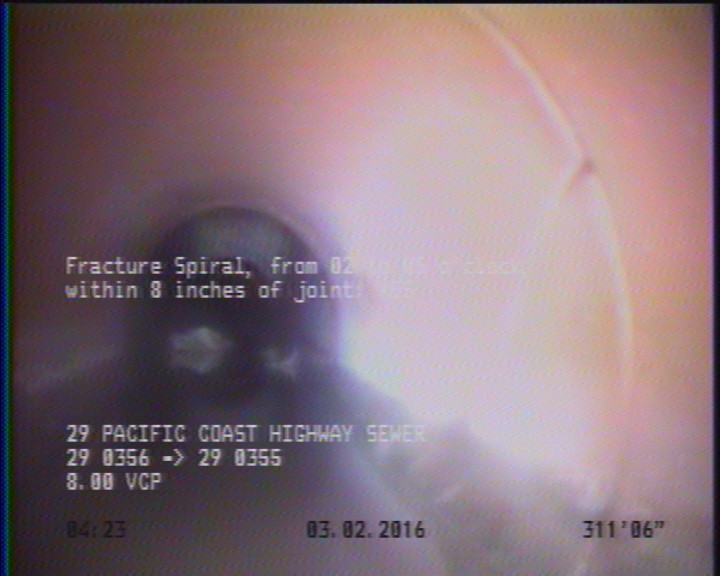

  • Fracture Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES

    311.5 ft. - Fracture Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES

All inspections of P24376Work order 557696

Observations (11)

DistanceCodeObservation
0MWM—
315.6MWLS—
303.7MWLS—
311.5FS—
315.6AMH29 0355
0AMH29 0356
0MWL—
285.1TBA—
236.6TBA—
172.3TBA—
205.8TBA—

Properties (6)

additional_info
SC305304
custom_field_two
3
customer
LACSD
datetime
2016-03-02T04:12:00-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
