Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 3, 2016, 11:02 AM

  • 29 0328_29 0327_20160303_041945.mp4

Date
03/03/2016
W/O
557696
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01017
PipeID
P24345
Time
3:02 AM
Certificate
U507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3216
Sewer Name
29 PACIFIC COAST HIGHWAY SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_557696_TV29045_2016MAR
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0327
Downstream MH
29 0328
Dir. of Survey
Upstream
Length Surveyed
305.2 ft.
Total Length
305.2 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 29 0327 to 29 0328
MH: 29 0327MH: 29 0328upstream0 ft. VC - Vermin Cockroach0 ft. AMH - Upstream Manhole, Survey Ends - 29 03289.7 ft. CM - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES10 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"12.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"42.9 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 4"60.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"65.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"113.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"116.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4", 4"134.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"175 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"190.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"195 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"213.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"228.9 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"265.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"305.2 ft. MWL - Water Level, 5 %of cross sectional area305.2 ft. AMH - Downstream Manhole, Survey Begins - 29 0327305.2 ft. MWM - Water Mark, 10 %of cross sectional area

Observation photos (2)

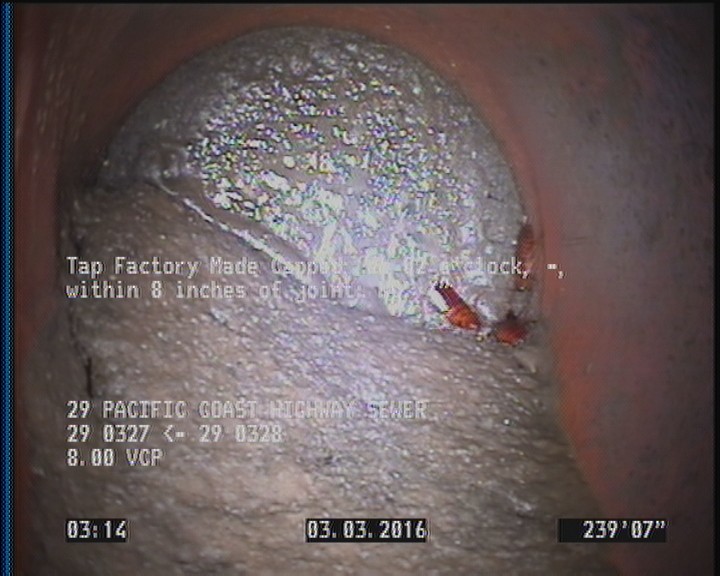

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

    239.6 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

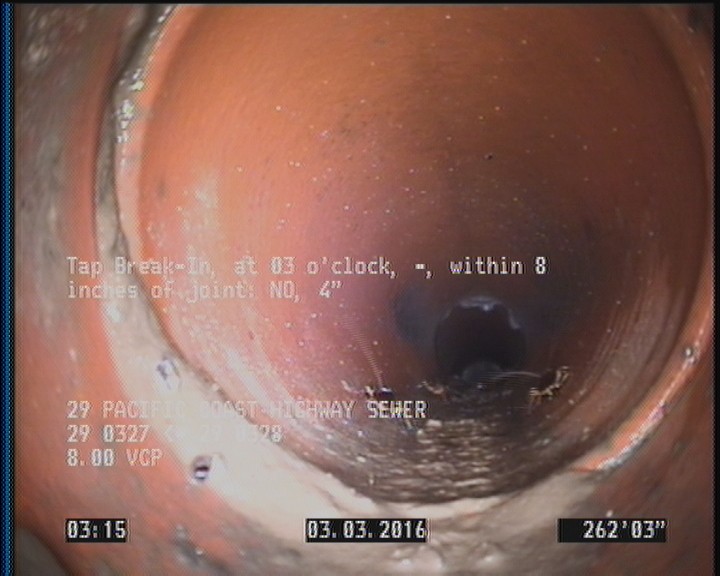

  • Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 4"

    262.3 ft. - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 4"

All inspections of P24345Work order 557696

Observations (20)

DistanceCodeObservation
0MWL—
262.3TB—
191.3TFC—
188.7TFA—
305.2VC—
295.5CM—
76.3TBA—
91.4TFA—
292.6TFC—
305.2AMH29 0328
239.6TFC—
295.2TFA—
171.1TFA—
130.2TFA—
0AMH29 0327
0MWM—
110.2TFA—
114.3TFC—
244.7TFA—
39.6TF—

Properties (6)

additional_info
SC305305
custom_field_two
4
customer
LACSD
datetime
2016-03-03T03:02:48-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
