Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 3, 2016, 07:17 AM

  • 29 0332_29 0321_20160303_003234.mp4

Date
03/02/2016
W/O
557696
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01017
PipeID
P24351
Time
11:17 PM
Certificate
U507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3216
Sewer Name
29 PACIFIC COAST HIGHWAY SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_557696_TV29045_2016MAR
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0332
Downstream MH
29 0321
Dir. of Survey
Downstream
Length Surveyed
298 ft.
Total Length
298 ft.
Structural Index
2
Structural Quick
3128
Structural Rating
19
O&M Index
2
O&M Quick
2811
O&M Rating
17
Overall Index
2
Overall Quick
—
Overall Rating
36
Pipe schematic from manhole 29 0332 to 29 0321
MH: 29 0332MH: 29 0321downstream0 ft. AMH - Upstream Manhole, Survey Begins - 29 03320 ft. MWL - Water Level, 5 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 10 %of cross sectional area13.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"16.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"67.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"71 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"108.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"111.8 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"246.7 ft. MWLS - Water Level, Sag in pipe, 5 %of cross sectional area, Start246.7 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start284.5 ft. MWLS - Water Level, Sag in pipe, 5 %of cross sectional area, Finish284.5 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish286.4 ft. CM - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES298 ft. AMH - Downstream Manhole, Survey Ends - 29 0321

Observation photos (2)

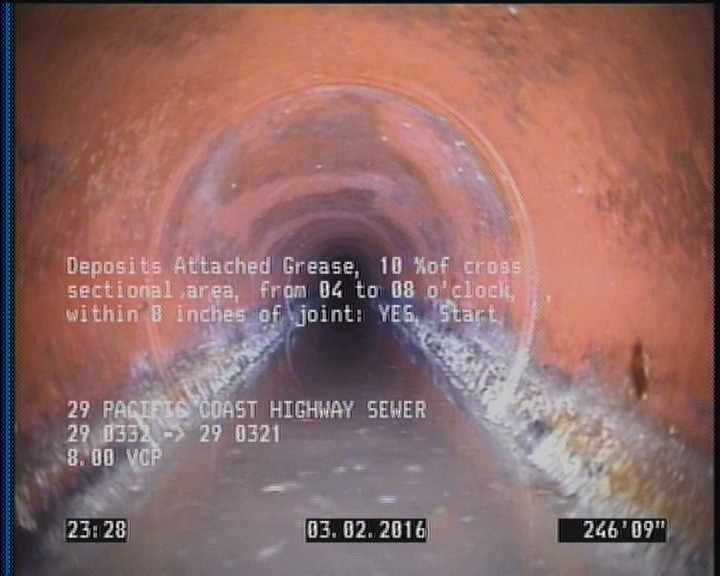

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    246.7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

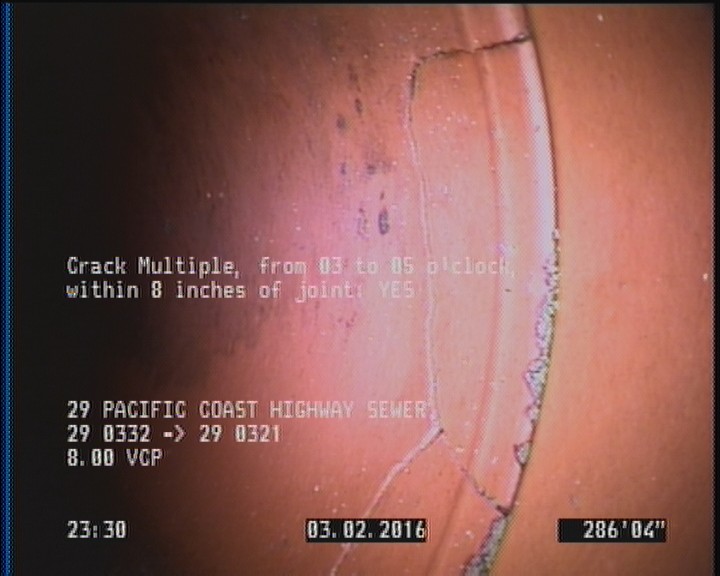

  • Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

    286.4 ft. - Crack Multiple, from 03 to 05 o'clock, within 8 inches of joint: YES

All inspections of P24351Work order 557696

Observations (16)

DistanceCodeObservation
111.8TFC—
0AMH29 0332
71TFC—
246.7MWLS—
286.4CM—
67.5TF—
108.8TF—
0MWL—
298AMH29 0321
0VC—
284.5MWLS—
16.9TF—
13.1TFC—
0MWM—
246.7DAGS—
284.5DAGS—

Properties (6)

additional_info
SC305305
custom_field_two
4
customer
LACSD
datetime
2016-03-02T23:17:23-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
