Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 3, 2016, 06:57 AM

  • 29 0333_29 0332_20160303_001558.mp4

Date
03/02/2016
W/O
557696
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01017
PipeID
P24352
Time
10:57 PM
Certificate
U507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3216
Sewer Name
29 PACIFIC COAST HIGHWAY SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_557696_TV29045_2016MAR
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0333
Downstream MH
29 0332
Dir. of Survey
Downstream
Length Surveyed
301.6 ft.
Total Length
301.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 29 0333 to 29 0332
MH: 29 0333MH: 29 0332downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 03330 ft. MWL - Water Level, 5 %of cross sectional area6.1 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"36.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"66.9 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 4"83.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"107.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"128 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"151.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"178.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4" - W/ FRACTURES198.9 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"228.9 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"242.6 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 4", 4"249.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"279.6 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 4"289.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 4"295.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES301.6 ft. VC - Vermin Cockroach301.6 ft. AMH - Downstream Manhole, Survey Ends - 29 0332

Observation photos (2)

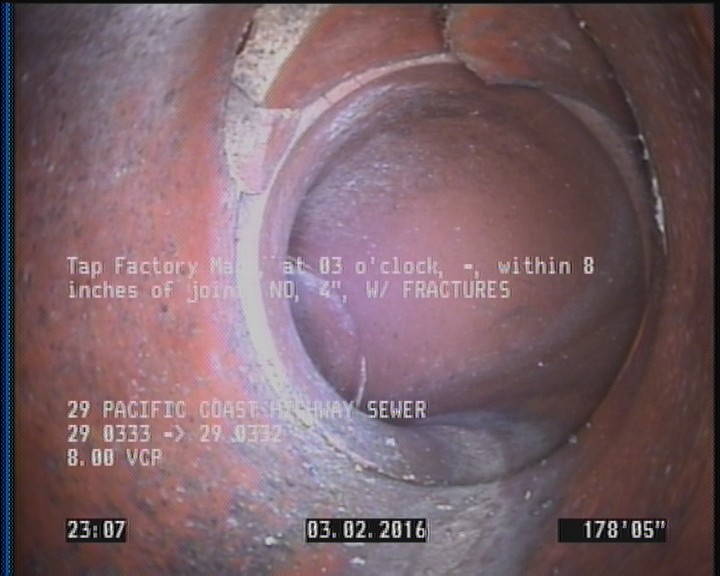

  • Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4" - W/ FRACTURES

    178.4 ft. - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4" - W/ FRACTURES

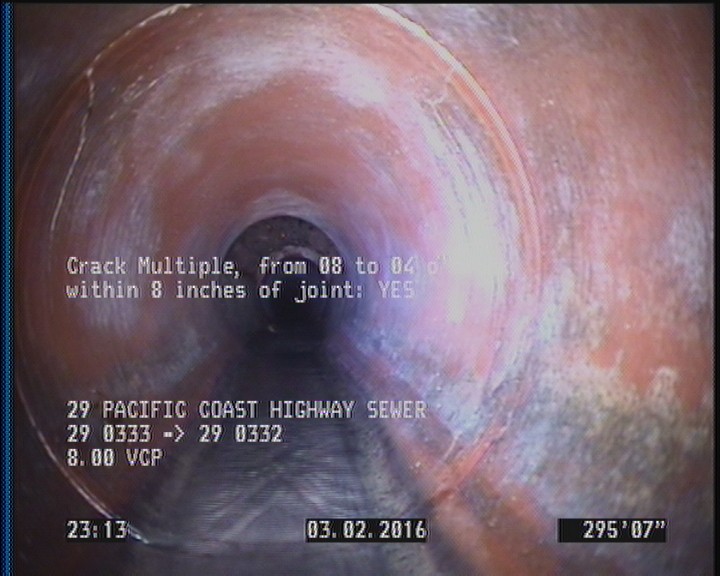

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    295.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P24352Work order 557696

Observations (20)

DistanceCodeObservation
6.1TFA—
151.8TF—
0MWM—
0AMH29 0333
107.5TF—
279.6TFC—
83.6TF—
242.6TFA—
178.4TFW/ FRACTURES
228.9TFC—
301.6VC—
66.9TFA—
128TFA—
295.5CM—
249.2TF—
289.7TF—
301.6AMH29 0332
36.4TF—
198.9TF—
0MWL—

Properties (6)

additional_info
SC305305
custom_field_two
4
customer
LACSD
datetime
2016-03-02T22:57:42-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
