Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 3, 2016, 08:01 AM

  • 29 0341_29 0340_20160303_011808.mp4

Date
03/03/2016
W/O
557696
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z01017
PipeID
P24361
Time
12:01 AM
Certificate
U507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3216
Sewer Name
29 PACIFIC COAST HIGHWAY SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_557696_TV29045_2016MAR
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
29 0341
Downstream MH
29 0340
Dir. of Survey
Downstream
Length Surveyed
251.9 ft.
Total Length
251.9 ft.
Structural Index
3
Structural Quick
3811
Structural Rating
25
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
25
Pipe schematic from manhole 29 0341 to 29 0340
MH: 29 0341MH: 29 0340downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 034118.2 ft. CM - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES43.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"45 ft. CC - Crack Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES73.5 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 4"84.3 ft. CM - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES106.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"132.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"161.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES165.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"167.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"185.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES199 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES214.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"223.7 ft. CM - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES224.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"228 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES237.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES251.9 ft. AMH - Downstream Manhole, Survey Ends - 29 0340

Observation photos (2)

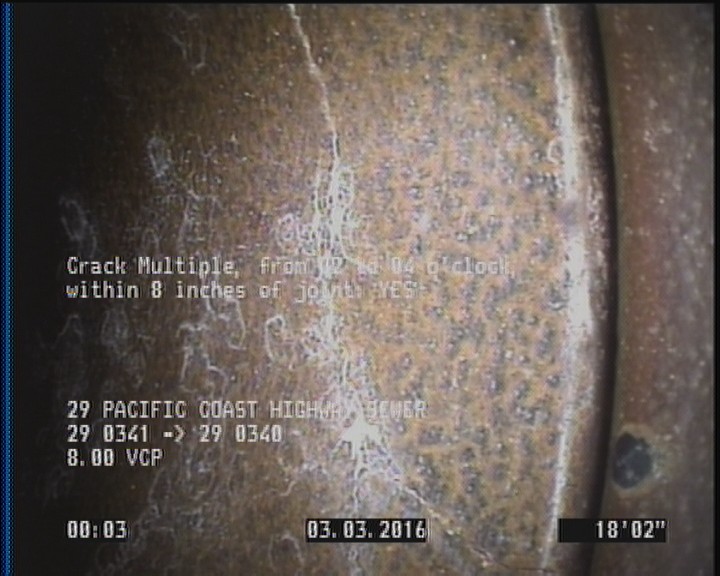

  • Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

    18.2 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

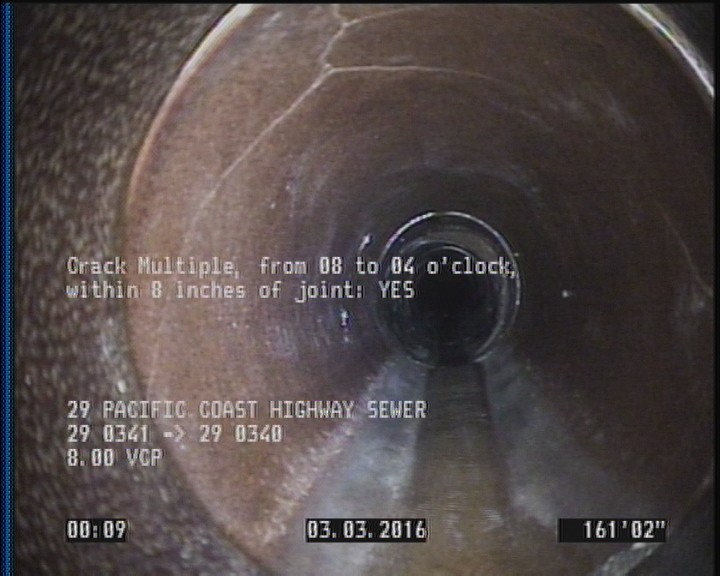

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    161.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P24361Work order 557696

Observations (21)

DistanceCodeObservation
45CC—
199CM—
0MWL—
84.3CM—
0MWM—
237.6CM—
185.3CM—
167.2TFC—
0AMH29 0341
73.5TFA—
106.3TFA—
251.9AMH29 0340
161.2CM—
214.9TFC—
18.2CM—
228CM—
223.7CM—
43.7TFC—
165.4TFA—
224.7TF—
132.5TFC—

Properties (6)

additional_info
SC305305
custom_field_two
3
customer
LACSD
datetime
2016-03-03T00:01:01-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
