Wastewater/Activity/PacpInspection/1.0Mar 4, 2016, 11:28 AM
29 0346_29 0345_20160304_043815.mp4
- Date
- 03/04/2016
- W/O
- 557696
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z01017
- PipeID
- P24366
- Time
- 3:28 AM
- Certificate
- U507-03-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3217
- Sewer Name
- 29 PACIFIC COAST HIGHWAY SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_557696_TV29045_2016MAR
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0346
- Downstream MH
- 29 0345
- Dir. of Survey
- Downstream
- Length Surveyed
- 152.9 ft.
- Total Length
- 152.9 ft.
- Structural Index
- 4
- Structural Quick
- 4721
- Structural Rating
- 30
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 30
Observation photos (3)

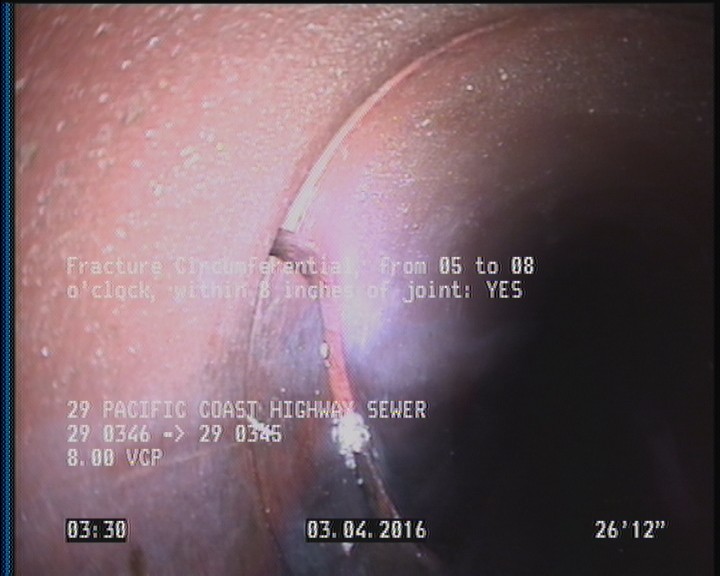

27 ft. - Fracture Circumferential, from 05 to 08 o'clock, within 8 inches of joint: YES

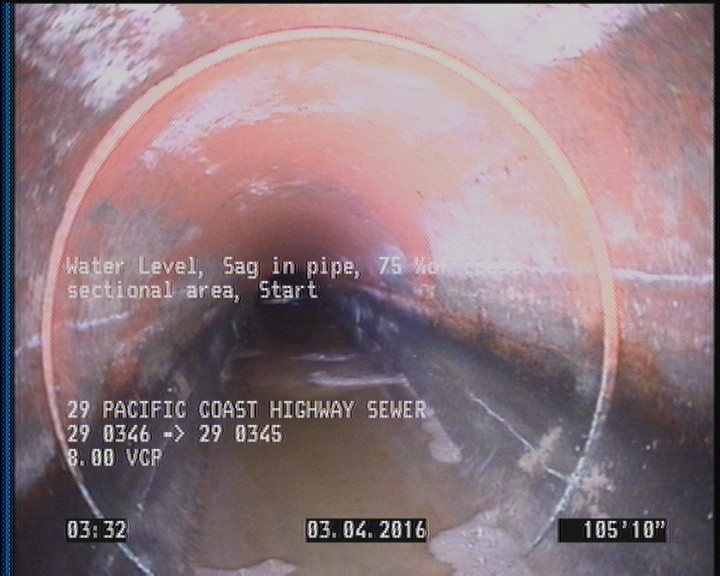

105.8 ft. - Water Level, Sag in pipe, 75 %of cross sectional area, Start

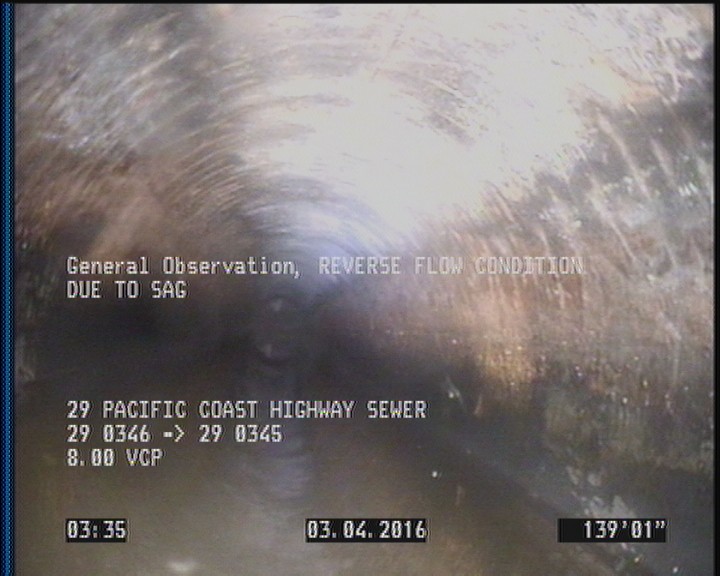

139.1 ft. - General Observation - REVERSE FLOW CONDITION DUE TO SAG
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 105.8 | MWLS | — |
| 27 | FC | — |
| 0 | AMH | 29 0346 |
| 139.1 | MGO | REVERSE FLOW CONDITION DUE TO SAG |
| 0 | MWM | — |
| 152.9 | AMH | 29 0345 |
| 139.1 | MWLS | — |
Properties (6)
- additional_info
- SC305306
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-03-04T03:28:39-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
