Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 18, 2017, 04:02 PM

  • 05 A 0535_05 A 0534_5182017_111852.mp4

Date
05/18/2017
W/O
0618889
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00315
PipeID
P07772
Time
9:02 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7407
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR
City
LAWNDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
17
Purpose
Routine Assessment
Project
20170518DF_JOA_1A_DISTRICT_5_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
05 A 0535
Downstream MH
05 A 0534
Dir. of Survey
Downstream
Length Surveyed
380.6 ft.
Total Length
380.6 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 05 A 0535 to 05 A 0534
MH: 05 A 0535MH: 05 A 0534downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:17 AM0.1 ft. MWL - Water Level, 15 %of cross sectional area0.1 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start58.5 ft. DAR - Deposits Attached Ragging, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start109.2 ft. MGP - General Photograph - SPALLING179.8 ft. MGP - General Photograph - AGGREGATE301.1 ft. MGP - General Photograph - SPALLING/AGGREGATE380.6 ft. DAR - Deposits Attached Ragging, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Finish380.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish380.6 ft. MSA - Survey Abandoned - GREASE CAKED UP ON TIRES380.6 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish380.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (6)

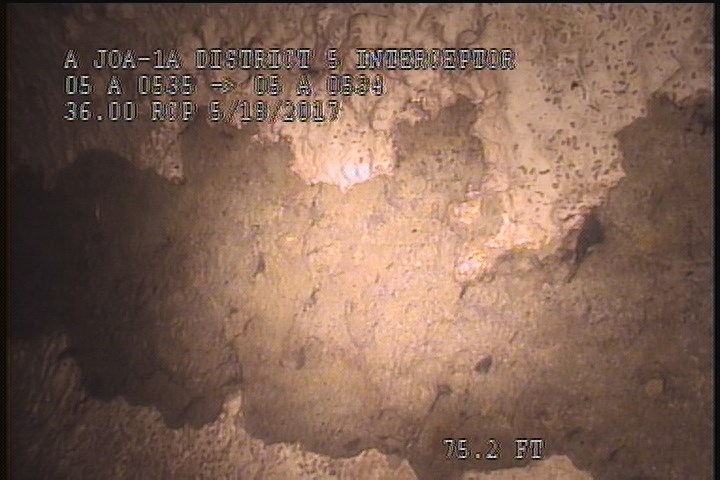

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

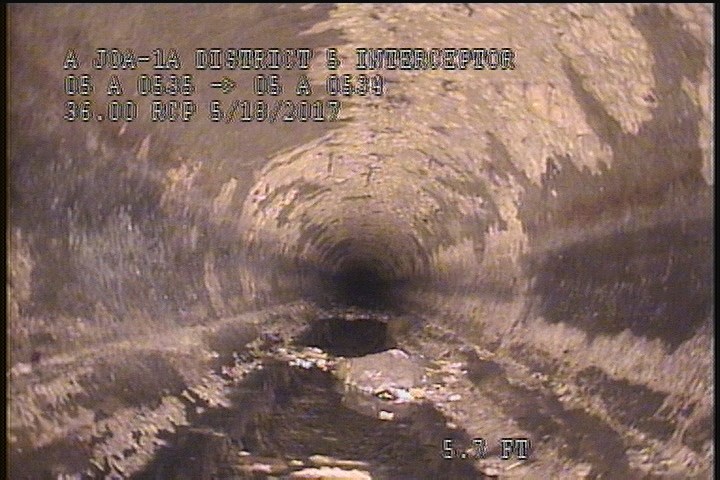

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

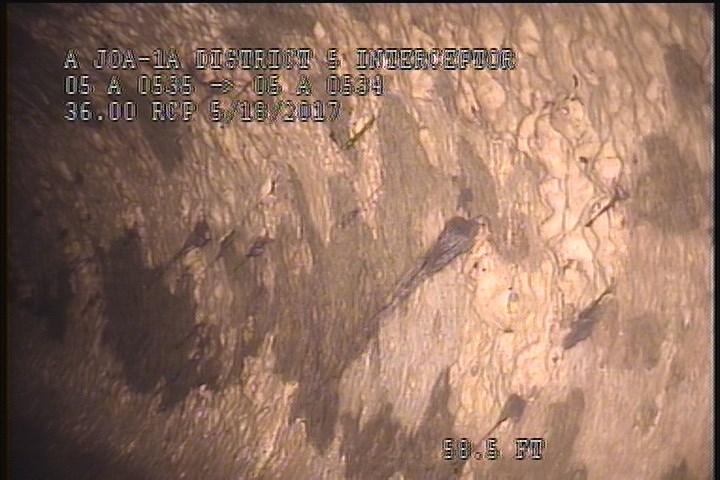

  • Deposits Attached Ragging, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

    58.5 ft. - Deposits Attached Ragging, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start

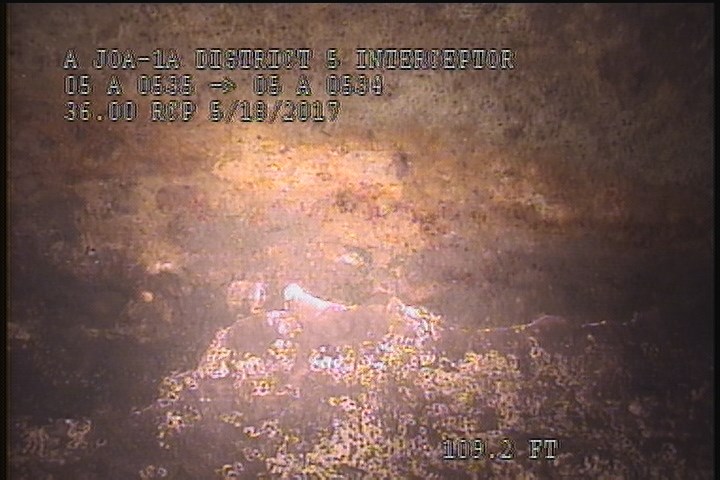

  • General Photograph - SPALLING

    109.2 ft. - General Photograph - SPALLING

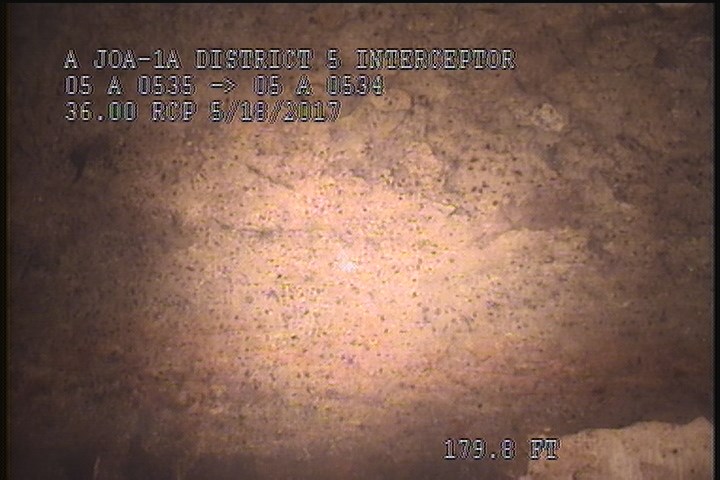

  • General Photograph - AGGREGATE

    179.8 ft. - General Photograph - AGGREGATE

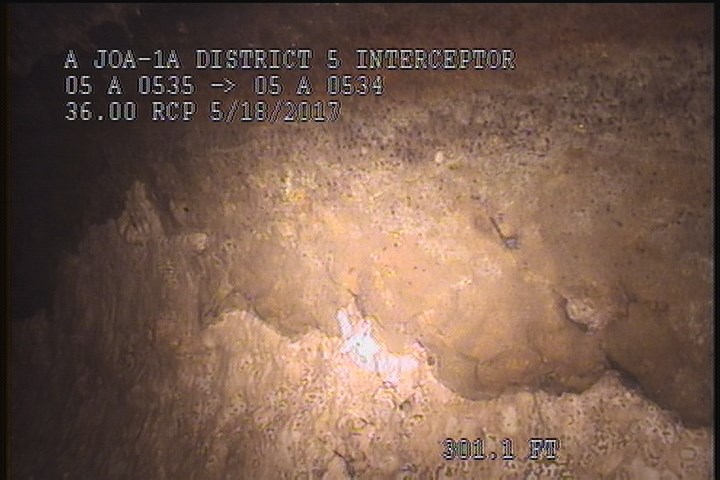

  • General Photograph - SPALLING/AGGREGATE

    301.1 ft. - General Photograph - SPALLING/AGGREGATE

All inspections of P07772Work order 0618889

Observations (15)

DistanceCodeObservation
2SAV—
380.6DAR—
58.5DAR—
380.6SAV—
109.2MGPSPALLING
2SSS—
380.6MSAGREASE CAKED UP ON TIRES
0AMH11:17 AM
301.1MGPSPALLING/AGGREGATE
380.6DAGS—
2DAGS—
380.6SSS—
179.8MGPAGGREGATE
0.1MWL—
0.1MWM—

Properties (5)

custom_field_two
5
customer
LACSD
datetime
2017-05-18T09:02:59-07:00
documentation
FRANKLIN,IGNACIO, BRAR
is_lateral_inspection
false
