Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 20, 2017, 07:50 AM

  • H 0615_H 0614_4202017_030116.mp4

Date
04/20/2017
W/O
0624599
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00191
PipeID
P11033
Time
12:50 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0500
Sewer Name
H JOINT OUTFALL H - UNIT 8H
City
EL MONTE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
24
Purpose
Capital Improvement Program Assesment
Project
20170420MDM_JOINT_OUTFALL_H_UNIT_8H
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
H 0615
Downstream MH
H 0614
Dir. of Survey
Downstream
Length Surveyed
10.5 ft.
Total Length
10.5 ft.
Structural Index
5
Structural Quick
5141
Structural Rating
9
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole H 0615 to H 0614
MH: H 0615MH: H 0614downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:55AM0 ft. MWL - Water Level, 0 %of cross sectional area - STOPLOG IN PLACE0 ft. MWM - Water Mark, 50 %of cross sectional area1 ft. MGO - General Observation - 2 BARREL SIPHON CONCRETE ENCASEMENT2 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR10 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG10 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish - LONG & CIRCUM REBAR10.5 ft. MSA - Survey Abandoned - DOWNLEG UPSTREAM SIPHON N/E

Observation photos (4)

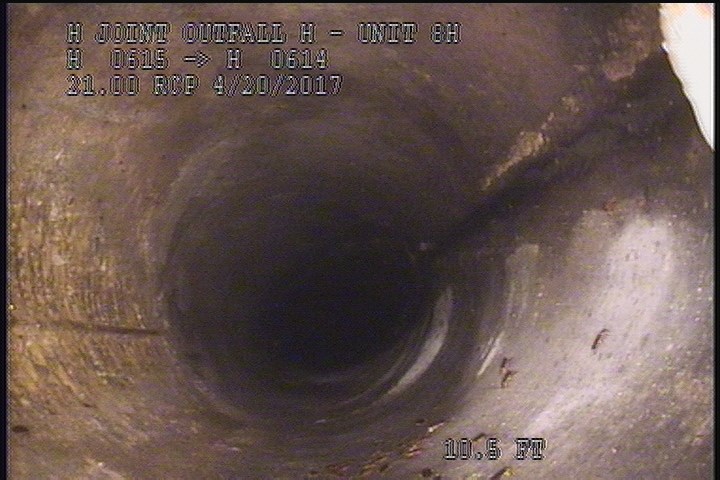

  • Water Level, 0 %of cross sectional area - STOPLOG IN PLACE

    0 ft. - Water Level, 0 %of cross sectional area - STOPLOG IN PLACE

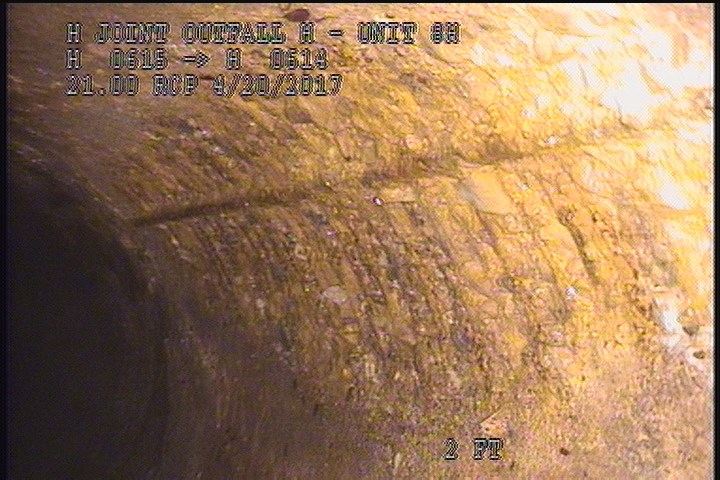

  • Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

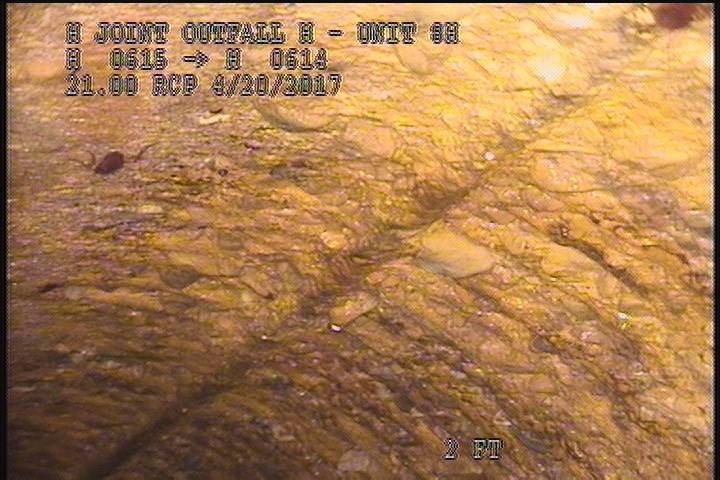

  • Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

    2 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start - LONG & CIRCUM REBAR

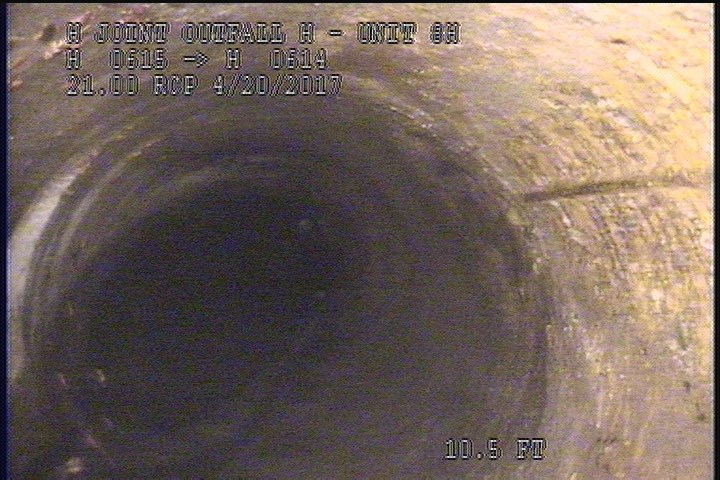

  • Survey Abandoned - DOWNLEG UPSTREAM SIPHON N/E

    10.5 ft. - Survey Abandoned - DOWNLEG UPSTREAM SIPHON N/E

All inspections of P11033Work order 0624599

Observations (9)

DistanceCodeObservation
0AMH1:55AM
2SAMSEVERE AGG
10SAMSEVERE AGG
10SRVLONG & CIRCUM REBAR
2SRVLONG & CIRCUM REBAR
1MGO2 BARREL SIPHON CONCRETE ENCASEMENT
10.5MSADOWNLEG UPSTREAM SIPHON N/E
0MWLSTOPLOG IN PLACE
0MWM—

Properties (7)

additional_info
DOWNLEG UPSTREAM SIPHON N/E BARREL
custom_field_three
LONG & CIRCUM REBAR VISIBLE-CONCRETE ENCASED SIPHO
custom_field_two
3
customer
LACSD
datetime
2017-04-20T00:50:46-07:00
documentation
MARTIN,MAMAMES,OLIVER 111
is_lateral_inspection
false
