Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 14, 2017, 08:16 AM

  • H 0070_H 0069_4142017_022816.mp4

Date
04/14/2017
W/O
0619086
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00164
PipeID
P10522
Time
1:16 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0495
Sewer Name
H JOINT OUTFALL H - UNIT 1E
City
S0UTH GATE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
11
Purpose
Routine Assessment
Project
20170414_JOINT_OUTFALL_H_UNIT_1E
Material
Reinforced Concrete Pipe
Shape
Circular
Height
35.5 in.
Upstream MH
H 0070
Downstream MH
H 0069
Dir. of Survey
Downstream
Length Surveyed
659.6 ft.
Total Length
659.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
5
O&M Quick
5342
O&M Rating
23
Overall Index
5
Overall Quick
—
Overall Rating
23
Pipe schematic from manhole H 0070 to H 0069
MH: H 0070MH: H 0069downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:30AM0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 80 %of cross sectional area11.8 ft. MGO - General Observation - PVC LINER28.1 ft. MGO - General Observation - 35.5" RCP-PVC56.9 ft. MGO - General Observation - 35.5" RCP-PVC56.9 ft. MWL - Water Level, 10 %of cross sectional area56.9 ft. MWM - Water Mark, 40 %of cross sectional area173.1 ft. MWM - Water Mark, 90 %of cross sectional area173.1 ft. MWL - Water Level, 60 %of cross sectional area251.9 ft. MWL - Water Level, 40 %of cross sectional area251.9 ft. MWM - Water Mark, 80 %of cross sectional area311 ft. MWM - Water Mark, 60 %of cross sectional area406 ft. MWM - Water Mark, 50 %of cross sectional area406 ft. MWL - Water Level, 20 %of cross sectional area617.7 ft. MGO - General Observation - 35.5" RCP-PVC653.2 ft. MGO - General Observation - LOOSE MASTIC OR LINER AT SOFFIT659.6 ft. AMH - Downstream Manhole, Survey Ends - 3:10AM

Observation photos (9)

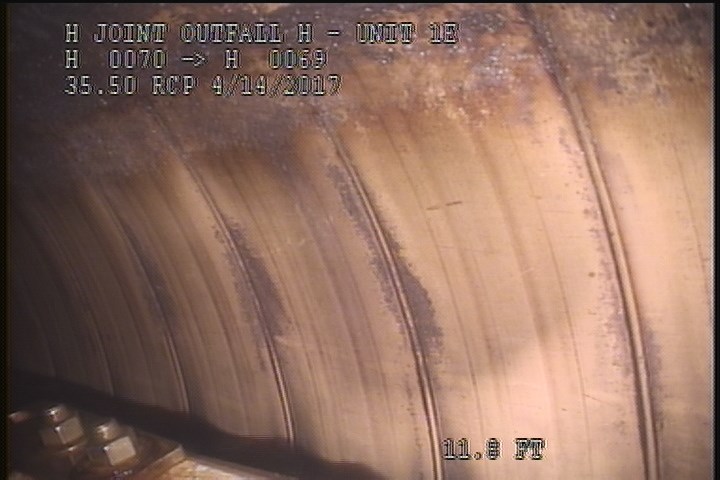

  • General Observation - PVC LINER

    11.8 ft. - General Observation - PVC LINER

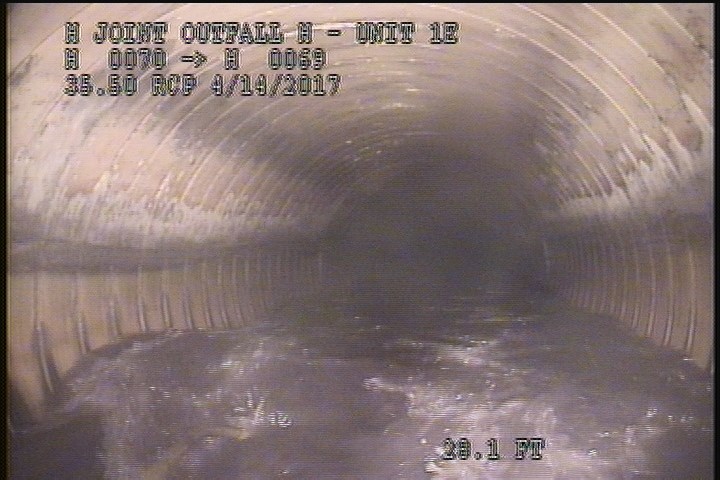

  • General Observation - 35.5" RCP-PVC

    28.1 ft. - General Observation - 35.5" RCP-PVC

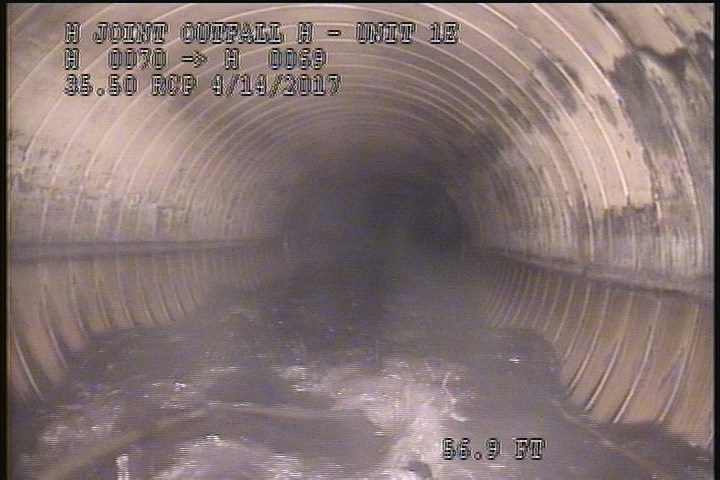

  • General Observation - 35.5" RCP-PVC

    56.9 ft. - General Observation - 35.5" RCP-PVC

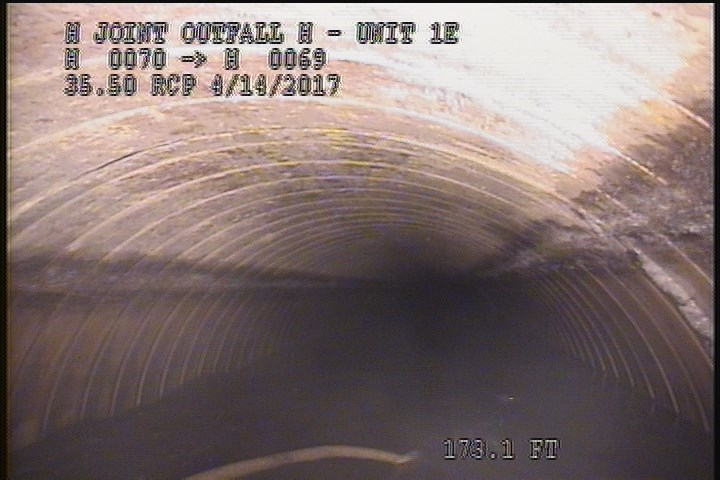

  • Water Mark, 90 %of cross sectional area

    173.1 ft. - Water Mark, 90 %of cross sectional area

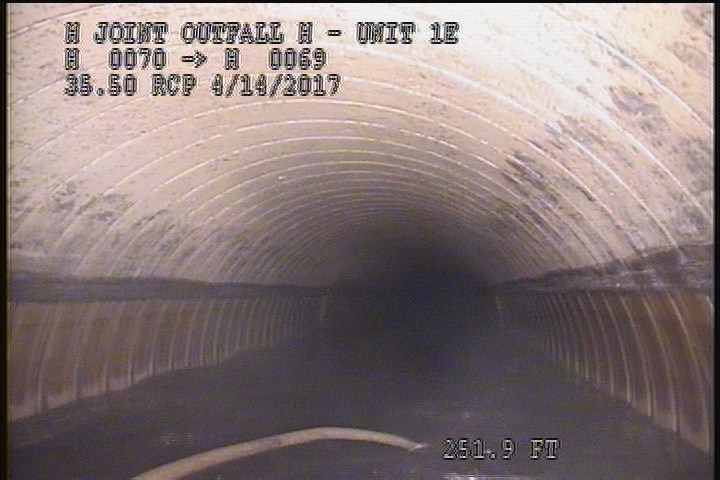

  • Water Mark, 80 %of cross sectional area

    251.9 ft. - Water Mark, 80 %of cross sectional area

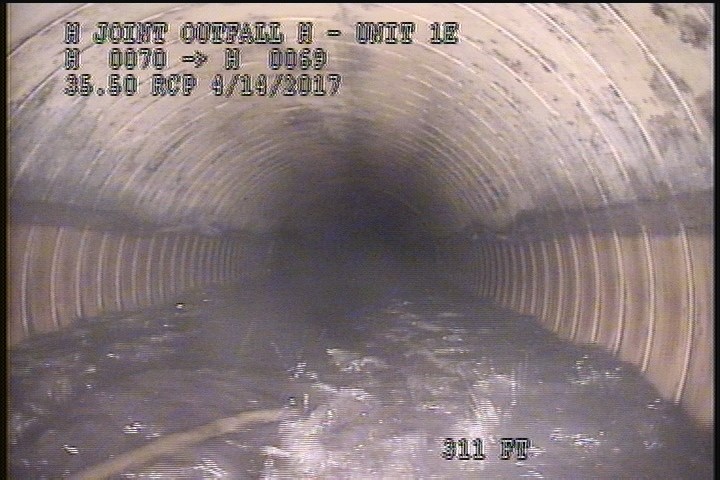

  • Water Mark, 60 %of cross sectional area

    311 ft. - Water Mark, 60 %of cross sectional area

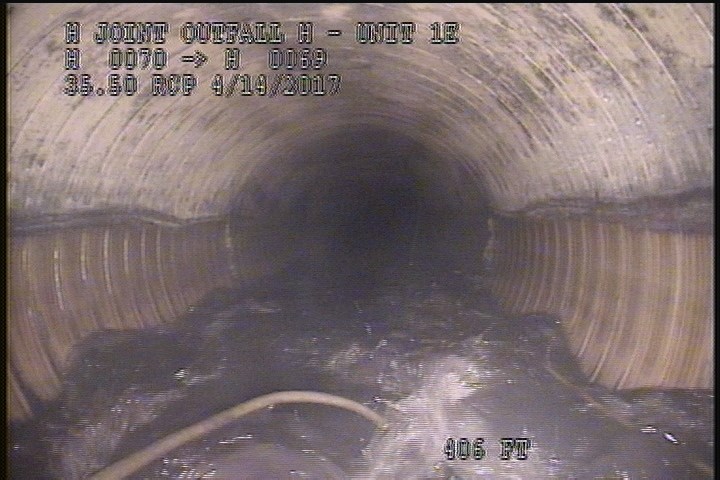

  • Water Mark, 50 %of cross sectional area

    406 ft. - Water Mark, 50 %of cross sectional area

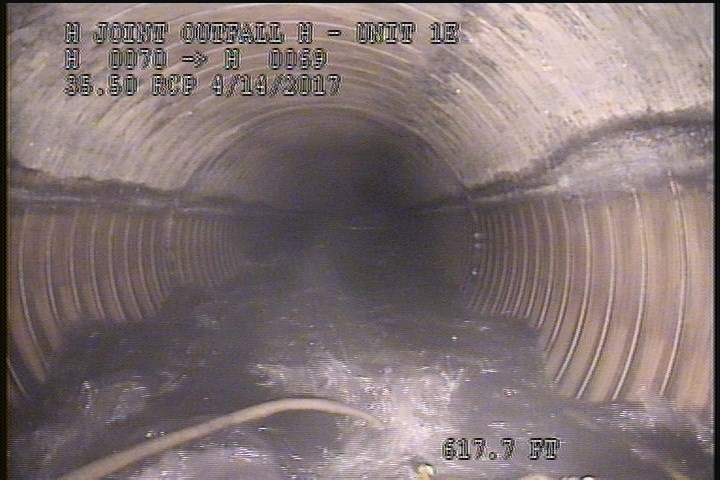

  • General Observation - 35.5" RCP-PVC

    617.7 ft. - General Observation - 35.5" RCP-PVC

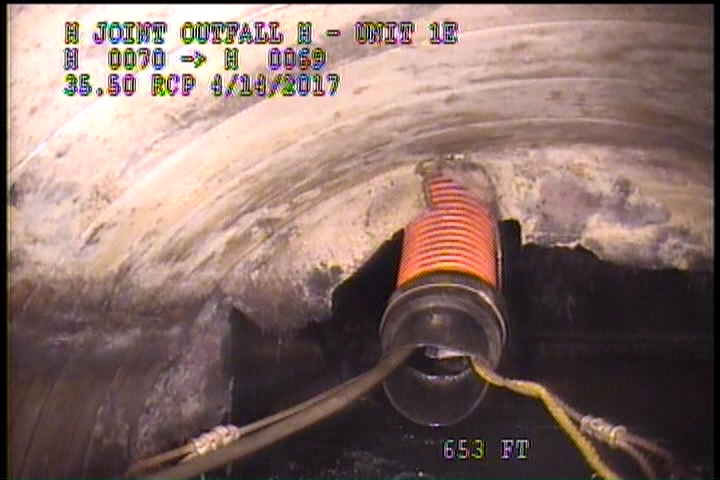

  • General Observation - LOOSE MASTIC OR LINER AT SOFFIT

    653.2 ft. - General Observation - LOOSE MASTIC OR LINER AT SOFFIT

All inspections of P10522Work order 0619086

Observations (18)

DistanceCodeObservation
0AMH2:30AM
251.9MWL—
251.9MWM—
56.9MGO35.5" RCP-PVC
0MWL—
653.2MGOLOOSE MASTIC OR LINER AT SOFFIT
173.1MWM—
659.6AMH3:10AM
56.9MWL—
0MWM—
406MWM—
28.1MGO35.5" RCP-PVC
406MWL—
56.9MWM—
311MWM—
173.1MWL—
11.8MGOPVC LINER
617.7MGO35.5" RCP-PVC

Properties (7)

custom_field_two
4
customer
LACSD
datetime
2017-04-14T01:16:56-07:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
lining
PVC LINER
year_laid
20021118
