Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 30, 2015, 12:03 PM

  • 22 0870_22 0869_20151230_042733.mp4

Date
12/30/2015
W/O
531046
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00803
PipeID
P17237
Time
4:03 AM
Certificate
U-109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2945
Sewer Name
22 DALTON TRUNK, SECTION 3
City
AZUSA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Routine Assessment
Project
WO_531046_TV22083_DEC2015
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
21 in.
Upstream MH
22 0870
Downstream MH
22 0869
Dir. of Survey
Downstream
Length Surveyed
460.6 ft.
Total Length
460.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
1
Overall Quick
—
Overall Rating
1
Pipe schematic from manhole 22 0870 to 22 0869
MH: 22 0870MH: 22 0869downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 08700 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 5 %of cross sectional area2 ft. MGO - General Observation - MAGNEZIUM H.O. 55% START12.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"20.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"64 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"88.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"120.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"128.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"184.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS193.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"225.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"233 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"281.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"284.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"293.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS353.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"362 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 4"457.9 ft. MGO - General Observation - MAGNEZIUM H.O. 55% FINISH460.6 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK460.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0869

Observation photos (2)

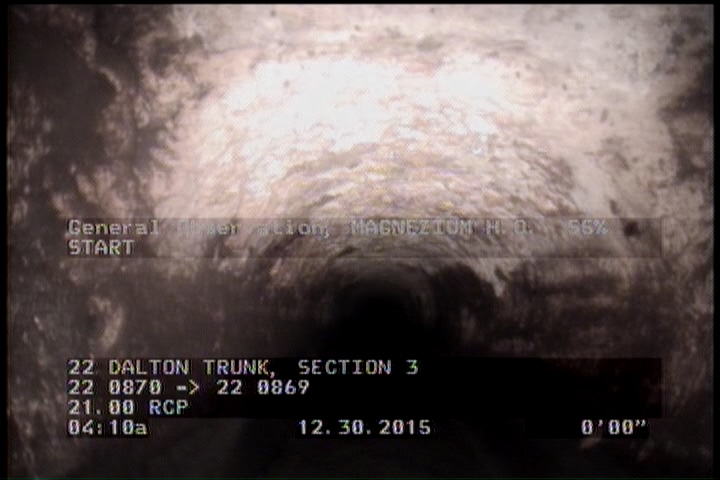

  • General Observation - MAGNEZIUM H.O. 55% START

    2 ft. - General Observation - MAGNEZIUM H.O. 55% START

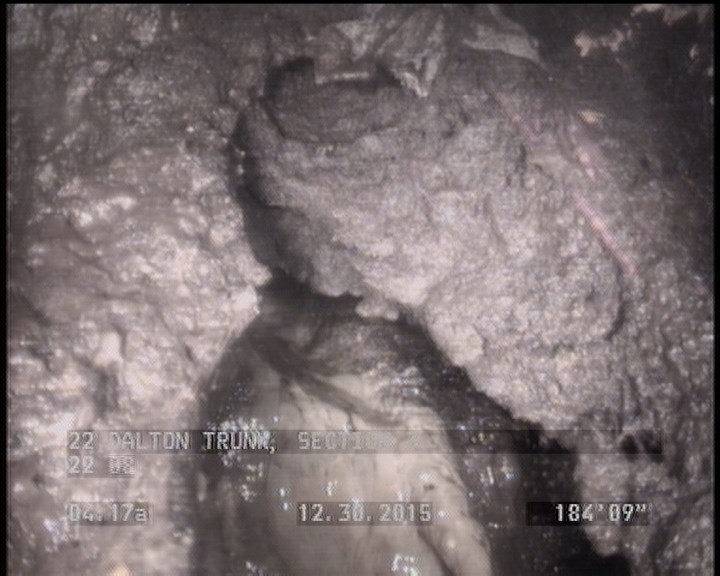

  • Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS

    184.7 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4" - ROOTS

All inspections of P17237Work order 531046

Observations (23)

DistanceCodeObservation
128.7TF—
184.7TFROOTS
225.5TF—
0AMH22 0870
362TFC—
0MWM—
120.7TF—
20.3TF—
293.8TFROOTS
12.3TF—
88.4TF—
233TF—
460.6MGOLATERAL AT MH 9 OCLOCK
0VC—
2MGOMAGNEZIUM H.O. 55% START
457.9MGOMAGNEZIUM H.O. 55% FINISH
460.6AMH22 0869
281.6TF—
193.1TF—
64TF—
353.2TF—
284.9TFC—
0MWL—

Properties (6)

additional_info
SC224956
custom_field_two
4
customer
LACSD
datetime
2015-12-30T04:03:26-08:00
documentation
PRO PIPE
is_lateral_inspection
false
