Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 17, 2015, 08:00 AM

  • 01 0125_01 0124_17122015_000213.mp4

Date
12/17/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02069
Time
12:00 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2964
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
15
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
18 in.
Upstream MH
01 0125
Downstream MH
01 0124
Dir. of Survey
Downstream
Length Surveyed
395.9 ft.
Total Length
395.9 ft.
Structural Index
2
Structural Quick
3B2C
Structural Rating
77
O&M Index
3
O&M Quick
413O
O&M Rating
238
Overall Index
3
Overall Quick
—
Overall Rating
315
Pipe schematic from manhole 01 0125 to 01 0124
MH: 01 0125MH: 01 0124downstream0 ft. MWL - Water Level, 50 %of cross sectional area0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 01251.7 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start1.7 ft. MGO - General Observation - MAGNEZIUM H.O. START35.3 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES40.8 ft. CS - Crack Spiral, from 01 to 02 o'clock, within 8 inches of joint: YES56.7 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES61.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES81.1 ft. CM - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES85.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES91.4 ft. CM - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES100.3 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES116.8 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES160.6 ft. CM - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES167.2 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES170.8 ft. CM - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES177.8 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES186 ft. CS - Crack Spiral, from 01 to 04 o'clock, within 8 inches of joint: YES191.9 ft. CM - Crack Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES212.1 ft. CS - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES217 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES242.3 ft. CS - Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES266.6 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES266.6 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES282.8 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES282.8 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES291.4 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES291.4 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES302.2 ft. CS - Crack Spiral, from 12 to 03 o'clock, within 8 inches of joint: YES311.3 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES316.3 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES321.5 ft. CM - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES326.4 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES336.7 ft. CM - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES357.8 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES362.1 ft. CM - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES393 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish393 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH395.9 ft. AMH - Downstream Manhole, Survey Ends - 01 0124

Observation photos (31)

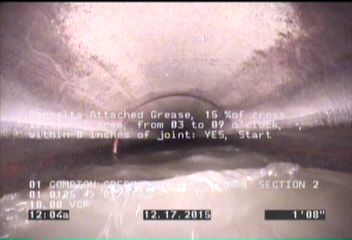

  • Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    1.7 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    35.3 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

  • Crack Spiral, from 01 to 02 o'clock, within 8 inches of joint: YES

    40.8 ft. - Crack Spiral, from 01 to 02 o'clock, within 8 inches of joint: YES

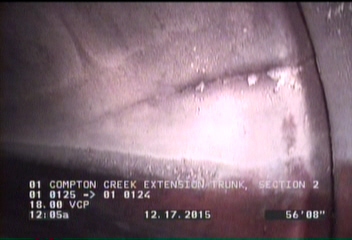

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    56.7 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

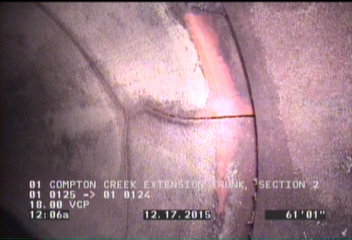

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    61.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

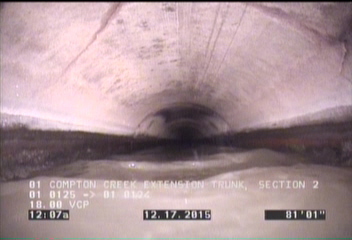

  • Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

    81.1 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

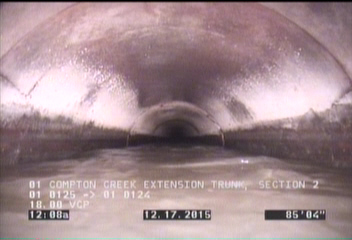

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    85.3 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

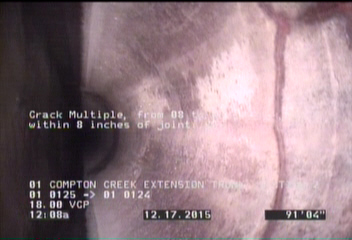

  • Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

    91.4 ft. - Crack Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES

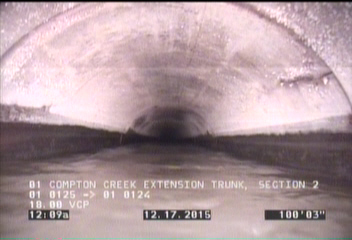

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    100.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

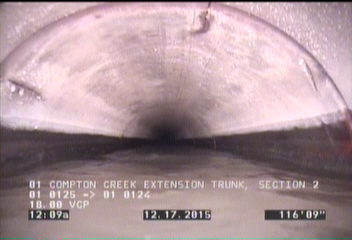

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    116.8 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

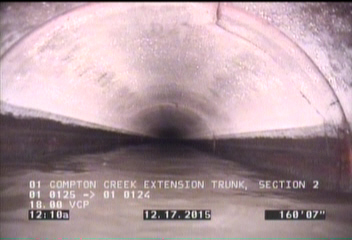

  • Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

    160.6 ft. - Crack Multiple, from 01 to 05 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    167.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

    170.8 ft. - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

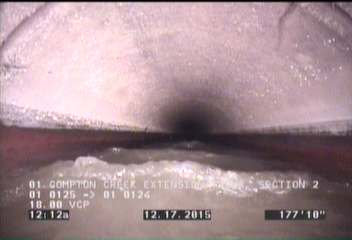

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    177.8 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

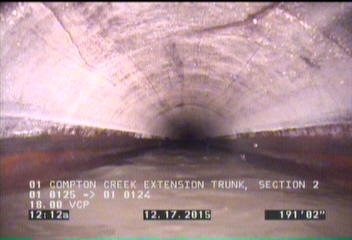

  • Crack Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES

    191.9 ft. - Crack Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES

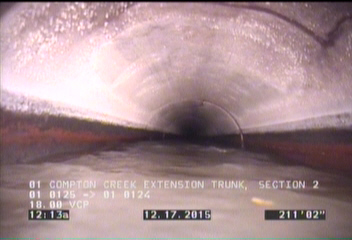

  • Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES

    212.1 ft. - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES

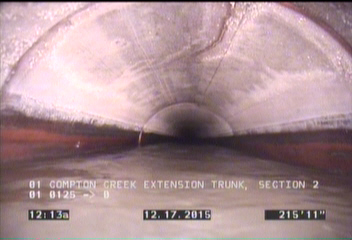

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    217 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

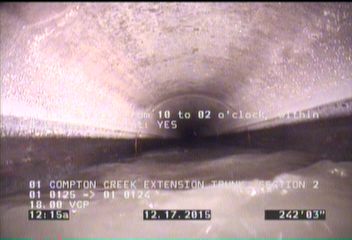

  • Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES

    242.3 ft. - Crack Spiral, from 10 to 02 o'clock, within 8 inches of joint: YES

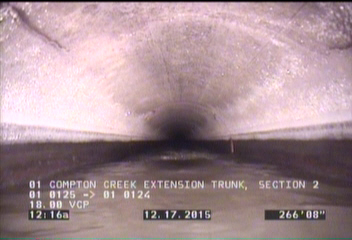

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    266.6 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    266.6 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    282.8 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

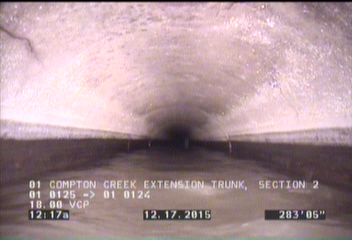

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    282.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    291.4 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    291.4 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

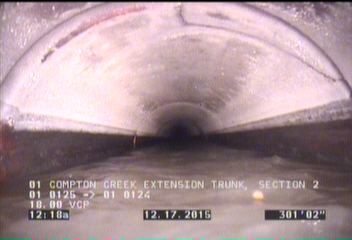

  • Crack Spiral, from 12 to 03 o'clock, within 8 inches of joint: YES

    302.2 ft. - Crack Spiral, from 12 to 03 o'clock, within 8 inches of joint: YES

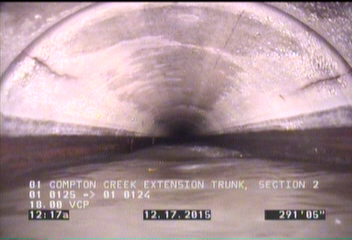

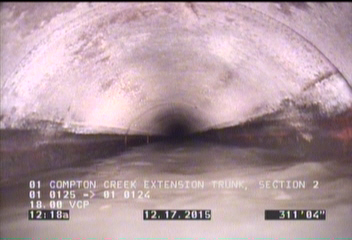

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    311.3 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

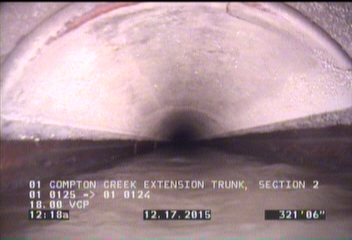

  • Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

    321.5 ft. - Crack Multiple, from 01 to 03 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    326.4 ft. - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

    336.7 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

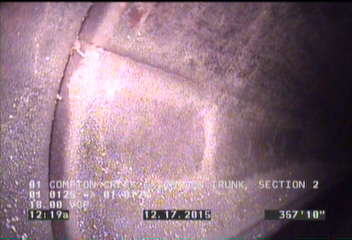

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    357.8 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

    362.1 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

All inspections of P02069Work order 524985

Observations (40)

DistanceCodeObservation
212.1CS—
160.6CM—
177.8CL—
40.8CS—
35.3CL—
395.9AMH01 0124
0MWL—
302.2CS—
266.6CL—
116.8CL—
100.3CL—
0MWM—
61.1CM—
326.4CM—
217CL—
186CS—
85.3CM—
362.1CM—
56.7CL—
1.7DAGS—
242.3CS—
191.9CM—
0AMH01 0125
266.6CL—
311.3CL—
291.4CL—
357.8CL—
1.7MGOMAGNEZIUM H.O. START
170.8CM—
81.1CM—
282.8CL—
336.7CM—
316.3CM—
291.4CL—
321.5CM—
393DAGS—
282.8CL—
91.4CM—
167.2CM—
393MGOMAGNEZIUM H.O. FINISH

Properties (6)

additional_info
SC224803
custom_field_two
3
customer
LACSD
datetime
2015-12-17T00:00:56-08:00
documentation
PRO PIPE
is_lateral_inspection
false
