01 0130_01 0129_16122015_011159.mp4
- Date
- 12/16/2015
- W/O
- 524985
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00204
- PipeID
- P02074
- Time
- 1:11 AM
- Certificate
- 12345
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2963
- Sewer Name
- 01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_524985_TV011104_NOV2015
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 01 0130
- Downstream MH
- 01 0129
- Dir. of Survey
- Downstream
- Length Surveyed
- 290.9 ft.
- Total Length
- 290.9 ft.
- Structural Index
- 2
- Structural Quick
- 4134
- Structural Rating
- 33
- O&M Index
- 3
- O&M Quick
- 413K
- O&M Rating
- 178
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 211
Observation photos (14)
28.1 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
38.1 ft. - Crack Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES

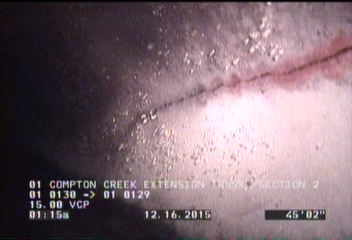

45.1 ft. - Crack Spiral, from 12 to 06 o'clock, within 8 inches of joint: YES
55.5 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
75.3 ft. - Crack Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES
89.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
94 ft. - Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES
104.1 ft. - Crack Longitudinal Hinge, 2, from 10 to 01 o'clock, within 8 inches of joint: YES
140 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
150 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES
175 ft. - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES
192.3 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
211 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

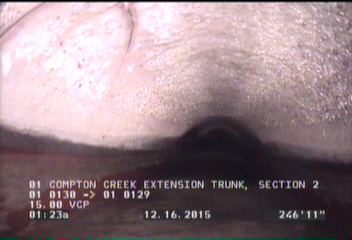

247.6 ft. - Crack Multiple, from 10 to 12 o'clock, within 8 inches of joint: YES
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 140 | CL | — |
| 89.1 | CL | — |
| 211 | CL | — |
| 0 | MWM | — |
| 247.6 | CM | — |
| 45.1 | CS | — |
| 290.5 | DAGS | — |
| 2.6 | DAGS | — |
| 192.3 | CL | — |
| 38.1 | CC | — |
| 290.9 | AMH | 01 0129 |
| 175 | CM | — |
| 94 | CM | — |
| 150 | CL | — |
| 75.3 | CS | — |
| 55.5 | CM | — |
| 0 | AMH | 01 0130 |
| 104.1 | CH2 | — |
| 28.1 | CL | — |
Properties (6)
- additional_info
- SC224802
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-16T01:11:07-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
