01 0131_01 0130_16122015_010103.mp4
- Date
- 12/16/2015
- W/O
- 524985
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00204
- PipeID
- P02075
- Time
- 12:59 AM
- Certificate
- 12345
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2963
- Sewer Name
- 01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_524985_TV011104_NOV2015
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 01 0131
- Downstream MH
- 01 0130
- Dir. of Survey
- Downstream
- Length Surveyed
- 147.7 ft.
- Total Length
- 147.7 ft.
- Structural Index
- 2
- Structural Quick
- 3129
- Structural Rating
- 21
- O&M Index
- 3
- O&M Quick
- 413E
- O&M Rating
- 91
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 112
Observation photos (11)

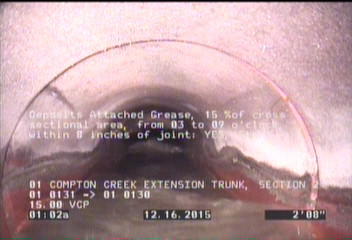

2.6 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

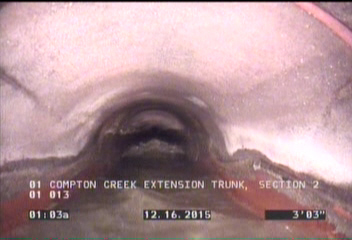

3.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

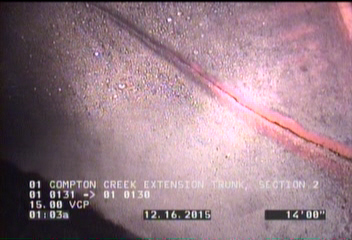

14 ft. - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES

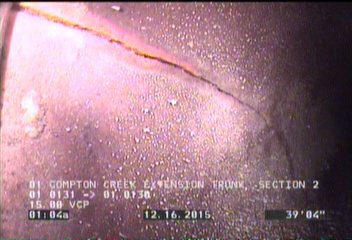

39.4 ft. - Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES
53.1 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES
53.5 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

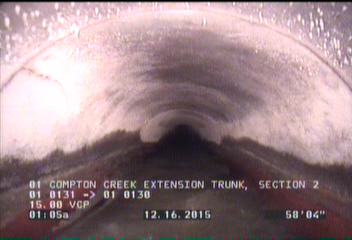

58.3 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
84.1 ft. - Crack Spiral, from 11 to 01 o'clock, within 8 inches of joint: YES
93.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
93.8 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

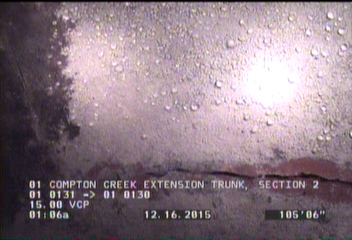

105.5 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 01 0131 |
| 93.8 | CL | — |
| 93.8 | CL | — |
| 0 | MWM | — |
| 14 | CS | — |
| 0 | MWL | — |
| 145.2 | DAGS | — |
| 53.5 | CL | — |
| 2.6 | DAGS | — |
| 105.5 | CM | — |
| 53.1 | CL | — |
| 147.7 | AMH | 01 0130 |
| 39.4 | CS | — |
| 84.1 | CS | — |
| 58.3 | CL | — |
| 3.2 | CL | — |
Properties (6)
- additional_info
- SC224802
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-16T00:59:57-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
