Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 10, 2015, 09:13 AM

  • 01 0153_01 0152_10122015_011424.mp4

Date
12/10/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02096
Time
1:13 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2960
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
15 in.
Upstream MH
01 0152
Downstream MH
01 0153
Dir. of Survey
Upstream
Length Surveyed
331.4 ft.
Total Length
331.4 ft.
Structural Index
2
Structural Quick
4132
Structural Rating
22
O&M Index
4
O&M Quick
4L00
O&M Rating
260
Overall Index
4
Overall Quick
—
Overall Rating
282
Pipe schematic from manhole 01 0152 to 01 0153
MH: 01 0152MH: 01 0153upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 01533 ft. DAGS - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish7.5 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES43.3 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES61.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES126.3 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES133.6 ft. CM - Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES183.3 ft. CM - Crack Multiple, from 02 to 06 o'clock, within 8 inches of joint: YES202.8 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES224.6 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES259.7 ft. CL - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES324.3 ft. DAGS - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start331.4 ft. MWM - Water Mark, 70 %of cross sectional area331.4 ft. MWL - Water Level, 50 %of cross sectional area331.4 ft. AMH - Downstream Manhole, Survey Begins - 01 0152

Observation photos (9)

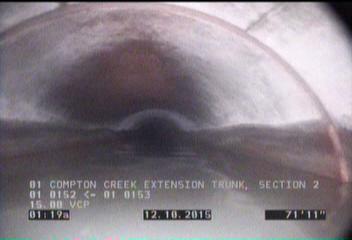

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    71.7 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

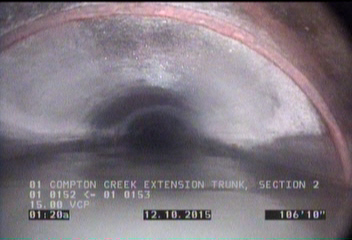

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    106.8 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

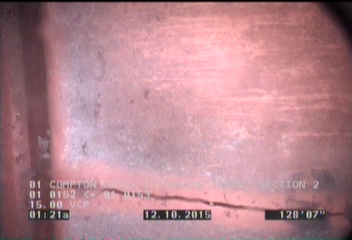

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    128.6 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 02 to 06 o'clock, within 8 inches of joint: YES

    148.1 ft. - Crack Multiple, from 02 to 06 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES

    197.8 ft. - Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES

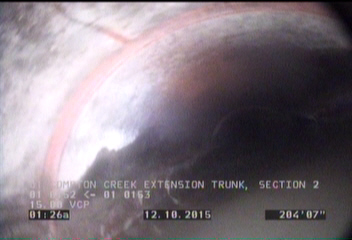

  • Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    205.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

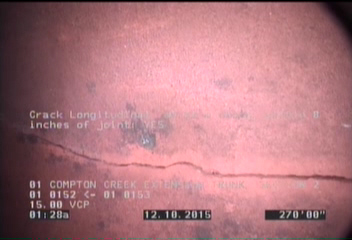

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    270 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

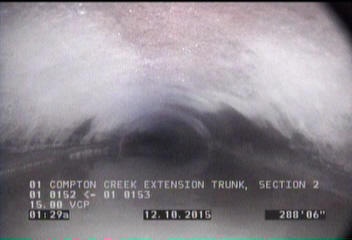

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    288.1 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

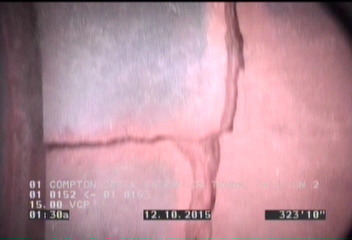

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    323.9 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P02096Work order 524985

Observations (15)

DistanceCodeObservation
128.6CL—
197.8CM—
288.1CL—
71.7CL—
205.1CL—
270CL—
331.4AMH01 0153
0MWM—
323.9FM—
148.1CM—
7.1DAGS—
0MWL—
328.4DAGS—
106.8CL—
0AMH01 0152

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2015-12-10T01:13:12-08:00
documentation
PRO PIPE
is_lateral_inspection
false
