Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 10, 2015, 09:57 AM

  • 01 0155_01 0154_10122015_015817.mp4

Date
12/10/2015
W/O
524985
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00204
PipeID
P02098
Time
1:57 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2960
Sewer Name
01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_524985_TV011104_NOV2015
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
18 in.
Upstream MH
01 0154
Downstream MH
01 0155
Dir. of Survey
Upstream
Length Surveyed
309.7 ft.
Total Length
309.7 ft.
Structural Index
2
Structural Quick
2400
Structural Rating
8
O&M Index
4
O&M Quick
4K11
O&M Rating
249
Overall Index
4
Overall Quick
—
Overall Rating
257
Pipe schematic from manhole 01 0154 to 01 0155
MH: 01 0154MH: 01 0155upstream0 ft. MSA - Survey Abandoned - GREASE UNABLE TO CONTINUE0 ft. DAGS - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish78.4 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES83.2 ft. CS - Crack Spiral, from 02 to 06 o'clock, within 8 inches of joint: YES87.9 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES303.9 ft. CS - Crack Spiral, from 06 to 09 o'clock, within 8 inches of joint: YES307.4 ft. DAGS - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start309.7 ft. MWL - Water Level, 30 %of cross sectional area309.7 ft. AMH - Downstream Manhole, Survey Begins - 01 0154309.7 ft. VC - Vermin Cockroach, within 8 inches of joint: YES - MULTIPLE309.7 ft. MWM - Water Mark, 60 %of cross sectional area

Observation photos (6)

  • Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

  • Crack Spiral, from 06 to 09 o'clock, within 8 inches of joint: YES

    5.8 ft. - Crack Spiral, from 06 to 09 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    221.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

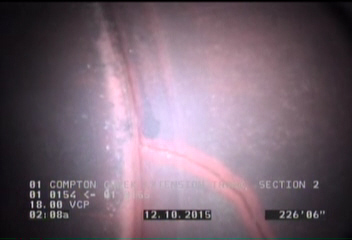

  • Crack Spiral, from 02 to 06 o'clock, within 8 inches of joint: YES

    226.5 ft. - Crack Spiral, from 02 to 06 o'clock, within 8 inches of joint: YES

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    231.3 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

  • Survey Abandoned - GREASE UNABLE TO CONTINUE

    309.7 ft. - Survey Abandoned - GREASE UNABLE TO CONTINUE

All inspections of P02098Work order 524985

Observations (11)

DistanceCodeObservation
309.7MSAGREASE UNABLE TO CONTINUE
0MWL—
0AMH01 0154
221.8CL—
2.3DAGS—
5.8CS—
0VCMULTIPLE
231.3CL—
226.5CS—
0MWM—
309.7DAGS—

Properties (5)

custom_field_two
5
customer
LACSD
datetime
2015-12-10T01:57:11-08:00
documentation
PRO PIPE
is_lateral_inspection
false
