01 0137_01 0136_15122015_225535.mp4
- Date
- 12/15/2015
- W/O
- 524985
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00204
- PipeID
- P02081
- Time
- 10:54 PM
- Certificate
- 12345
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2963
- Sewer Name
- 01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_524985_TV011104_NOV2015
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 01 0137
- Downstream MH
- 01 0136
- Dir. of Survey
- Downstream
- Length Surveyed
- 300.7 ft.
- Total Length
- 300.7 ft.
- Structural Index
- 2
- Structural Quick
- 382B
- Structural Rating
- 52
- O&M Index
- 3
- O&M Quick
- 413K
- O&M Rating
- 181
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 233
Observation photos (22)
5.8 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES
22.3 ft. - Crack Spiral, from 12 to 03 o'clock, within 8 inches of joint: YES
30.1 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
40.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

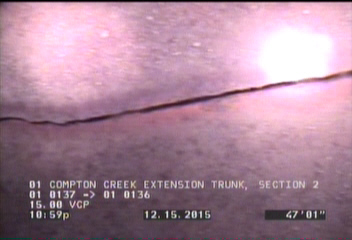

47.1 ft. - Crack Spiral, from 12 to 03 o'clock, within 8 inches of joint: YES
76 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
80.1 ft. - Crack Spiral, from 12 to 01 o'clock, within 8 inches of joint: YES
92.2 ft. - Crack Multiple, from 12 to 05 o'clock, within 8 inches of joint: YES

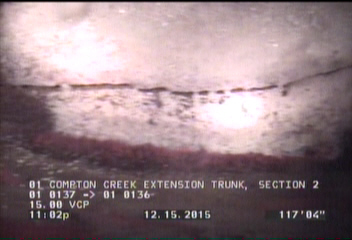

117.3 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES
120.1 ft. - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES
141.1 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES
170.1 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

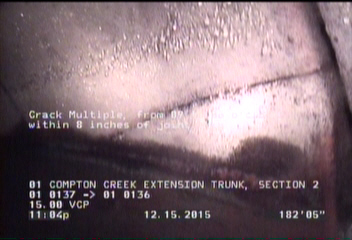

182.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
193.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

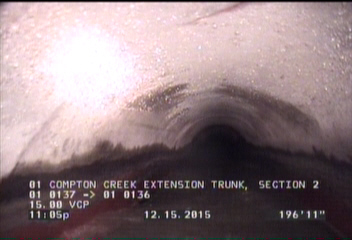

196.1 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES
222.6 ft. - Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

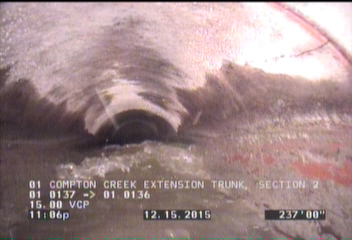

237 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES
252 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
261.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES
272.9 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES
281.1 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES
288.5 ft. - Crack Spiral, from 07 to 12 o'clock, within 8 inches of joint: YES
Observations (28)
| Distance | Code | Observation |
|---|---|---|
| 141.1 | CL | — |
| 237 | CL | — |
| 92.2 | CM | — |
| 288.5 | CS | — |
| 182.4 | CM | — |
| 0 | AMH | 01 0137 |
| 40.1 | CL | — |
| 281.1 | CL | — |
| 193.4 | CL | — |
| 80.1 | CS | — |
| 47.1 | CS | — |
| 252 | CL | — |
| 222.6 | CM | — |
| 300.7 | AMH | 01 0136 |
| 272.9 | CM | — |
| 117.3 | CM | — |
| 2.7 | DAGS | — |
| 30.1 | CL | — |
| 0 | MWM | — |
| 297.5 | DAGS | — |
| 120.1 | CM | — |
| 170.1 | CL | — |
| 0 | MWL | — |
| 261.1 | CL | — |
| 5.8 | CM | — |
| 196.1 | CM | — |
| 22.3 | CS | — |
| 76 | CL | — |
Properties (6)
- additional_info
- SC224802
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-15T22:54:46-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
