01 0143_01 0142_15122015_030138.mp4
- Date
- 12/15/2015
- W/O
- 524985
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00204
- PipeID
- P02086
- Time
- 3:00 AM
- Certificate
- 12345
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2962
- Sewer Name
- 01 COMPTON CREEK EXTENSION TRUNK, SECTION 2
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_524985_TV011104_NOV2015
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Lining Method
- Segmented Panel
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 01 0143
- Downstream MH
- 01 0142
- Dir. of Survey
- Downstream
- Length Surveyed
- 148.7 ft.
- Total Length
- 148.7 ft.
- Structural Index
- 2
- Structural Quick
- 332A
- Structural Rating
- 31
- O&M Index
- 4
- O&M Quick
- 4E00
- O&M Rating
- 120
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 151
Observation photos (14)
2 ft. - Deposits Attached Grease, 30 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

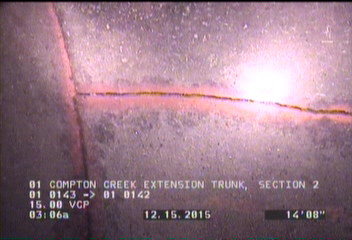

14.7 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

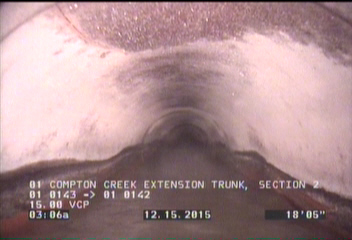

18.3 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

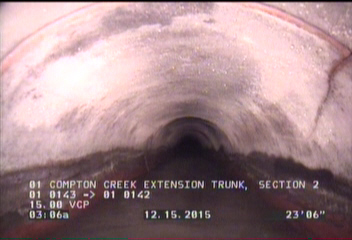

23.4 ft. - Crack Spiral, from 02 to 03 o'clock, within 8 inches of joint: YES
29.9 ft. - Crack Multiple, from 07 to 10 o'clock, within 8 inches of joint: YES

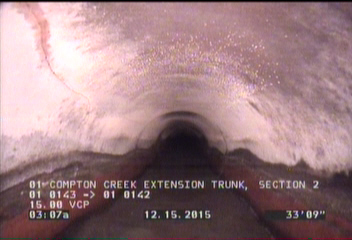

33.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

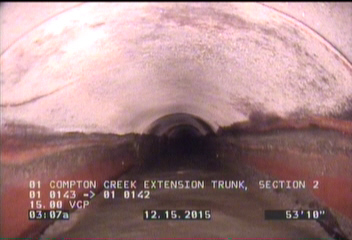

53.8 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

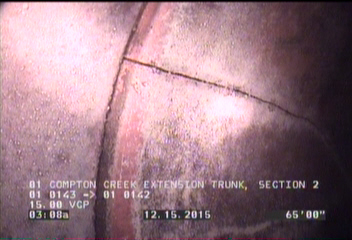

65 ft. - Crack Spiral, from 07 to 11 o'clock, within 8 inches of joint: YES
70.7 ft. - Crack Multiple, from 09 to 01 o'clock, within 8 inches of joint: YES

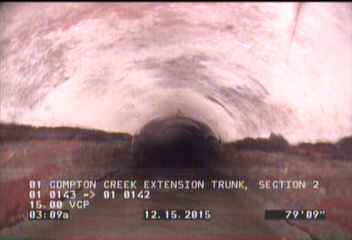

79.6 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

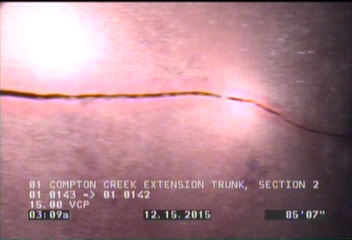

85.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

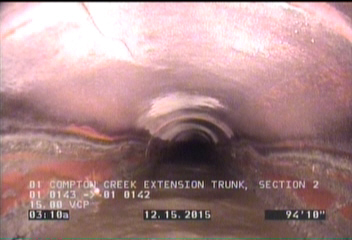

94.8 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES

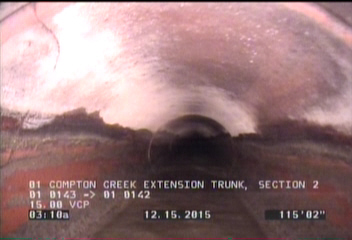

115.1 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

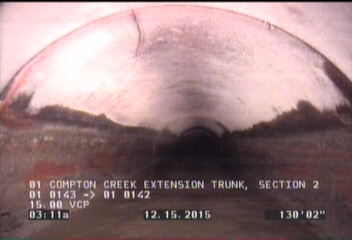

130.6 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 14.7 | CL | — |
| 18.3 | CL | — |
| 70.7 | CM | — |
| 148.7 | AMH | 01 0142 |
| 65 | CS | — |
| 115.1 | CM | — |
| 85.6 | CL | — |
| 146.6 | DAGS | — |
| 0 | MWM | — |
| 33.8 | CL | — |
| 23.4 | CS | — |
| 29.9 | CM | — |
| 8.8 | CL | — |
| 0 | AMH | 01 0143 |
| 130.6 | CL | — |
| 2 | DAGS | — |
| 53.8 | CL | — |
| 94.8 | CL | — |
| 79.6 | CL | — |
Properties (6)
- additional_info
- SC224801
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2015-12-15T03:00:41-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
