Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 18, 2015, 12:03 PM

  • 01 0162_01 0254_20151218_042224.mp4

Date
12/18/2015
W/O
521005
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00218
PipeID
P01300
Time
4:03 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2966
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_521005_TV01063_NOV2015
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
18 in.
Upstream MH
01 0254
Downstream MH
01 0162
Dir. of Survey
Upstream
Length Surveyed
273 ft.
Total Length
273 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
412J
O&M Rating
111
Overall Index
2
Overall Quick
—
Overall Rating
116
Pipe schematic from manhole 01 0254 to 01 0162
MH: 01 0254MH: 01 0162upstream0 ft. AMH - Upstream Manhole, Survey Ends - 01 01622.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish57.9 ft. TFB - Tap Factory Made Abandoned, at 11 o'clock, -, within 8 inches of joint: YES, 6"106.7 ft. TFB - Tap Factory Made Abandoned, at 11 o'clock, -, within 8 inches of joint: YES, 6"111.7 ft. CS - Crack Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES150.9 ft. TFB - Tap Factory Made Abandoned, at 11 o'clock, -, within 8 inches of joint: YES, 6"150.9 ft. CM - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES195.9 ft. TFB - Tap Factory Made Abandoned, at 11 o'clock, -, within 8 inches of joint: YES, 6"265.9 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start272.9 ft. VC - Vermin Cockroach, within 8 inches of joint: NO273 ft. MWM - Water Mark, 50 %of cross sectional area273 ft. AMH - Downstream Manhole, Survey Begins - 01 0254273 ft. MWL - Water Level, 5 %of cross sectional area273 ft. MGO - General Observation - CONNECTION AT MANHOLE

Observation photos (2)

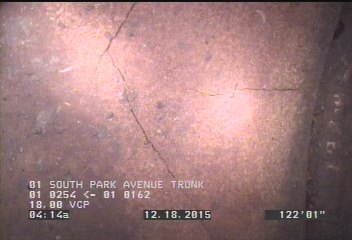

  • Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

    122.1 ft. - Crack Multiple, from 07 to 11 o'clock, within 8 inches of joint: YES

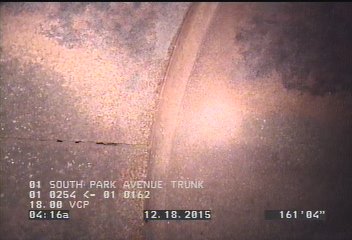

  • Crack Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES

    161.3 ft. - Crack Spiral, from 08 to 11 o'clock, within 8 inches of joint: YES

All inspections of P01300Work order 521005

Observations (14)

DistanceCodeObservation
161.3CS—
0MWM—
215.1TFB—
166.3TFB—
0AMH01 0254
273AMH01 0162
0.1VC—
0MWL—
7.1DAGS—
0MGOCONNECTION AT MANHOLE
122.1TFB—
77.1TFB—
122.1CM—
270.8DAGS—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2015-12-18T04:03:51-08:00
documentation
PRO PIPE
is_lateral_inspection
false
