Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 18, 2015, 08:37 AM

  • 01 0238_01 1404_20151218_010545.mp4

Date
12/18/2015
W/O
521005
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00218
PipeID
P01283
Time
12:37 AM
Certificate
12345
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K2966
Sewer Name
01 SOUTH PARK AVENUE TRUNK
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
12
Purpose
Routine Assessment
Project
WO_521005_TV01063_NOV2015
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Lining Method
Segmented Panel
Shape
Circular
Height
18 in.
Upstream MH
01 0238
Downstream MH
01 1404
Dir. of Survey
Downstream
Length Surveyed
310.3 ft.
Total Length
310.3 ft.
Structural Index
3
Structural Quick
3300
Structural Rating
9
O&M Index
3
O&M Quick
413K
O&M Rating
184
Overall Index
3
Overall Quick
—
Overall Rating
193
Pipe schematic from manhole 01 0238 to 01 1404
MH: 01 0238MH: 01 1404downstream0 ft. MGO - General Observation - CONNECTION AT MANHOLE 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 01 02380 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area7.1 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start10.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6"21.9 ft. MGO - General Observation - MAGNEZIUM H.O. START36.8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6"39.7 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"60.6 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6"72.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6"87.1 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6"110.5 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"128.4 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"149.2 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6"157.7 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6"187.4 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6"192.9 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6"213.8 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6"225.6 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: YES, 6"272.8 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 8"272.8 ft. CM - Crack Multiple, from 12 to 06 o'clock, within 8 inches of joint: YES286.7 ft. CM - Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES301.4 ft. CM - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES307.3 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish309.6 ft. MGO - General Observation - CONNECTION AT MANHOLE309.6 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH309.9 ft. MGO - General Observation - CONNECTION AT MANHOLE 3 O'CLOCK310.3 ft. AMH - Downstream Manhole, Survey Ends - 01 1404

Observation photos (3)

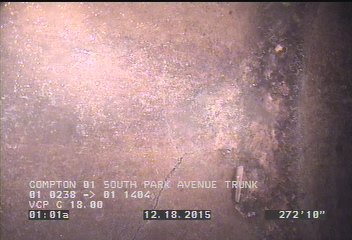

  • Crack Multiple, from 12 to 06 o'clock, within 8 inches of joint: YES

    272.8 ft. - Crack Multiple, from 12 to 06 o'clock, within 8 inches of joint: YES

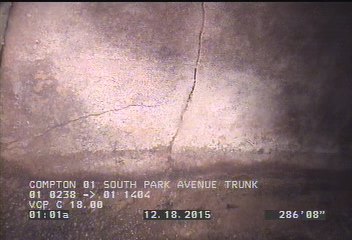

  • Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

    286.7 ft. - Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

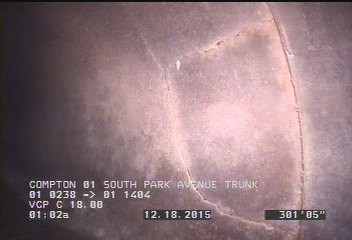

  • Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

    301.4 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

All inspections of P01283Work order 521005

Observations (29)

DistanceCodeObservation
7.1DAGS—
128.4TFC—
36.8TF—
310.3AMH01 1404
0MGOCONNECTION AT MANHOLE 3 O'CLOCK
39.7TFC—
72.4TB—
309.6MGOCONNECTION AT MANHOLE
307.3DAGS—
187.4TF—
213.8TF—
0AMH01 0238
301.4CM—
192.9TF—
110.5TFC—
149.2TF—
225.6TF—
309.9MGOCONNECTION AT MANHOLE 3 O'CLOCK
10.3TF—
0MWM—
21.9MGOMAGNEZIUM H.O. START
272.8TB—
309.6MGOMAGNEZIUM H.O. FINISH
60.6TF—
87.1TF—
272.8CM—
0MWL—
286.7CM—
157.7TF—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2015-12-18T00:37:30-08:00
documentation
PRO PIPE
is_lateral_inspection
false
