Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 24, 2017, 08:32 AM

  • B 0203_B 0202_4242017_032305.mp4

Date
04/24/2017
W/O
0624585
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00076
PipeID
P08700
Time
1:32 AM
Certificate
U-104-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0503
Sewer Name
B JOINT OUTFALL B - UNIT 1D RELIEF
City
MONTEBELLO
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
15
Purpose
Routine Assessment
Project
20170424MDM_JOINT_OUTFALL_B_UNIT_1D_RELIEF
Material
Reinforced Concrete Pipe
Shape
Circular
Height
45 in.
Upstream MH
B 0203
Downstream MH
B 0202
Dir. of Survey
Downstream
Length Surveyed
429.7 ft.
Total Length
429.7 ft.
Structural Index
2
Structural Quick
3122
Structural Rating
7
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole B 0203 to B 0202
MH: B 0203MH: B 0202downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:55AM2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING FLAKING CONCRETE2 ft. MGO - General Observation - MAG COAT 30% START 8:00 TO 4:002 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start43.4 ft. MGO - General Observation - MAG COAT 70% START155.2 ft. SAV - Surface Aggregate Visible, from 02 to 03 o'clock, within 8 inches of joint: YES - SPORATIC SEVERE AGG322.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - FLAKING CONCRETE429.2 ft. MGO - General Observation - MAG COAT 70% FINISH429.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish429.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - BLISTERING ,FLAKING CONCRETE429.7 ft. AMH - Downstream Manhole, Survey Ends - 3:20AM

Observation photos (6)

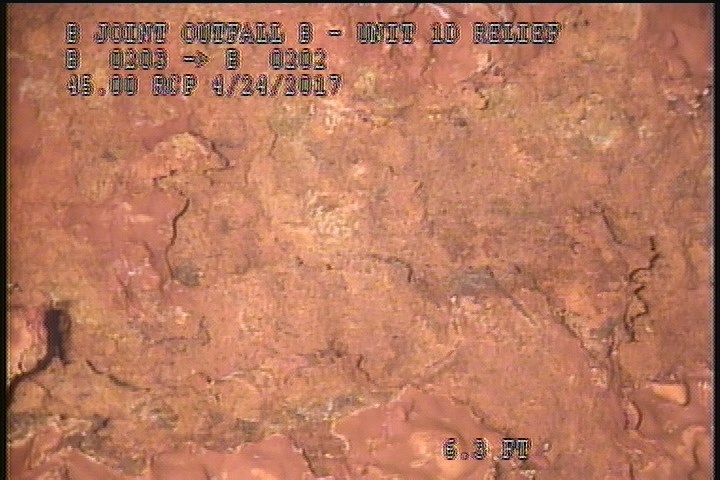

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING FLAKING CONCRETE

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING FLAKING CONCRETE

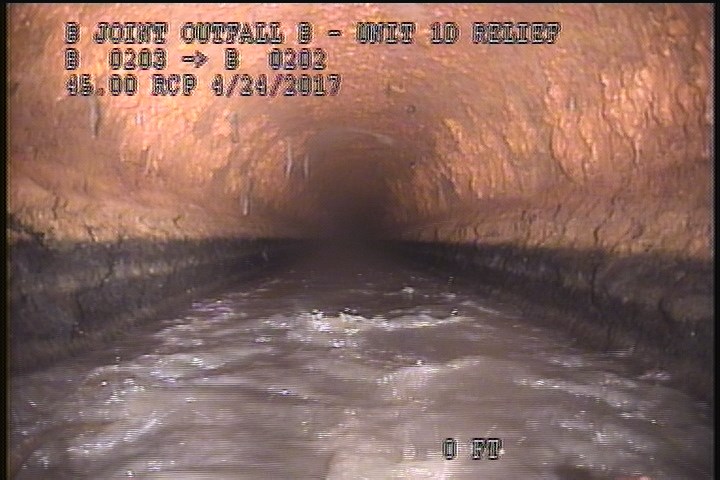

  • General Observation - MAG COAT 30% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 30% START 8:00 TO 4:00

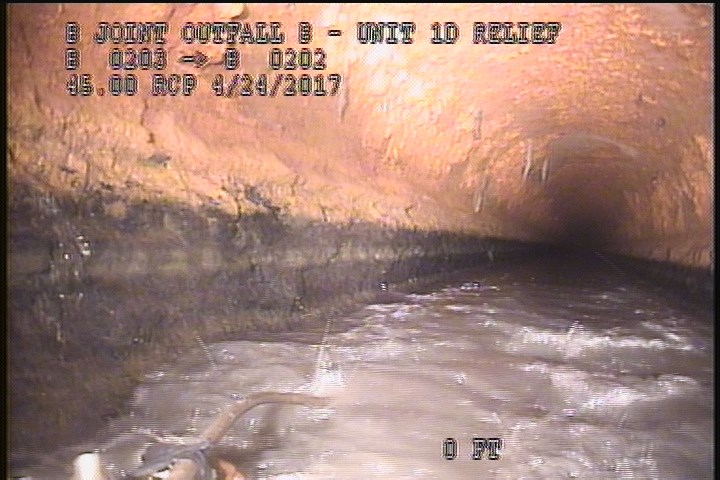

  • Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

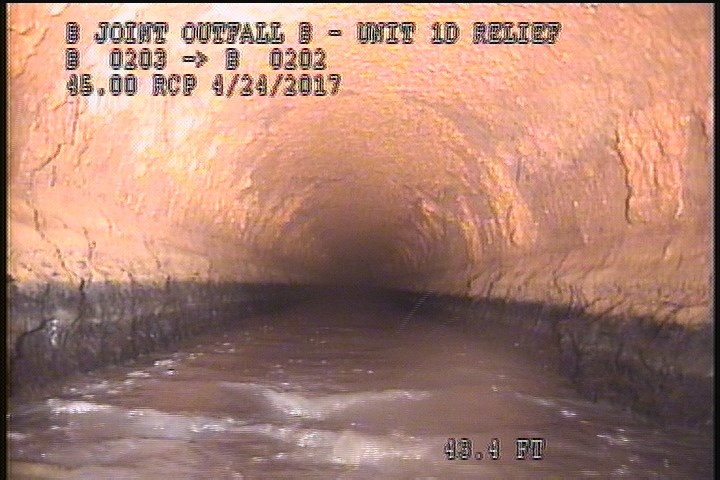

  • General Observation - MAG COAT 70% START

    43.4 ft. - General Observation - MAG COAT 70% START

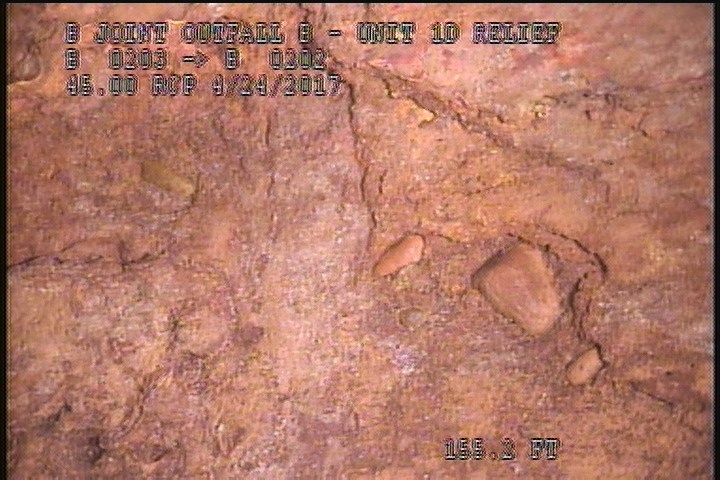

  • Surface Aggregate Visible, from 02 to 03 o'clock, within 8 inches of joint: YES - SPORATIC SEVERE AGG

    155.2 ft. - Surface Aggregate Visible, from 02 to 03 o'clock, within 8 inches of joint: YES - SPORATIC SEVERE AGG

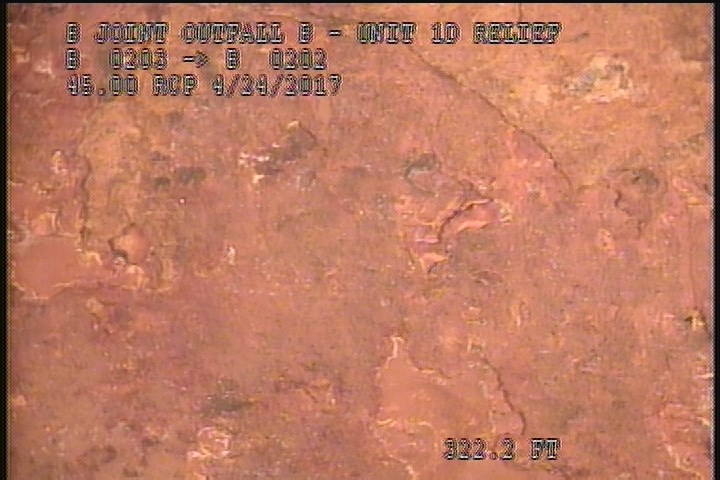

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - FLAKING CONCRETE

    322.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - FLAKING CONCRETE

All inspections of P08700Work order 0624585

Observations (13)

DistanceCodeObservation
429.7AMH3:20AM
429.2MGOMAG COAT 70% FINISH
322.2SSSFLAKING CONCRETE
2SSSBLISTERING FLAKING CONCRETE
2MGOMAG COAT 30% START 8:00 TO 4:00
0MWL—
429.2DAGS—
2DAGS—
43.4MGOMAG COAT 70% START
155.2SAVSPORATIC SEVERE AGG
429.2SSSBLISTERING ,FLAKING CONCRETE
0MWM—
0AMH2:55AM

Properties (6)

custom_field_three
FLAKING CONCRETE-VERY SPORATIC SEVERE AGG
custom_field_two
4
customer
LACSD
datetime
2017-04-24T01:32:29-07:00
documentation
MARTIN,MANANES,REVELES,OLIVER 111
is_lateral_inspection
false
