Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 21, 2017, 10:13 AM

  • 15 0773_15 0772_4212017_033746.mp4

Date
04/21/2017
W/O
0619123
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00593
PipeID
P12974
Time
3:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0502
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20170421MDM_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_2_5
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0772
Downstream MH
15 0773
Dir. of Survey
Upstream
Length Surveyed
72.2 ft.
Total Length
72.2 ft.
Structural Index
3
Structural Quick
4121
Structural Rating
6
O&M Index
4
O&M Quick
4200
O&M Rating
8
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 15 0772 to 15 0773
MH: 15 0772MH: 15 0773upstream0 ft. MSA - Survey Abandoned - 80% ROOTS0.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE SEVERE AGG ATTCHED0.3 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG0.6 ft. RBJ - Roots Ball Joint, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YESR0.6 ft. MGP - General Photograph - 80% ROOTS70.2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG70.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTCHED72.2 ft. AMH - Downstream Manhole, Survey Begins - 3:40AM72.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active72.2 ft. MWL - Water Level, 10 %of cross sectional area72.2 ft. MWM - Water Mark, 50 %of cross sectional area72.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active

Observation photos (4)

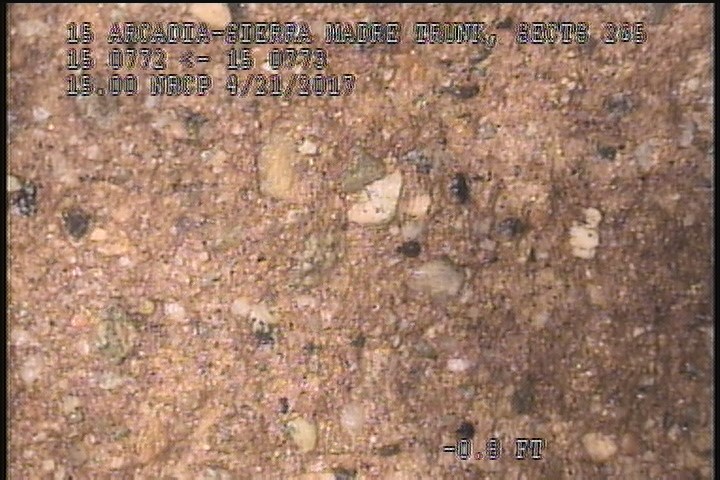

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

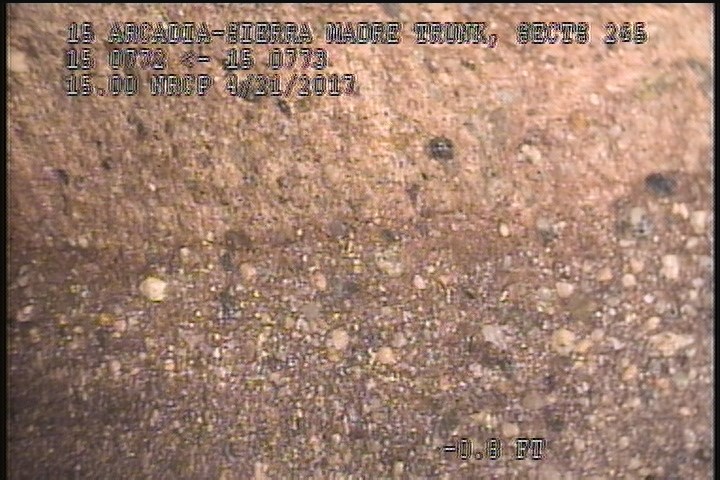

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTCHED

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTCHED

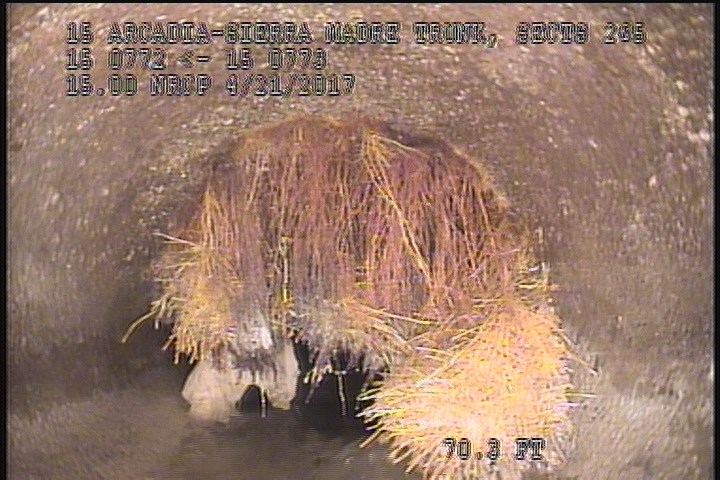

  • Roots Ball Joint, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YESR

    71.6 ft. - Roots Ball Joint, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YESR

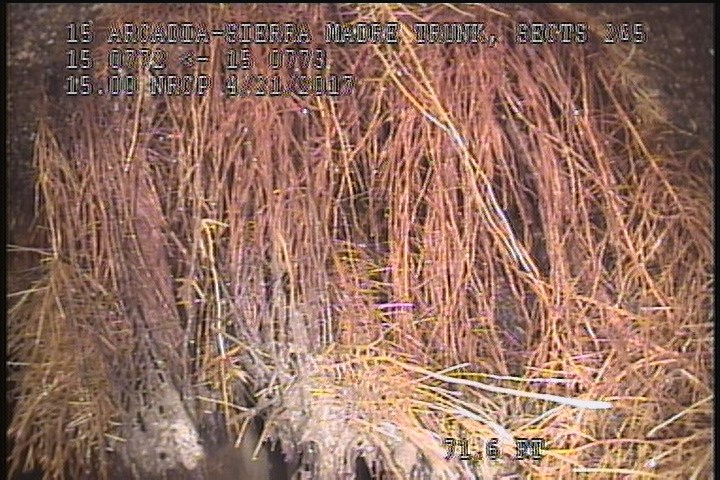

  • General Photograph - 80% ROOTS

    71.6 ft. - General Photograph - 80% ROOTS

All inspections of P12974Work order 0619123

Observations (12)

DistanceCodeObservation
71.9SSSPEELING CONCRETE SEVERE AGG ATTCHED
2SAMSEVERE AGG
71.6RBJ—
71.6MGP80% ROOTS
0AMH3:40AM
0MGOConn. @ Mh, 3 O' Clock. Active
0MWL—
71.9SAMSEVERE AGG
72.2MSA80% ROOTS
0MWM—
0MGOConn. @ Mh, 9 O' Clock. Active
2SSSPEELING CONCRETE SEVERE AGG ATTCHED

Properties (6)

custom_field_three
PEELING CONCRETE SEVERE AGG ATTCHED
custom_field_two
1
customer
LACSD
datetime
2017-04-21T03:13:55-07:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
