Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 21, 2017, 07:44 AM

  • 15 0775_15 0774_4212017_005247.mp4

Date
04/21/2017
W/O
0619123
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00593
PipeID
P12976
Time
12:44 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0501
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20170421MDM_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_2_5
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0774
Downstream MH
15 0775
Dir. of Survey
Upstream
Length Surveyed
141.4 ft.
Total Length
141.4 ft.
Structural Index
3
Structural Quick
4232
Structural Rating
18
O&M Index
4
O&M Quick
4131
O&M Rating
7
Overall Index
3
Overall Quick
—
Overall Rating
25
Pipe schematic from manhole 15 0774 to 15 0775
MH: 15 0774MH: 15 0775upstream0 ft. AMH - Upstream Manhole, Survey Ends{COMPLETED BY REVERESE INSPECTION} - 1:15AM {COMPLETED BY REVERESE INSPECTION0.4 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG0.4 ft. MGP - General Photograph - 80% ROOTS0.4 ft. RBJ - Roots Ball Joint, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YESR0.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE SEVERE AGG ATTCHED7.4 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 5 %, within 8 inches of joint: YESR44 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped45.8 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG47.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped60.5 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE SEVERE AGG ATTACHED101.6 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SLIGHT133.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - SLIGHT139.4 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG139.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED141.4 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active141.4 ft. MWL - Water Level, 10 %of cross sectional area141.4 ft. MWM - Water Mark, 40 %of cross sectional area141.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active141.4 ft. AMH - Downstream Manhole, Survey Begins - 12:45AM

Observation photos (6)

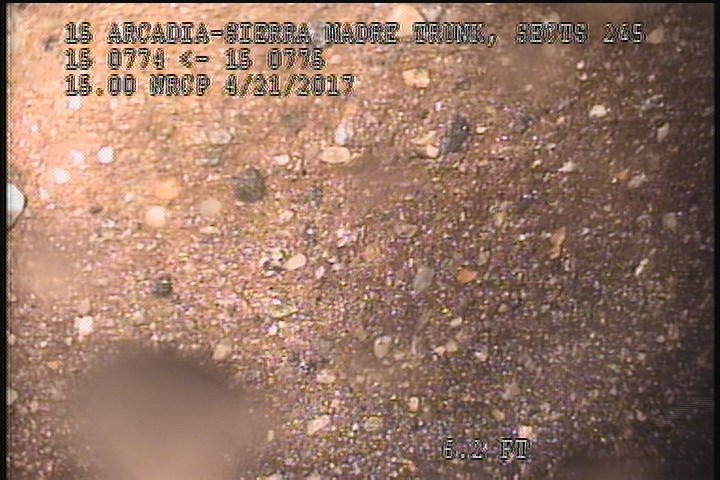

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

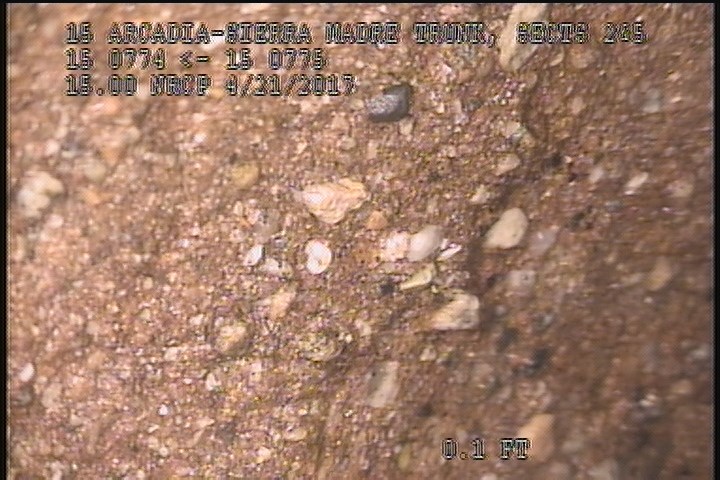

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

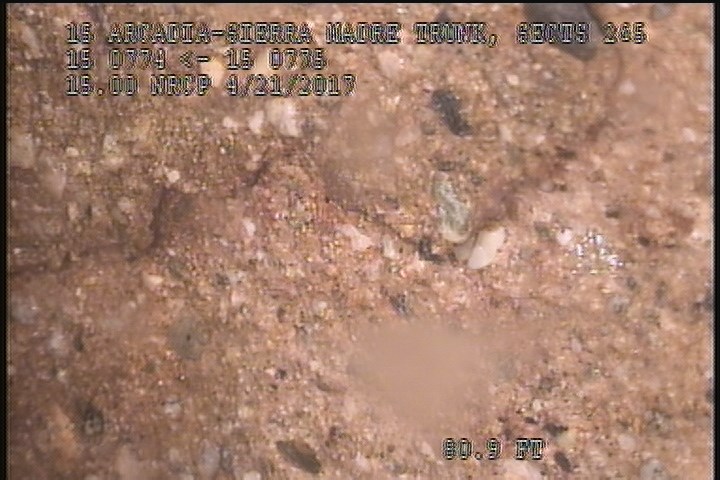

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE SEVERE AGG ATTACHED

    80.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE SEVERE AGG ATTACHED

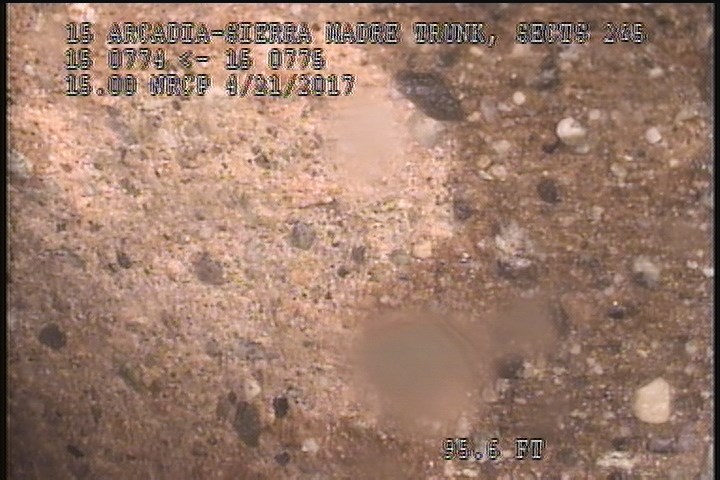

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

    95.6 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG

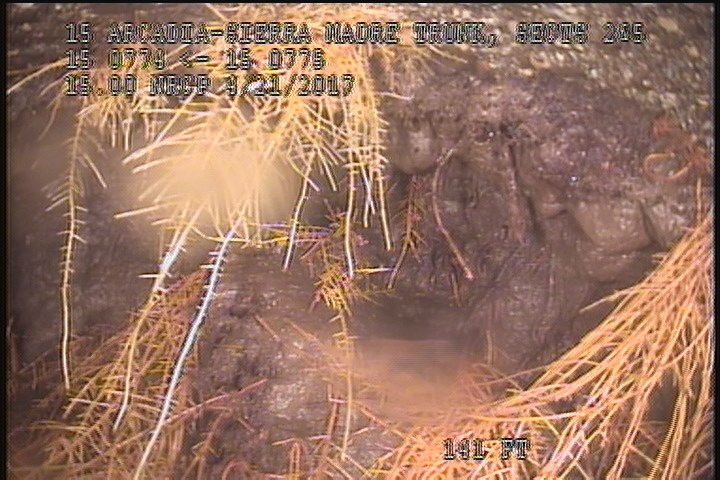

  • General Photograph - 80% ROOTS

    141 ft. - General Photograph - 80% ROOTS

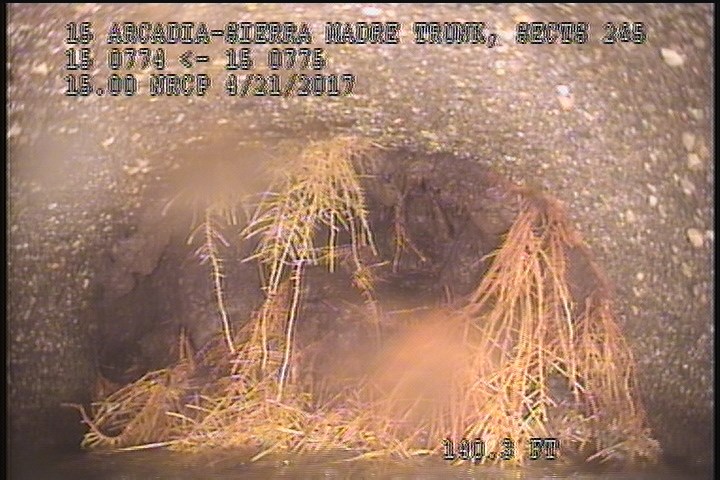

  • Roots Ball Joint, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YESR

    141 ft. - Roots Ball Joint, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YESR

All inspections of P12976Work order 0619123

Observations (19)

DistanceCodeObservation
134RMJ—
0MGOConn. @ Mh, 9 O' Clock. Active
141SAMSEVERE AGG
0MWL—
2SAMSEVERE AGG
39.8FLSLIGHT
97.4TFCCapped
94.1TFCCapped
8FLSLIGHT
80.9SSSPEELING CONCRETE SEVERE AGG ATTACHED
95.6SAMSEVERE AGG
141MGP80% ROOTS
141RBJ—
0MWM—
141SSSPEELING CONCRETE SEVERE AGG ATTCHED
141.4AMH1:15AM {COMPLETED BY REVERESE INSPECTION
0MGOConn. @ Mh, 3 O' Clock. Active
2SSSPEELING CONCRETE SEVERE AGG ATTACHED
0AMH12:45AM

Properties (7)

additional_info
REVERSE INSPECTION
custom_field_three
PEELING CONCRETE SEVERE AGG ATTCHED
custom_field_two
1
customer
LACSD
datetime
2017-04-21T00:44:14-07:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
