Wastewater/Activity/PacpInspection/1.0Aug 19, 2017, 03:20 PM
29 0366_29 0365_8192017_082302.mp4
- Date
- 08/19/2017
- W/O
- 0657414
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z01026
- PipeID
- P24403
- Time
- 8:20 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7496
- Sewer Name
- 29 28TH STREET PUMPING PLANT SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- 20170819DF_28TH_ST_P_P_SEWER
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 29 0366
- Downstream MH
- 29 0365
- Dir. of Survey
- Downstream
- Length Surveyed
- 330.4 ft.
- Total Length
- 330.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (5)

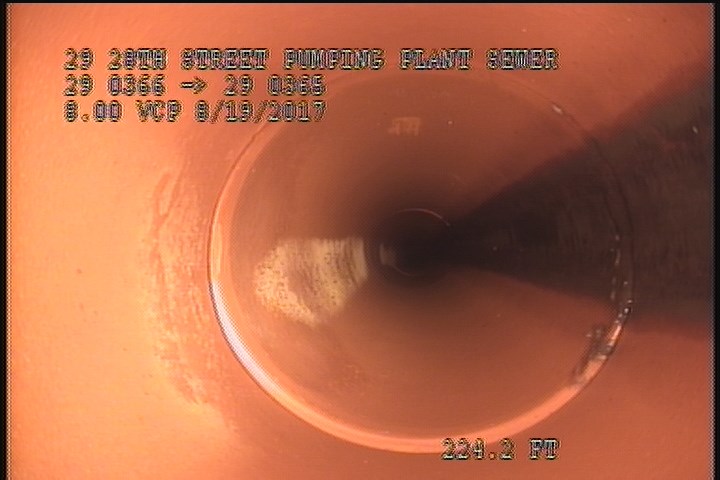

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

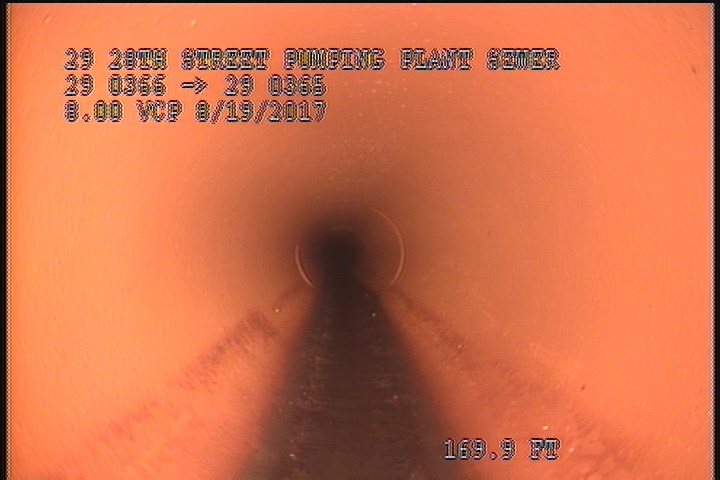

169.9 ft. - General Photograph

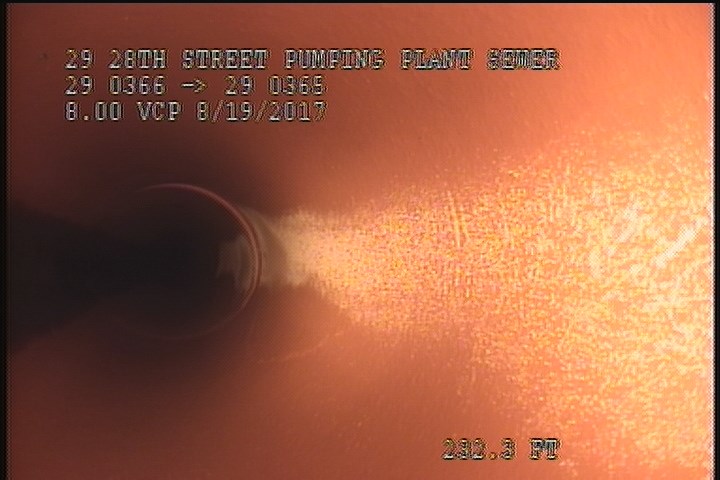

232.3 ft. - General Photograph - SPALLING

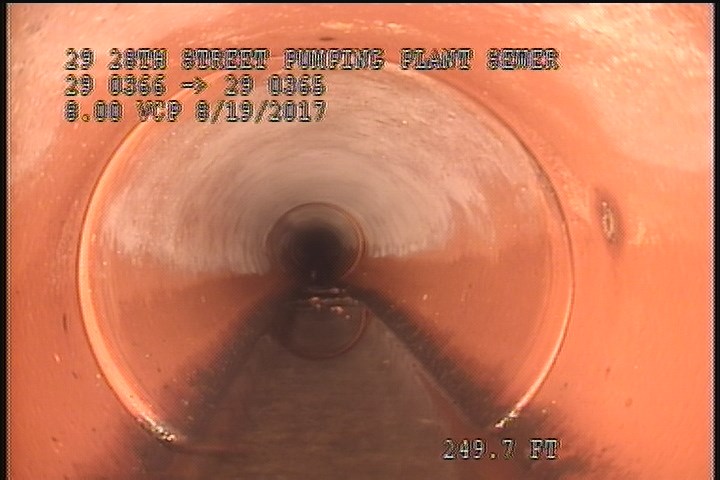

249.7 ft. - General Photograph - SPALLING

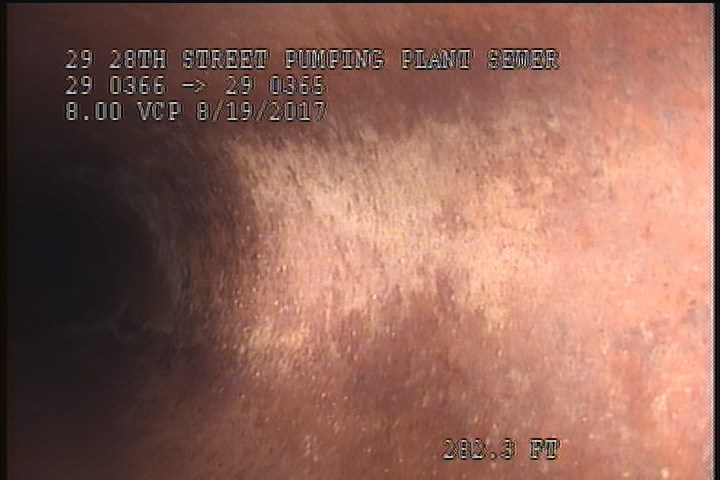

282.3 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 169.9 | MGP | — |
| 2 | SSS | — |
| 330.4 | MGO | Conn. @ Mh, 2 O' Clock. Active |
| 329 | SSS | — |
| 282.3 | MGP | — |
| 232.3 | MGP | SPALLING |
| 249.7 | MGP | SPALLING |
| 0 | MWL | — |
| 329.1 | MGO | Grease Throughout The Reach (5%) |
| 0 | MWM | — |
| 330.4 | AMH | 8:51 AM |
| 0 | AMH | 8:21 AM |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-08-19T08:20:23-07:00
- documentation
- FRANKLIN, BRAR
- is_lateral_inspection
- false
