Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 10:38 AM

  • 01 1343_01 1389_19042017_033914.mp4

Date
04/19/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P22195
Time
3:38 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4433
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 1343
Downstream MH
01 1389
Dir. of Survey
Downstream
Length Surveyed
274.9 ft.
Total Length
274.9 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2J00
O&M Rating
108
Overall Index
2
Overall Quick
—
Overall Rating
111
Pipe schematic from manhole 01 1343 to 01 1389
MH: 01 1343MH: 01 1389downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 01 13430 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3.5 ft. CM - Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES55.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"190.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"216.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"273.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish274.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK274.9 ft. AMH - Downstream Manhole, Survey Ends - 01 1389

Observation photos (3)

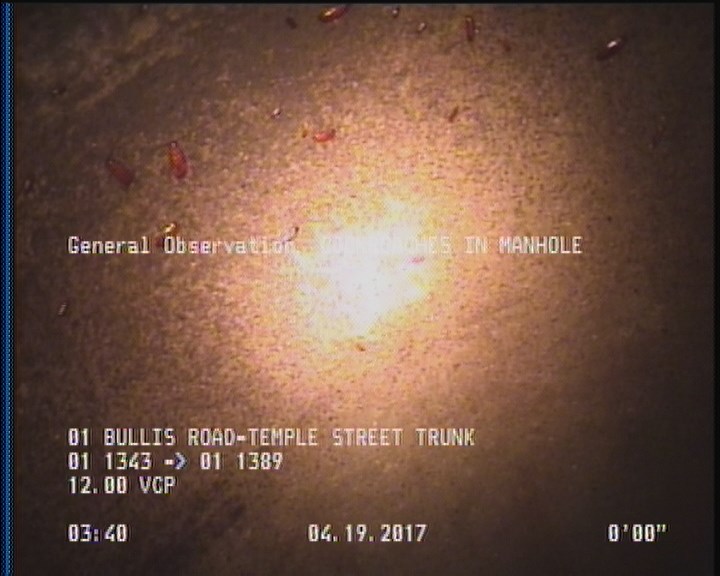

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

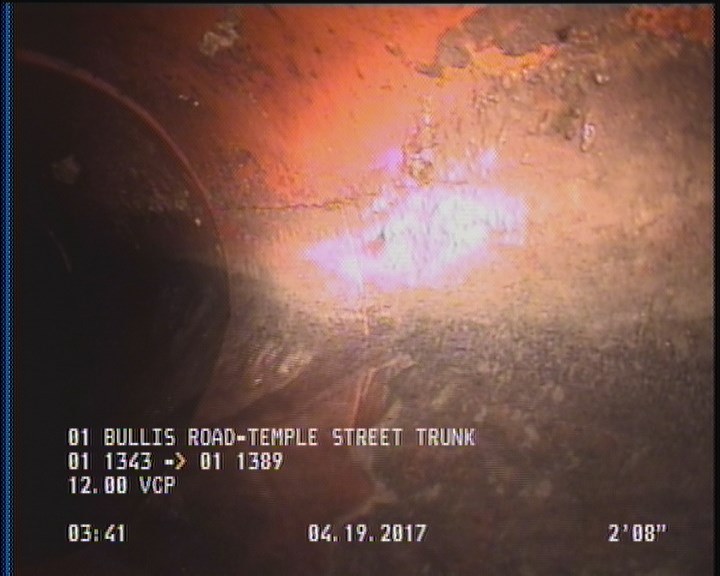

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

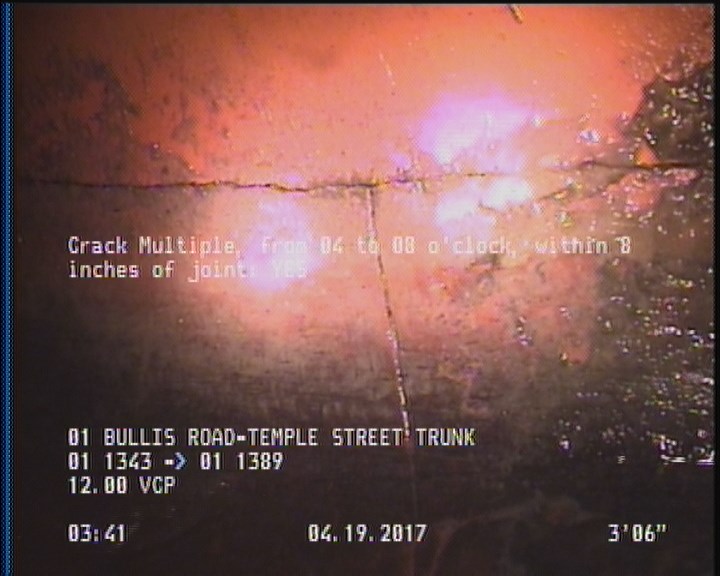

  • Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES

    3.5 ft. - Crack Multiple, from 04 to 08 o'clock, within 8 inches of joint: YES

All inspections of P22195Work order 630043

Observations (12)

DistanceCodeObservation
216.1TFA—
274.9MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0MWL—
55.7TFA—
3.5CM—
0MGOCOCKROACHES IN MANHOLE
0AMH01 1343
274.9AMH01 1389
273.3DAGS—
190.3TFA—
0MWM—
2DAGS—

Properties (7)

additional_info
SC345205
custom_field_two
4
customer
LACSD
datetime
2017-04-19T03:38:14-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
35934
