Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 09:53 AM

  • 01 0806_01 1322_19042017_025332.mp4

Date
04/19/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P01622
Time
2:53 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4433
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
01 0806
Downstream MH
01 1322
Dir. of Survey
Downstream
Length Surveyed
17.4 ft.
Total Length
17.4 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 01 0806 to 01 1322
MH: 01 0806MH: 01 1322downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 08062 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start11.5 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES17.4 ft. MGO - General Observation - COCKROACHES IN MANHOLE17.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish17.4 ft. AMH - Downstream Manhole, Survey Ends - 01 1322

Observation photos (3)

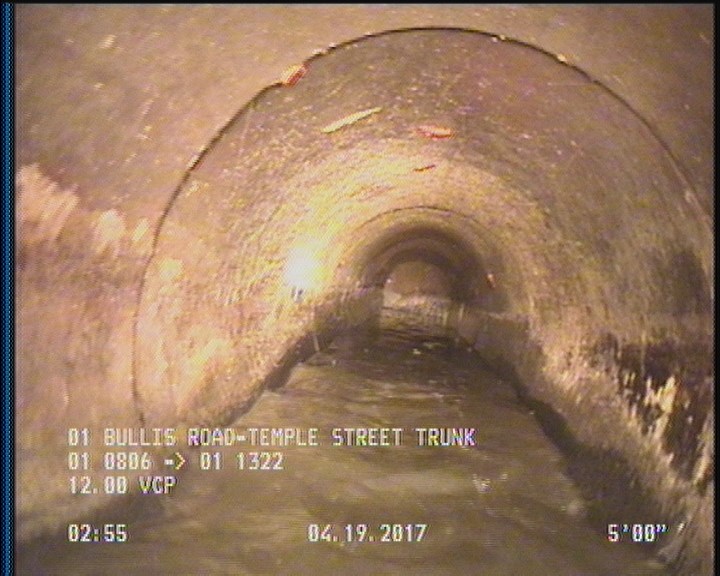

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

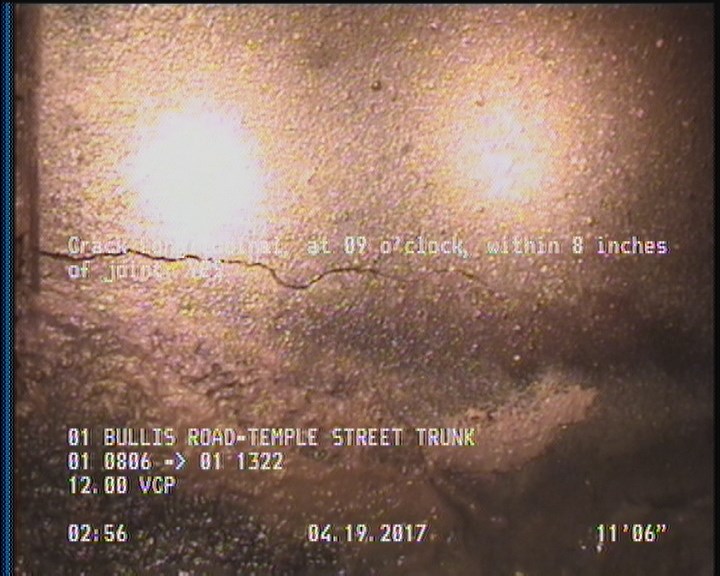

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    11.5 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

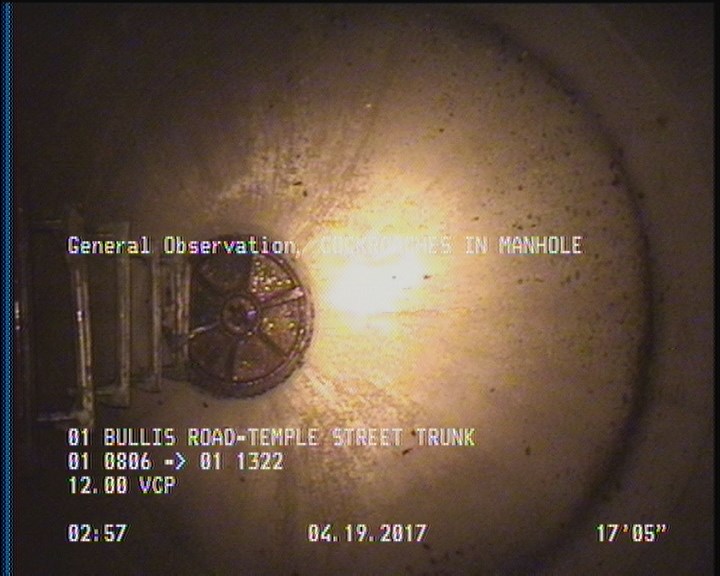

  • General Observation - COCKROACHES IN MANHOLE

    17.4 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P01622Work order 630043

Observations (10)

DistanceCodeObservation
0MWL—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
11.5CL—
17.4MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
0MWM—
2DAGS—
17.4DAGS—
17.4AMH01 1322
0AMH01 0806

Properties (6)

additional_info
SC345205
custom_field_two
4
customer
LACSD
datetime
2017-04-19T02:53:14-07:00
documentation
PRO PIPE
is_lateral_inspection
false
