Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 12, 2017, 05:23 AM

  • 01 1374_01 1373_12042017_014615.mp4

Date
04/11/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P21613
Time
10:23 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4425
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
01 1374
Downstream MH
01 1373
Dir. of Survey
Downstream
Length Surveyed
285.3 ft.
Total Length
285.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2O00
O&M Rating
156
Overall Index
2
Overall Quick
—
Overall Rating
156
Pipe schematic from manhole 01 1374 to 01 1373
MH: 01 1374MH: 01 1373downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 13742 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start175.8 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - DEBRIS284 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish284 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish285.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE285.3 ft. AMH - Downstream Manhole, Survey Ends - 01 1373285.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

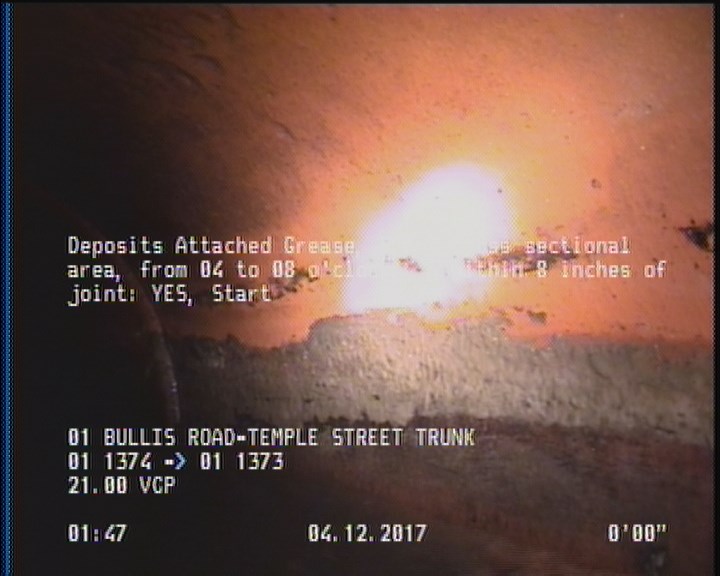

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

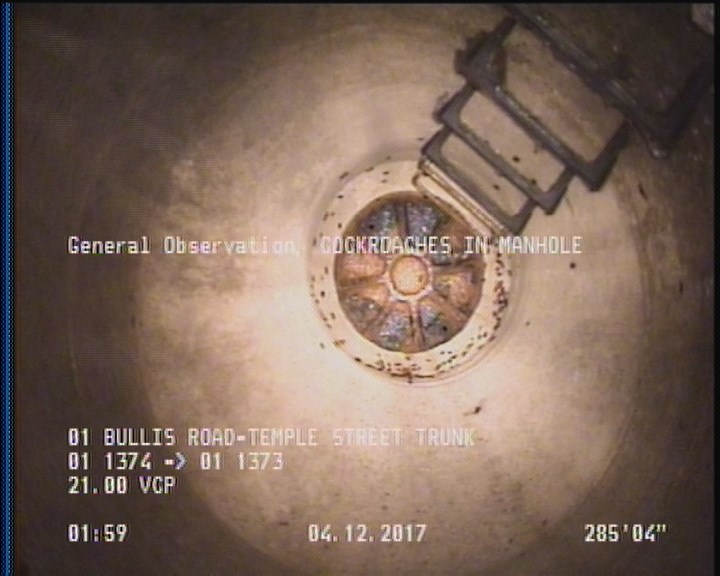

  • General Observation - COCKROACHES IN MANHOLE

    285.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P21613Work order 630043

Observations (10)

DistanceCodeObservation
175.8DSZDEBRIS
285.3MGOCOCKROACHES IN MANHOLE
2DAGS—
285.3AMH01 1373
284DSZ—
0MWL—
284DAGS—
0MWM—
0AMH01 1374
285.3MGOACTIVE CONNECTION AT MH 3 O'CLOCK

Properties (7)

additional_info
SC306994
custom_field_two
4
customer
LACSD
datetime
2017-04-11T22:23:03-07:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
35417
