Wastewater/Activity/PacpInspection/1.0Apr 12, 2017, 09:55 AM
01 0802_01 1375_12042017_025540.mp4
- Date
- 04/12/2017
- W/O
- 630043
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00197
- PipeID
- P21617
- Time
- 2:55 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4425
- Sewer Name
- 01 BULLIS ROAD-TEMPLE STREET TRUNK
- City
- LYNWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_630043_TV01008_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 1375
- Downstream MH
- 01 0802
- Dir. of Survey
- Upstream
- Length Surveyed
- 30.3 ft.
- Total Length
- 30.3 ft.
- Structural Index
- 4
- Structural Quick
- 4600
- Structural Rating
- 24
- O&M Index
- 2
- O&M Quick
- 4126
- O&M Rating
- 16
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 40
Observation photos (2)

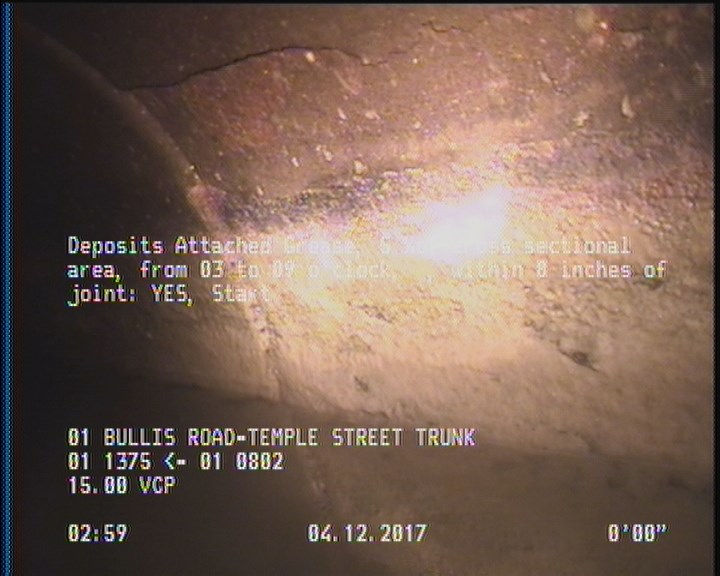

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

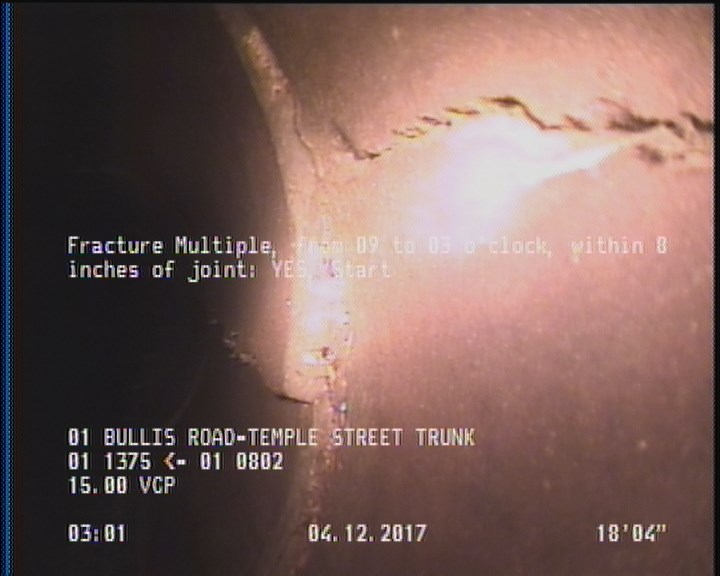

2 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 30.3 | DAGS | — |
| 30.3 | AMH | 01 0802 |
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 30.3 | FM | — |
| 2 | FM | — |
| 0 | AMH | 01 1375 |
Properties (6)
- additional_info
- SC306994
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-04-12T02:55:12-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
