Wastewater/Activity/PacpInspection/1.0Apr 12, 2017, 05:50 AM
01 1353_01 1352_11042017_225050.mp4
- Date
- 04/11/2017
- W/O
- 630043
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00197
- PipeID
- P20019
- Time
- 10:50 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4425
- Sewer Name
- 01 BULLIS ROAD-TEMPLE STREET TRUNK
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_630043_TV01008_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 01 1353
- Downstream MH
- 01 1352
- Dir. of Survey
- Downstream
- Length Surveyed
- 407.3 ft.
- Total Length
- 407.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412O
- O&M Rating
- 166
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 166
Observation photos (1)

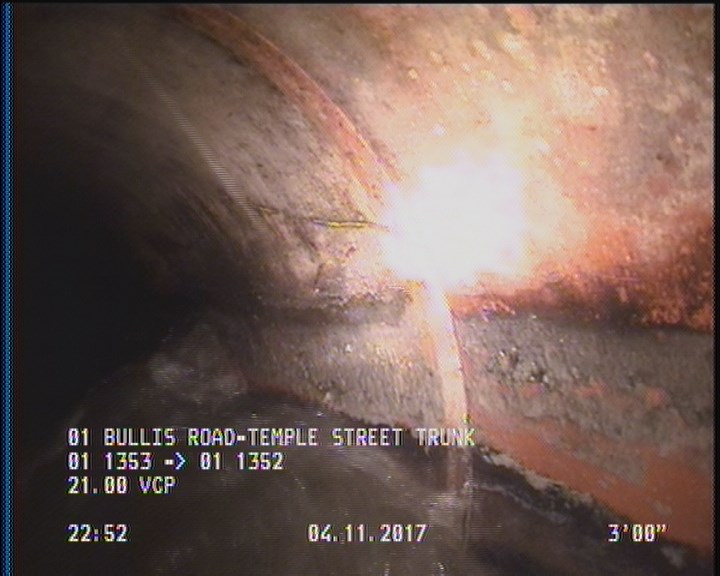

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 405.5 | DAGS | — |
| 407.3 | AMH | 01 1352 |
| 407.3 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 0 | AMH | 01 1353 |
| 0 | MWL | — |
| 40.2 | TBA | — |
Properties (6)
- additional_info
- SC306994
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-11T22:50:29-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
