Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 19, 2017, 05:57 AM

  • 01 0798A_01 0798_18042017_225838.mp4

Date
04/18/2017
W/O
630043
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00197
PipeID
P01501
Time
10:57 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4433
Sewer Name
01 BULLIS ROAD-TEMPLE STREET TRUNK
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
WO_630043_TV01008_APR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0798A
Downstream MH
01 0798
Dir. of Survey
Downstream
Length Surveyed
291.3 ft.
Total Length
291.3 ft.
Structural Index
4
Structural Quick
4J00
Structural Rating
228
O&M Index
2
O&M Quick
412K
O&M Rating
121
Overall Index
3
Overall Quick
—
Overall Rating
349
Pipe schematic from manhole 01 0798A to 01 0798
MH: 01 0798AMH: 01 0798downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 0798A0 ft. MWL - Water Level, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start13.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"37.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"39.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"61.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"78.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"87.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"111.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"126.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"138.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"162.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"171.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"192.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"206.2 ft. RFJ - Roots Fine Joint, from 09 to 10 o'clock, within 8 inches of joint: YESR220.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"244.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"265.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"290.3 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish290.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish291.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK291.3 ft. AMH - Downstream Manhole, Survey Ends - 01 0798

Observation photos (3)

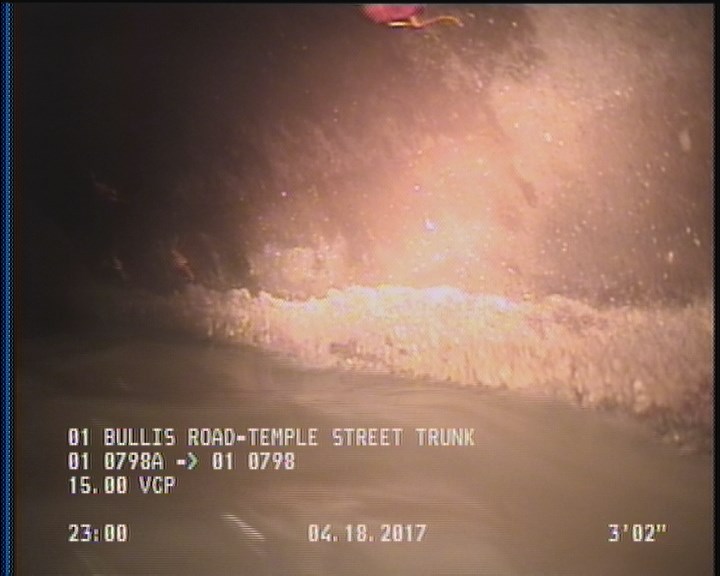

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

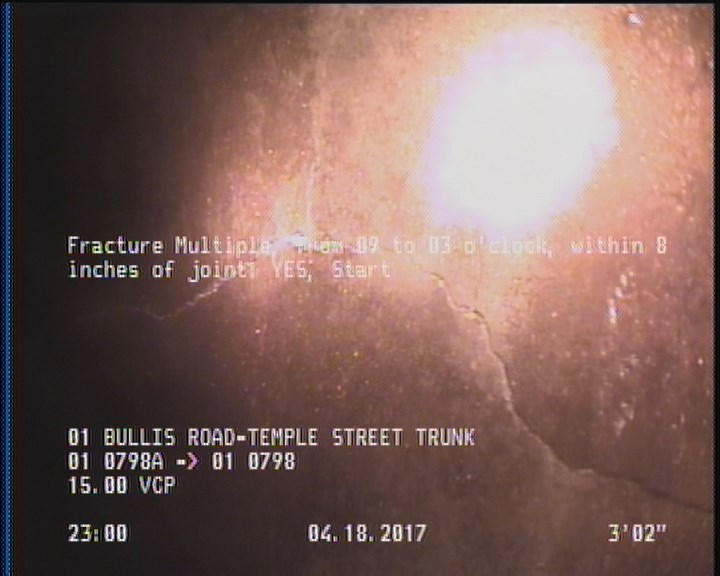

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

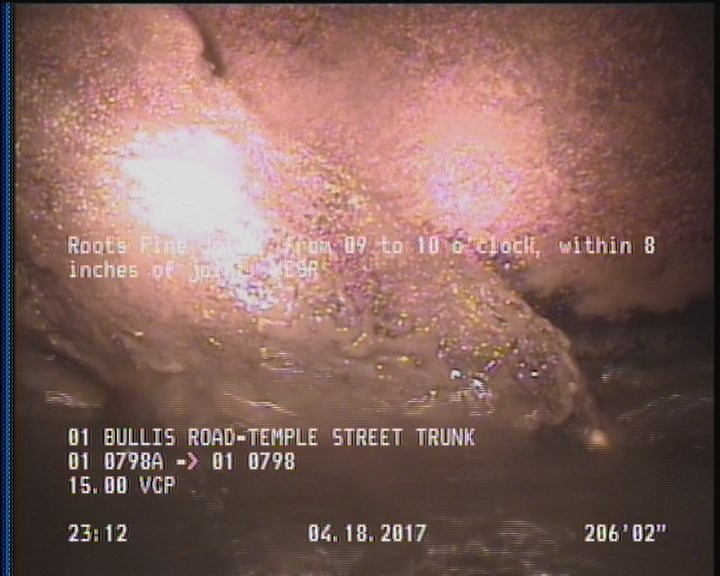

  • Roots Fine Joint, from 09 to 10 o'clock, within 8 inches of joint: YESR

    206.2 ft. - Roots Fine Joint, from 09 to 10 o'clock, within 8 inches of joint: YESR

All inspections of P01501Work order 630043

Observations (25)

DistanceCodeObservation
0MWM—
37.6TFC—
192.3TFC—
162.6TFC—
171.2TFC—
61.3TFC—
244.3TFC—
0AMH01 0798A
78.9TFC—
0MWL—
291.3MGOACTIVE CONNECTION AT MH 3 O'CLOCK
87.6TFC—
290.3FM—
111.5TFC—
3.1FM—
265.4TFC—
220.1TFC—
290.3DAGS—
138.5TFC—
2DAGS—
291.3AMH01 0798
126.6TFC—
206.2RFJ—
13.6TFC—
39.9TFC—

Properties (6)

additional_info
SC345205
custom_field_two
3
customer
LACSD
datetime
2017-04-18T22:57:54-07:00
documentation
PRO PIPE
is_lateral_inspection
false
