Wastewater/Activity/PacpInspection/1.0Apr 18, 2017, 10:40 AM
01 1388_01 1387_18042017_034126.mp4
- Date
- 04/18/2017
- W/O
- 630043
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00197
- PipeID
- P22193
- Time
- 3:40 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4432
- Sewer Name
- 01 BULLIS ROAD-TEMPLE STREET TRUNK
- City
- LYNWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_630043_TV01008_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 1388
- Downstream MH
- 01 1387
- Dir. of Survey
- Downstream
- Length Surveyed
- 242.6 ft.
- Total Length
- 242.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2I00
- O&M Rating
- 96
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 96
Observation photos (1)

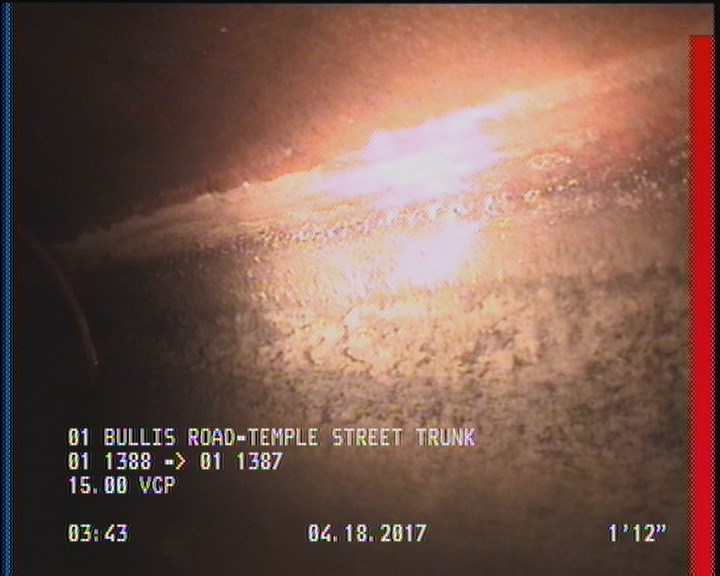

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 88.5 | TFA | — |
| 2 | DAGS | — |
| 239.7 | DAGS | — |
| 112 | TFA | — |
| 0 | MWL | — |
| 185 | TFA | — |
| 0 | AMH | 01 1388 |
| 242.6 | AMH | 01 1387 |
| 237.2 | TFA | — |
| 242.6 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
Properties (7)
- additional_info
- SC345204
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-04-18T03:40:44-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 35934
